HDI PCB Technology
SPCB008
HDI PCB with ENIG Surface Technology, hdi pcb immersion gold circuit pcb, High frequency circuit board manufacturing, HDI pcb board manufacturer, FR4 Multilayer Circut Board with Immersion Gold HDI PCB supplier for multi layers PCB and HDI printed circuit board with immersion gold, China oem hdi pcb manufacturer.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Welcome to XingDa Electric Technology Co.,Ltd
Our PCB Manufacturing Services
-High quality PCB manufacturing
-Military, space and commercial applications
-Wide array of substrates
-Small prototype runs
-Large scale production runs
-ENIG, Immersion Silver, Lead Free HASL
-Edge plating, plated slots
-Blind / Buried vias
-Fast turn times
-Reasonable prices!
Our Factory PCB Manufacture Capability
1)Board Material FR-4
2)Layer 1-20
3)Finished Board thickness 0.2 mm-3.8mm ( 8 mil-150 mil )
4)Board Thickness Tolerance ±10%
5)Copper thickness 0.5 OZ--2.0OZ
6)Impedance Control YES
7)Hole tolerance PTH:±0.075mm NPTH: ±0.05mm
8)Min drilled Hole size 0.15mm(6mil)
9)Min Laser hole size 0.1mm(4mil)
10)Min Space Width 0.075mm (3 mil)
11)Min Trace Width 0.075mm(3mil)
12)BGA Pitch 0.2 mm (8 mil)
13)Solder mask Color Green , Red , Blue , Black , White
14)Panel Outline Tol (+/-) CNC: ±0.125mm, Punching: ±0.15mm
15)Surface finish/treatment HASL/HASL lead free , Immersion Gold
16)Certificate ROHS, ISO9001:2008, SGS, UL certificate

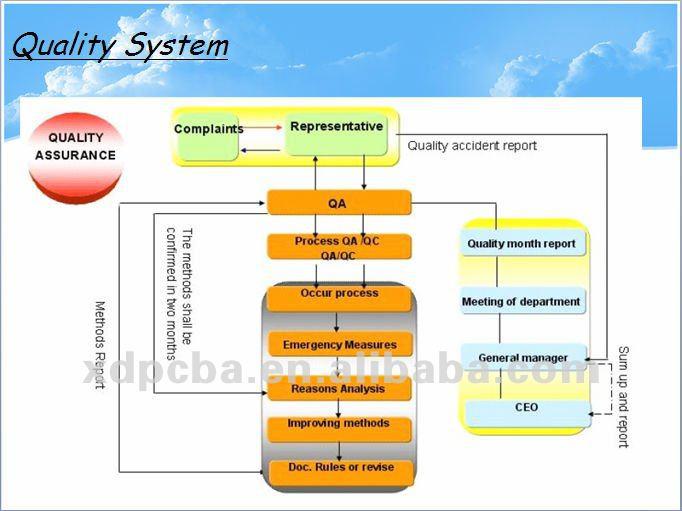

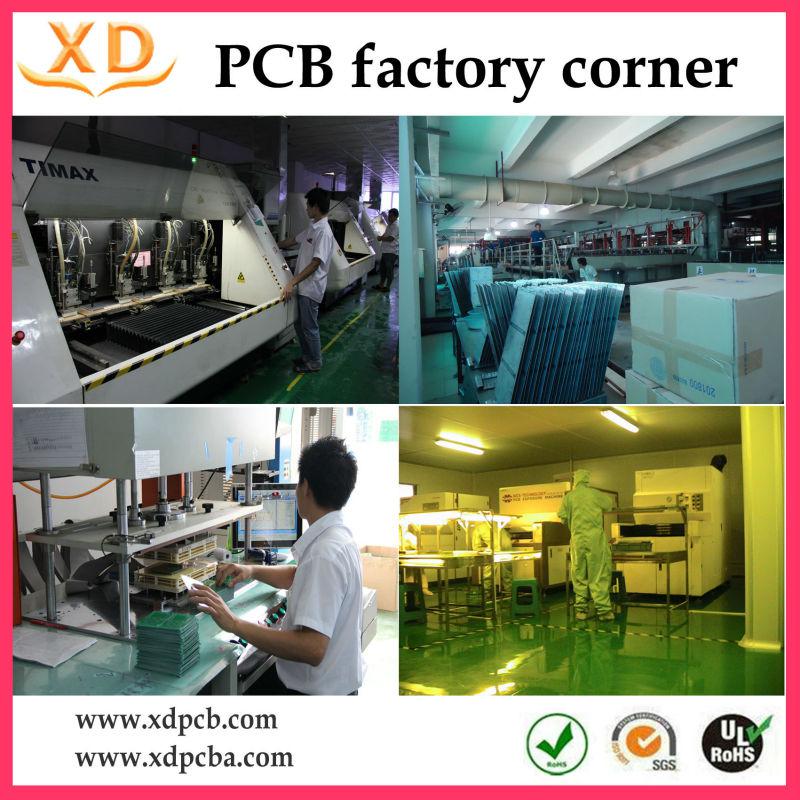

Quality System & Our PCB Factory Corner
Packaging & Shipping
