Edge Plating PCB Board

SPCB001
Our factory is engaged in PCB manufacturing and offering customized 8 layers 1.6mm fr4 pcb with gold plating on board edge for connecting at competitive price. High reliability, strong diversity and expert advice are our characteristics. Please contact us if you have inquiry.
Quantity:
0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Specifications of PCB:

Material

FR-4, FR-2, aluminum，

Finish Board Thickness

0.2 mm-6.00mm(8mil -126mil)Surface Finish

Surface Finish

Gold finger, Immersion Gold, Plating

Gold, HASL, OSP

Shape

Routing、Punch、V-cut、Chamfer

Surface Treatment

Solder Mask(black, green, white, red, blue, thickness>=12um, Block,

BGA)

Silkscreen(black, yellow, white)

Peel able-mask(red, blue, thickness>=300um)

Copper Thickness

1/2 oz min; 12oz max

Min Trace Width & Line Spacing

0.075mm /0.075mm (3mil/3mil)

Min Hole Diameter for CNC Drilling

0.1mm(4mil)

Min Hole Diameter for Punching

0.6mm(35mil)

Biggest panel size

610mm * 508mm

Hole Diameter(H)

PTHL:+/-0.075mm(3mil)

Non PTHL:+/-0.05mm(2mil)

Outline Tolerance

+/-0.1mm (4mil) CNC Routing +/-0.1mm(5mil) CNC Routing

Warp & Twist

0.70%

Insulation Resistance

10Kohm -20Mohm

Conductivity

<50ohm

Products description:

Edge plating PCB: Edge plating PCB is used for technical features of the later assembly. Portions of the printed circuit’s contour but also partial areas within the circuit board can be metallized. The outer contours to be metallized which must be milled before the PTH process, as the metallization of the edges takes place during this procedure. After the deposition of copper, the intended surface finish is finally applied to the edges.

Products specification:

Layers: 8

Material /Laminate: FR4 TG170

Board thickness: 1.6mm

Copper weight: inner & outer 1oz

Finishing: ENIG

Some Relevant PCB Pictures:

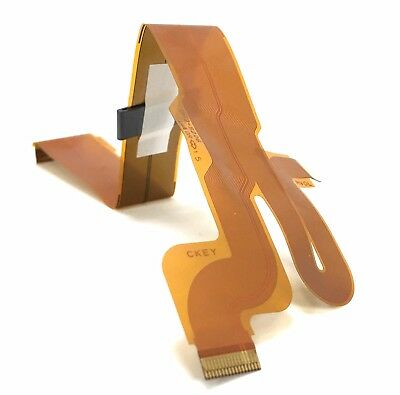

th (5)th (12)th (4)2L-0-15mm-fpc-with-1-OZ (2)th (7)th (2)th (11)

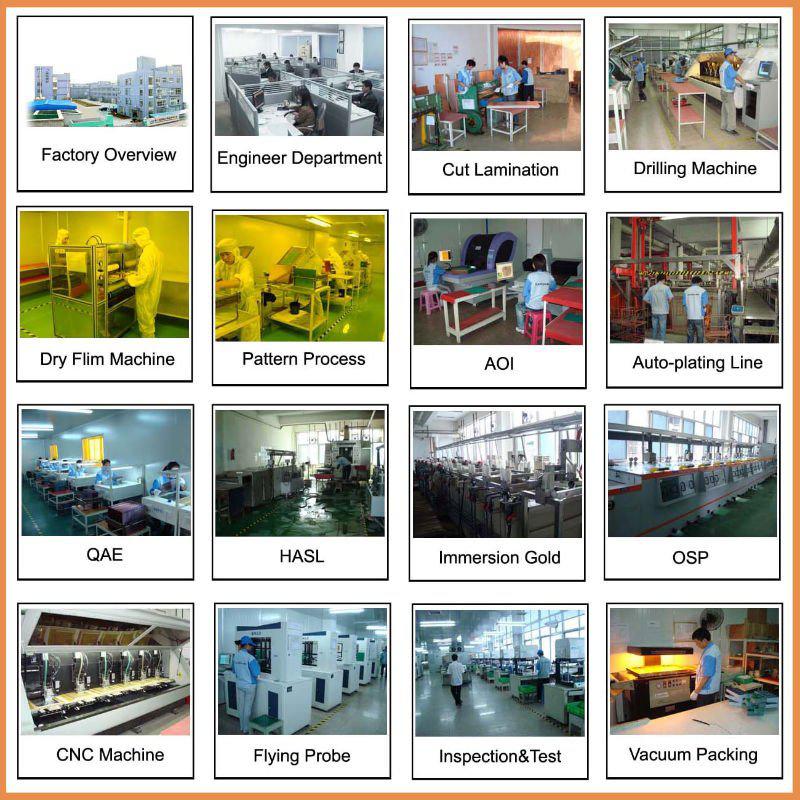

PCB Workshop:

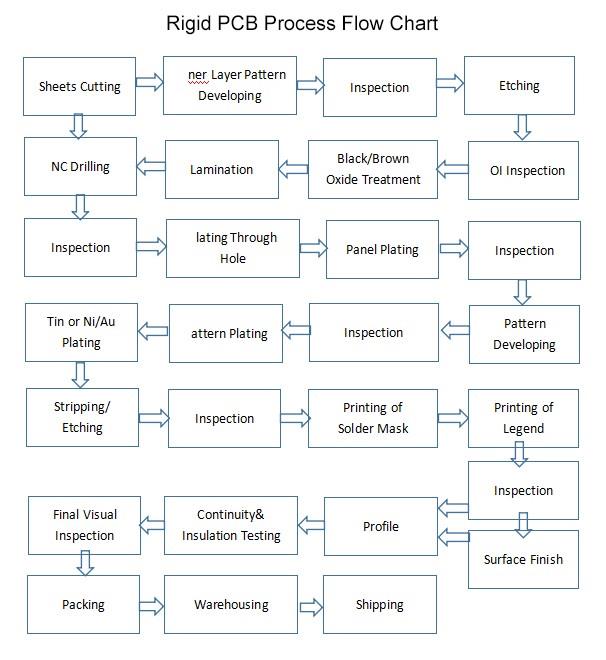

Production process of PCB:

rigid

Why choose us:

The fast delivery

We have our own PCB factory and SMT factory, stable and fast supply capacity, no matter production or proofing can quickly send products to your hands.

Are of good quality

The company has a professional quality control team, and has obtained relevant quality certification, quality is good and reliable;

Technology is preferred

There are many senior software and hardware engineers, trying to provide you with the best quality products.
