Fr4 HDI Washing Machine Single-sided PCB

XDPCB284
XINGDA Electric offers fr4 hdi washing machine single-sided pcb here. As one of the leading fr4 hdi washing machine single-sided pcb manufacturers and suppliers in China, our factory also provides customized service, OEM and ODM service. Welcome to contact us for details.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB

front desk.png

Welcome to XingDa Electric Technology Co.,Ltd

Xindaxing Electric Technology Co.,LTd

One-stop  OEM ODM  PCBA manufacturer

 We are professional  manufacturer in  various PCB and PCBA with many 10 experience,We can provide a reasonable price with high quality products.

Our Services

We can provide one-stop service:

1. PCB circuit boards.

2. E-test.

3.Electronic components purchasing.

4. PCB assembly: available on SMT, BGA, DIP.

5. PCBA function test.

6. Enclosure assembly.

PCB Manufcture Capacity

Item

Specification

Numbr of Layer

1-38Layers

Material

FR-4,FR2.Taconic,Rogers, CEM-1 CEM-3,ceramic , crockery Metal-backed Laminate

Finish Board Thickness

0.2mm-6.00 mm(8mil-126mil)

Minimun Core Thickness

0.075mm(3mil)

Copper Thickness

1/2 oz min;12 oz max

Min.Trace Width & Line Spacing

0.075mm/0.1mm(3mil/4mil)

Min.Hole Diameter for CNC Driling

0.1mm(4mil)

Min.Hole Diameter for punching

0.9mm(35mil)

Biggest panel size

610mm*508mm

Hole Positon

+/-0.075mm(3mil) CNC Driling

Conductor Width(W)

0.05mm(2mil)or;+/-20% of original artwork

Hole Diameter(H)

PTH L:+/-0.075mm(3mil);Non-PTH L:+/-0.05mm(2mil)

Outline Tolerance

0.125mm(5mil) CNC Routing;+/-0.15mm(6mil) by Punching

Warp & Twist

0.70%

Insulation Resistance

10Kohm-20Mohm

Conductivity

<50ohm

Test Voltage

10-300V

Panel Size

110×100mm(min);660×600mm(max)

Layer-layer misregistration

4 layers:0.15mm(6mil)max;6 layers:0.25mm(10mil)max

Min.spacing between hole edge to circuity pqttern of an inner layer

0.25mm(10mil)

Min.spacing between board oulineto circuitry pattern of an inner layer

0.25mm(10mil)

Board thickness tolerance

4 layers:+/-0.13mm(5mil);6 layers:+/-0.15mm(6mil)

Impedance Control

+/-10%

Different Impendance

+-/10%

Technical



1).Professional surface mounting and through hole soldering technology;

2).Various sizes,like 1206,0805,0603,0402,0201 components SMT  technology;

3).X-ray ICT(In Circuit Test),FCT(Functional Circuit Test)  technology;

4).Nitrogen gas reflow soldering  technology for SMT;

5).High standard SMT&Solder Assembly line;

6).High density interconnected board placement technology capacity.

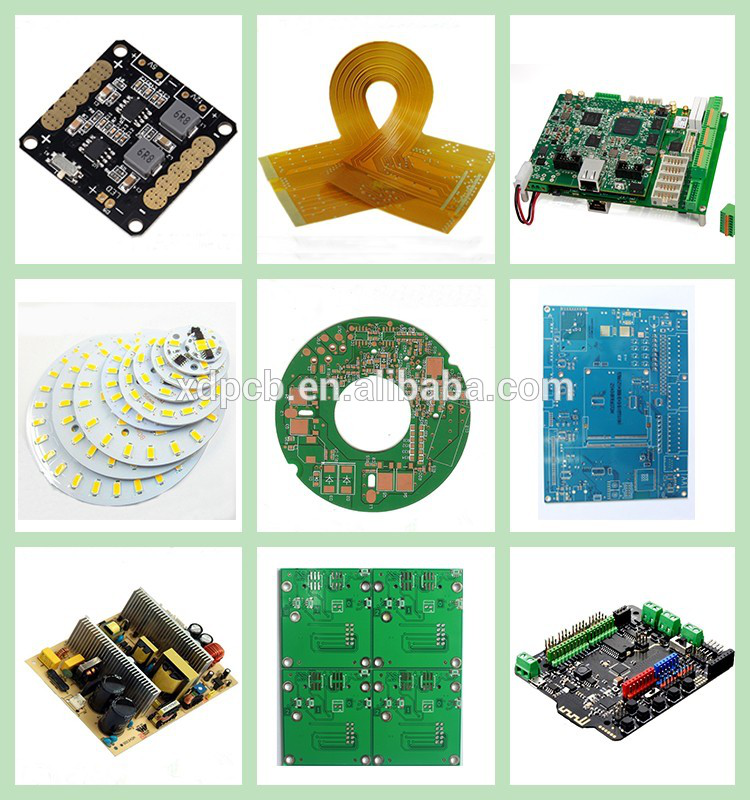

Related Products



10 years focus on high quality PCB, FPC and PCBA!

 Related products.png

Company Information

XingDa Electric Technology Co.,Ltd.,is located in Shenzhen, was established in

2011 with more than 200 employees, is a professional manufacturer of PCB, FPC

and PCBA(PCB+components+assembly).

View of Factory

 View of factory.png

Customer visiting

customer visiting.png

Exhibition Show:

exhibition show.png

FAQ

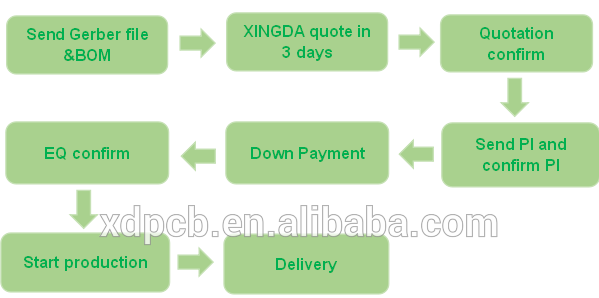

How to work with us?

how to work with us.png

Q1:Are you a factory or trade company?

A: XingDa is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBs Board for 6 years.



Q2:Is my PCB file safe if I send it to you for manufacturing?

A: We respect customer's design authority and will never manufacture PCB for someone else without  your permission. NDA is acceptable.



Q3:Can you copy PCB samples without Gerber file?

A: Yes, we can clone the PCB according to your samples.



Q4:What payment do you accept ?

A: TT/ Western Union/ Paypal/

Q5: What's your shipping way ?

A: 1. We have our own forwarder to ship goods by   DHL, UPS, FEDEX, TNT,EMS.

     2. If you have your own forwarder, we can cooperate with them.



Q6: How about the MOQ?

A: For PCB: 1 pcs

    For PCBA: 1000pcs



Q7: What's your main market?

 A:Europe, USA, Brazil, Russia, Turkey, , Austrialia, Singapore...

Packaging & Shipping

packing and shiping .png
