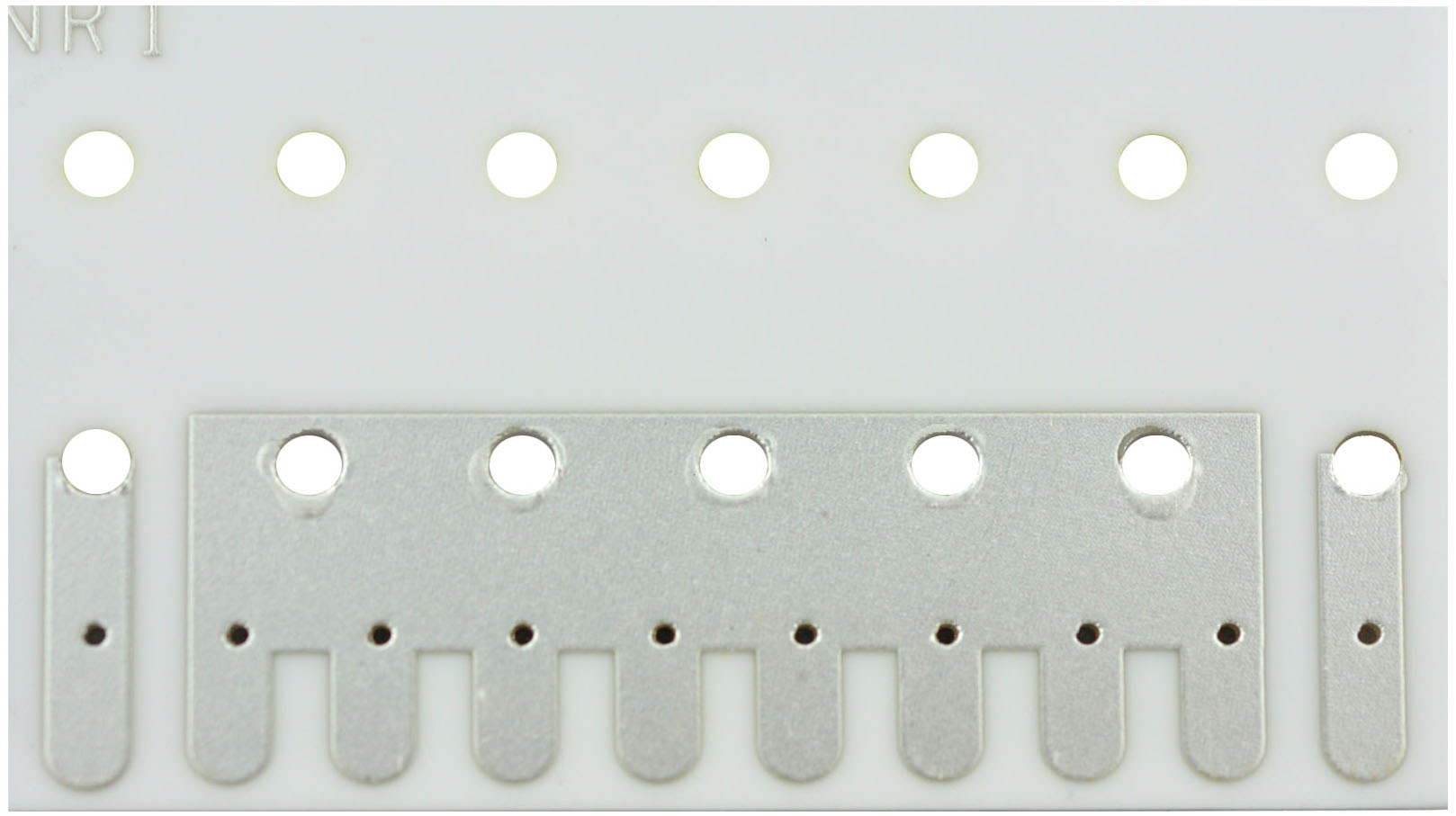

95 alumina ceramic substrate

Ceramic alumina substrate PCB manufacturer

XDPPCB22
Xin Da offers ceramic printed circuit boards for your PCB needs. Many users of printed circuit boards find ceramic boards have an advantage over traditional boards made of other materials. This is because they provide suitable substrates for electronic circuits that have a high thermal conductivity and a low expansion coefficient (CTE). The multilayer ceramic PCB is extremely versatile and can replace a complete traditional printed circuit board with a less complex design and increased performance. You can use them for high-power circuits, chip-on-board modules, proximity sensors and more.
Quantity:
0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Ceramic Printed circuit board (Ceramic PCB) includes Alumina (Al2O3) PCB, Aluminum Nitride (AIN)  PCB with high pressure, high insulation, high frequency, high temperature, and high reliable and minor volume electronic products, so Ceramic PCB will be your best choice.

Why Ceramic PCB has such excellent performance? You can have a brief view on its basic structure and then you will understand.

  • 96% or 98% Alumina (Al2O3), Aluminum Nitride (AIN), or Beryllium Oxide (BeO)
  • Conductors material: For thin, thick film technology, it’ll be silver palladium (AgPd), gold pllladium (AuPd); For DCB (Direct Copper Bonded) it’ll be copper only
  • Application temp: -55~850C
  • Thermal conductivity value: 20W~51W/m-K (Al2O3); 120W~220W/m-K for AIN , 220~250W/m-K for BeO;
  • Max compression strength: >7,000 N/cm2
  • Breakdown Voltage (KV/mm): 15/20/28 for 25mm/0.63mm/1.0mm respectively
  • Thermal expansion conefficient(ppm/K): 7.4 (under 50~200C)

Our Ceramic PCB capability:

Material :
AL203 ceramic (thickness in more than 2.0mm, need to be customized)” 0.25mm 114*114mm
0.38mm 130*140mm
0.5mm 130*140mm
0.635mm 130*140mm
0.8mm 130*109mm
1.0mm 130*140mm
1.2mm 130*109mm
1.5mm 127*127mm
2.0mm 130*140mm
Above is regular size,and other sizes can be customized, the maximum size we can do is 300*300mm.

Contact Xing Da for Your Ceramic Circuit Boards Today

For ceramic printed circuit boards, metal core PCBs, flexible circuit boards or other PCB products, Xing Da is the company to contact. Our commitment to quality assurance and customer service are unparalleled, and we have the facilities and experience to be your only printed circuit board supplier. We offer no minimum orders and prompt delivery. To learn more or for a free quote, contact Xing Da today.
