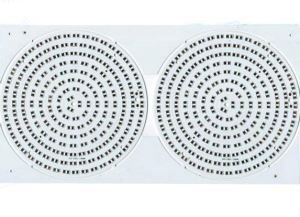

Pottery Impedance PCB

XDPPCB1
Many users of printed circuit boards find ceramic PCBs have an advantage over traditional boards made of other materials. This is because they provide suitable substrates for electronic circuits that have a high thermal conductivity and a low expansion coefficient (CTE). The multilayer ceramic PCB is extremely versatile and can replace a complete traditional printed circuit board with a less complex design and increased performance.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Apart from MCPCB, if you want to use PCB in high pressure, high insulation, high frequency, high temperature, and high reliable and minor volume electronic products, then Ceramic PCB will be your best choice.

Why Ceramic PCB has such excellent performance? You can have a brief view on its basic structure and then you will understand.

  • 96% or 98% Alumina (Al2O3), Aluminum Nitride (AIN), or Beryllium Oxide (BeO)
  • Conductors material: For thin, thick film technology, it'll be silver palladium (AgPd), gold pllladium (AuPd); For DCB (Direct Copper Bonded) it'll be copper only
  • Application temp: -55~850C
  • Thermal conductivity value: 24W~28W/m-K (Al2O3); 150W~240W/m-K for AIN , 220~250W/m-K for BeO;
  • Max compression strength: >7,000 N/cm2
  • Breakdown Voltage (KV/mm): 15/20/28 for 0.25mm/0.63mm/1.0mm respectively
  • Thermal expansion conefficient(ppm/K): 7.4 (under 50~200C)

According to different manufacturing method, current there're three basic types for ceramic board:

A) Thick Film Ceramic Board

Thick Film Ceramic PCB: Using this technology, the thickness of conductor layer exceeds 10 micron, more thick than spurting technology. The conductor is silver or gold palladium, and was printed on ceramic substrate.

B) Thin Film Ceramic Board

Thin Film Technology Ceramic PCB: Because the thickness of electric resistance and conductor film less than 10 micron, and that film was spurting on ceramic substrate, so named thin film ceramic board.

C) DCB Ceramic Board

DCB (Direct Copper Bonded) technology denotes a special process in which the copper foil and the core (Al2O3 or AIN), on one or both sides, are directly bonded under appropriate high temperature and pressure.

Application of Ceramic PCB
  • high-accuracy clock oscillator, voltage controlled oscillator (VCXO), temperature compensated crystal oscillators (TCXOs), oven controlled crystal oscillators (OCXOs);
  • emiconductor cooler;
  • electric power electronic control module;
  • high insulation & high pressure device;
  • high temperature (up to 800C)
  • high power LED
  • High Power semiconductor modules
  • solid state relay (SSR)
  • DC-DC module power sources
  • electric power transmitter modules
  • Solar-panel arrays
