assembly printed circuit board

Zirconia Toughened Alumina Copper Lamination Solar Cells Pottery Printed Circuit Board Assembly

XDPPCB2
Our services One-stop OEM ODM PCB/ PCBA manufacturer We are professional manufacturer in various Ceramic PCB/PCBA and Carbon PCB/PCBA with 9 years experience, we can provide a reasonable price with high quality products. Packaging&Shipping
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details
Our services
One-stop  OEM ODM PCB/PCBA manufacturer
We are professional manufacturer in various Ceramic PCB/PCBA with 10 years experience, we can provide a reasonable price with high quality products.

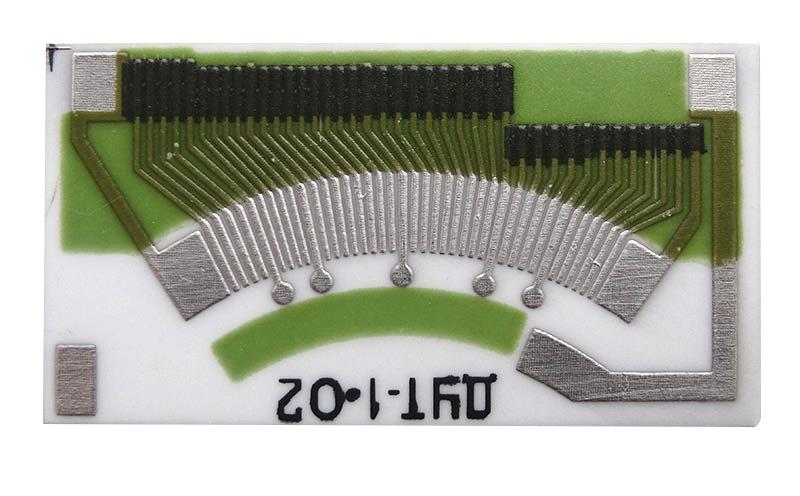

Why Ceramic PCB has such excellent performance?
You can have a brief view on its basic structure and then you will understand.
96% or 98% Alumina (Al2O3), Aluminum Nitride (AIN), or Beryllium Oxide (BeO)
Conductors material: For thin, thick film technology, it'll be silver palladium (AgPd), gold pllladium (AuPd); For DCB (Direct Copper Bonded) it'll be copper only
Application temp: -55~850C
Thermal conductivity value: 24W~28W/m-K (Al2O3); 150W~240W/m-K for AIN , 220~250W/m-K for BeO;
Max compression strength: >7,000 N/cm2
Breakdown Voltage (KV/mm): 15/20/28 for 0.25mm/0.63mm/1.0mm respectively
Thermal expansion conefficient(ppm/K): 7.4 (under 50~200C)

Application of Ceramic PCB:
High-accuracy clock oscillator, voltage controlled oscillator (VCXO), temperature compensated crystal oscillators (TCXOs), oven controlled crystal oscillators (OCXOs);
emiconductor cooler;
electric power electronic control module;
high insulation & high pressure device;
high temperature (up to 800C)
high power LED
High Power semiconductor modules
solid state relay (SSR)
DC-DC module power sources
electric power transmitter modules
Solar-panel arrays


Please send Gerber file to get offers!



Contact below:
Ms. Sicen Hu
Mobile phone:+86-15919900196
Skype: xingdapcbsales3
Email: sales3@xdpcba.com
