ZIA Copper Clad GPS Antenna Ceramic PCB Assembly

XDPPCB11
Many users of printed circuit boards find ceramic boards have an advantage over traditional boards made of other materials. This is because they provide suitable substrates for electronic circuits that have a high thermal conductivity and a low expansion coefficient (CTE).
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details
Introduction:
Xinda factory is engaged in PCB manufacturing and offering ceramic PCB&PCBA board. High reliability, strong diversity and expert advice are our characteristics. Please contact us if you have inquiry.


Ceramic PCBA board application:
1.Building blocks for automobile electronics
2.The military and aerospace technology
3.Solar-panel arrays
4.Telecommunication private branch exchange and receiving system


Ceramic PCBA board parameters:
1.Output Signals: mV/V ratiometric, 0-10Vdc, 4-20mA, 0.5-4.5Vdc ratiometric, capacitive (pF), frequency (Hz)
2.Electrical Conections: soldering pads, solder pins, flexible ribbon cable
3.Pressure Connections: flush diaphragm suitable for O ring sealed assembly


Ceramic board advantage:


1.Excellent thermal cycling performance and fine mechanic strength.
2.High isolating strength
3.The thermal expansion coefficient is close to that of the silicon chip

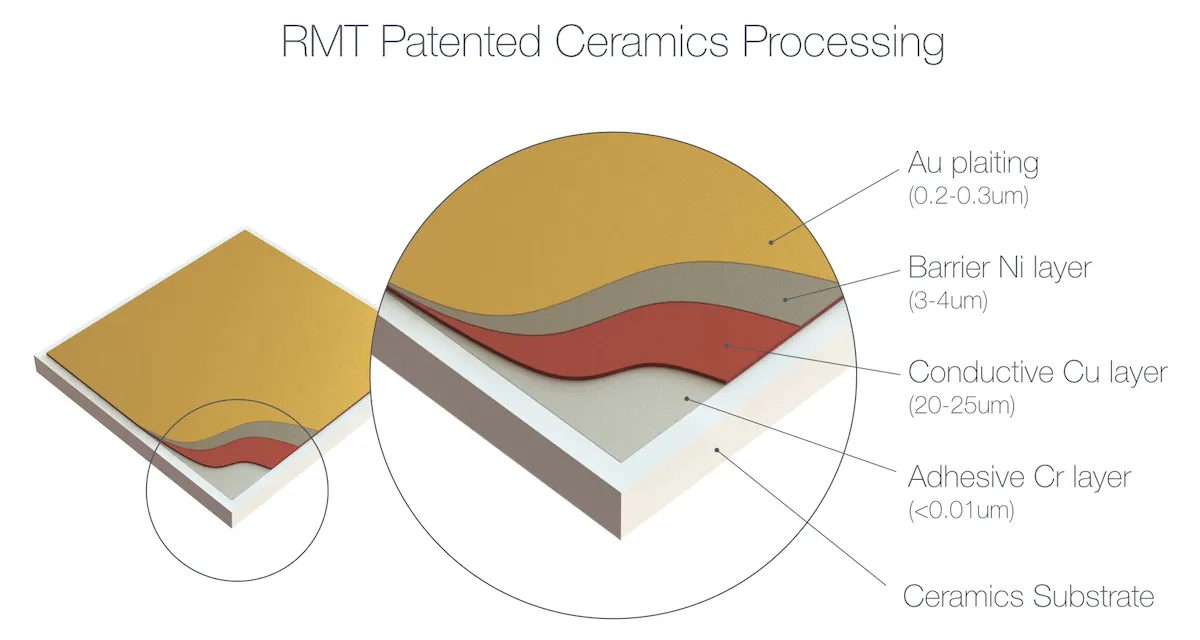

Ceramic process:



FAQ:
1. Regarding the Ceramic PCB Assembly, could you offer us the best price?
A: Yes. We are professional PCB/PCBA manufacturer. We have long-term component suppliers. So we can get the lower than trader.


2.What do you need for quotation?
A: PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: Gerber file, BOM, (Testing documents...)


3.Do you have the capability of manufacturing high frequency materials? Rogers?
A:We can manufacture these materials. Please contact us before place order.


Contact below:
Tel:+86-0755-23050569-813
mobile phone:+86-18098922617
Skype: xingdapcbsales1
Email: sales1@xdpcba.com
Website:  www.xdpcba.com
