CEM-1 Notebook Keyboard Carbon Oil PCB

XDCPCB127
Carbon ink is typically used to create a protective contact surface for switches. It's typically much more cost effective than the typical alternative, which is hard electroplated gold. But the carbon inks must have good viscosity stability for warmer climates and require good printing properties to give even coverage over the copper pads.
Quantity:
0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Carbon ink can be used for keyboard contacts, LCD contacts and jumpers.  The printing is performed with conductive carbon ink.

·  Carbon elements must resist soldering or HAL.

· Insulations or Carbon widths may not reduce below 75 % of the nominal value.

· Sometimes a peel able mask is necessary to protect against used fluxes.

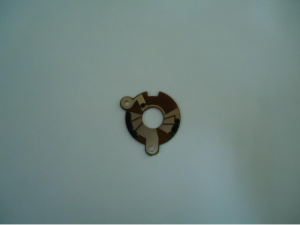

The main technical parameters of Carbon oil PCB

1, the resistance value range: 10 & Omega; ~ 1M & Omega;

2, the law of resistance: linear

3, resistance value tolerance: ±5% -±20%

4, linear tolerance: ±0.5% - ±3%

5, durability: 200,000 or 1 million times level

6, resistance temperature coefficient:±1500PPM

8, material: FR1/FR4/CEM-1/CEM-3

There are varify character of carbon oil

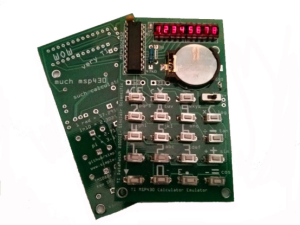

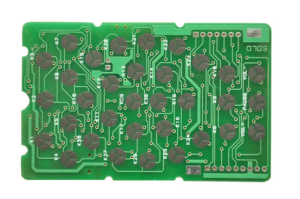

 For Key products (keyboard type, remote control carbon board, etc.)

Resistance Range: 0 ohms - 1K Europe

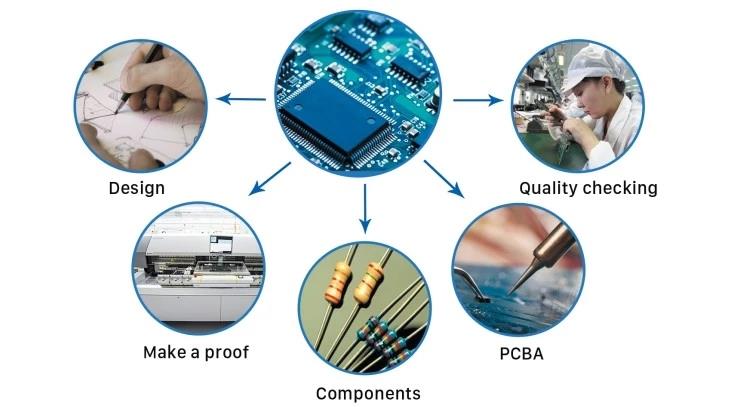

We are professional one-stop electronic manufacturing solutions provider, so we can provide the following services :
