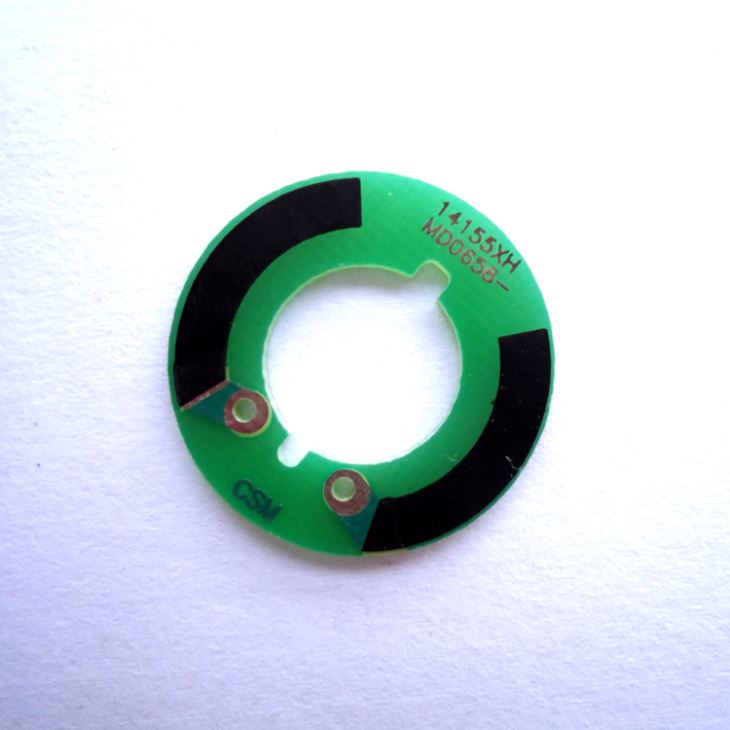

High Resistance Carbon Printing (PCB Printing)

XDCPCB63
Product Detail Basic Info Model NO.: PCB Printing Type: Flexible Circuit Board Product Description The resistance of PCB carbon film products is widely ranged from 1K? ~3M? . The products are widely adapted for automotive and general household industries, such as, air-flow or seat-angle control...
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Introduction:

Shenzhen XingDa Electronic Technology Co., Ltd. is a professional high-resistance carbon film processing technology and production line. At present, the main processed products are PS2 gamepad printed carbon processing, automotive carbon film PCB control circuit board processing, potentiometer carbon film processing, memory module. For carbon film processing, the resistance can be controlled between 5%, 10%, 15%, and 20%.

Product details:

Type: High Resistance Carbon Printing (PCB Printing)

Order type: custom

Certificates: Rohs



Application:

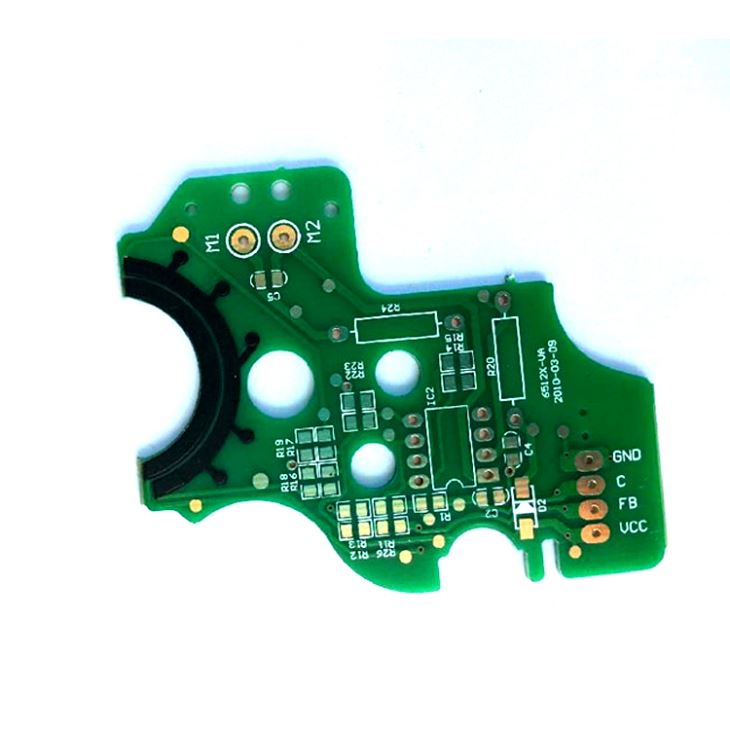

It is mainly a processing method of a resistor body of a potentiometer or a resistance type sensor. At present, it is mainly used for potentiometers, motor carbon resistance printed PCB boards, automotive air conditioning damper sensors, automotive wipers, automotive dimmers and fitness equipment.

Main technical performance services:

1. Resistance range: 10 ohms - 1 M ohm
2. Resistance law: straight type
3. Resistance value tolerance: /-10%-/-20%
4. Linear allowable deviation: /-1%-/-3%
5. Durability: 200,000 or 1 million weeks grade
6. Temperature coefficient of resistance: /-1500PPM

FAQ:

1. Can i get a sample to test your quality?

Yes,it is reasonable to get a sample to test quality at first,but you should pay for sample,and we will return all sample cost in future mass production is more than 20sqm.

2. Do you have any MOQ Limited ?
We have not any limited about MOQ .Sample and mass production all can support.

3. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
