FR4 Electric Breaker Carbon Ink PCB
- Product Details
Specifications of PCB:
Layers | 1-38 layers PCB |
Material | FR-4, Rogers, Fr-2, ECT |
Copper Thickness | 1/2 oz min; 12oz max |
Finish Board Thickness | 0.2 mm-6.00mm(8mil -126mil)Surface Finish |
Surface Treatment | Solder Mask(black, green, white, red, blue, thickness>=12um, Block, BGA) |
Silkscreen(black, yellow, white) | |
Peel able-mask(red, blue, thickness>=300um) | |
Surface Finish | HASL |
Shape | Routing、Punch、V-cut、Chamfer |
Conductor Width(W) | +/-0.05mm(2mil) or +/-20% of original |
Hole Diameter(H) | PTHL:+/-0.075mm(3mil) |
Non PTHL:+/-0.05mm(2mil) | |
Conductivity | <50ohm |
Panel Size | 110 x 100mm(min) |
660 x 600mm(max) | |
Min Trace Width & Line Spacing | 0.075mm /0.075mm (3mil/3mil) |
Min Hole Diameter for CNC Drilling | 0.1mm(4mil) |
Min Hole Diameter for Punching | 0.6mm(35mil) |
Hole Position | +/-0.075mm(3mil) CNC Drilling |
Test Voltage | 10-300V |
Layer-layer misregistration | 4 layers:0.15mm(6mil)max |
6 layers:0.25mm(10mil)max |
XDPCB has been a leading PCB manufacturer in China specializing in Quickturn Printed Circuit Boards For over 10 years. Our mission is to provide you with the best service and fabrication in the industry. We offer custom FR4 Electric Breaker Carbon Ink PCB.
Products applications:
-Household appliance
-Medical products
-Automotive products
-Industrial products
-Consumer electronics
Related products of carbon pcb:

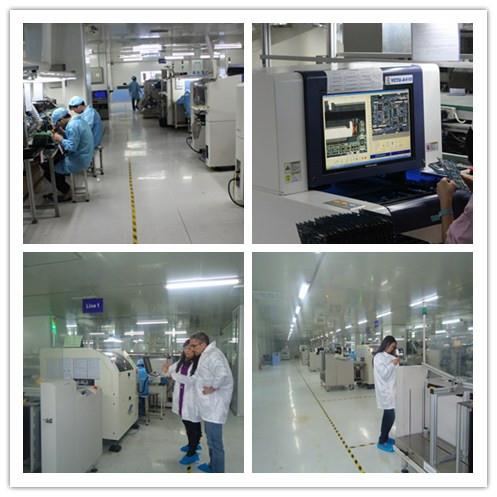

Factory View:
