High Quality Em-Shielding Flexible PCB
XDCPCB39
FPC, Flexible Printed Circuit Board, Circuit Board manufacturer / supplier in China, offering High Quality Em-Shielding Flexible PCB, FPC, FPCB, PCB, PCB Design, High-Quality Double Side Rigid-Flex Circuit Board and so on.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Specifications of FPC:
| Product name | FPC |
| Board Thickness | 0.0765mm-0.6mm |
| Base Copper Thickness | 1/3 oz to 2oz |
| Min. Hole Size | 0.1mm |
| Layers of FPC | 1 to 6 Layers |
| Surface Finishing | ENIG,OSP,HASL,Tin; plated silver;immersion silver |
| Certificate | UL，RoHs，ISO9001 |
| Service | One stop service provided |
| Blind or Buried Vias | Yes |
| Impedance Control | Yes |
| Circuit to edge(hard tool/die cut) | ±0.07/±0.2mm |
| Edge to edge(hard tool/die cut) | ±0.05/0.2mm |
| Hole to edge(hard tool/die cut) | ±0.1/±0.2mm |
Flexible Printed Circuit Boards:
Flexible printed circuit boards are considered"flexible"for multiple reasons, but the most obvious one is that their circuitry can be designed to match up with the electronic device or core product. Manufacturers are not forced to create a product or casing around the board itself. Instead, they can adapt the board to fit an existing design. This is beneficial when creating components or hardware that feature orthodox designs. For instance, if you are concerned with the total weight, portability and durability of a particular device, conventional boards may be out of the question.
About us:Xinda one of the best manufacturers and suppliers in China, now brings you high-tech high quality em-shielding flexible pcb at competitive price from its professional factory. We have the most advanced FPC manufacturing equipment and testing instruments. The monthly capacity is 16, 000sq. M of high-qualified Single-sided, Double-sided, Dual-access, Multilayer, Air-gap FPCs and Rigid-Flex PCBs, which are widely used in aerospace, automotive, medical devices, industrial control, consumer electronics, etc.
We advocate"Integrity, Innovation, Harmony, Win-Win"enterprise spirits. With professional skills, advanced equipments, strict quality control, scientific management, reasonable prices and Law-abiding integrity of management ideal, we are dedicating to provide high-quality products and prompt service for customers.
Basic Information:
- Model NO.: D3141
- Material: Polyimide
- Application: Digital Products
- Demension: 159.5mm*53mm
- Specification: High Quality EM-Shielding Flexible PCBA
- HS Code: 85340090
- Structure: Double-Sided FPC
- Combination Mode: Adhesive Flexible Plate
- Conductive Adhesive: Conductive Silver Paste
- Thickness: 0.1mm
- Transport Package: Vacuum Package
- Origin: China
Product Name: High Quality EM-Shielding FPC
Demension: 159.5mm*53mm
Line Width/Space: 0.15mm/0.15mm
Thickness: 0.1mm
Outline Tolerence: 0.1mm
Shielding Material: Conductive shielding film, carbon ink, silver ink, Metal foil (Al, Cu, etc. ).
Min Hole size: 0.15mm
Min Pitch size: 0.15mm
Advantage:
1. Over 10 years' manufacturing experience
2. Assembly provided
3. 100% quality tested before shipment
4. Certificate of UL, ISO9001, ISO14001 and ISO/TS16949.
5. Our Products meet the RoHS & WEEE lead-free requirement.
6. Small Order accepted
7. 3 weeks for massive production; 10 days for sample since material prepared
Urgent case or spread delivery schedule will be updated per negociation then

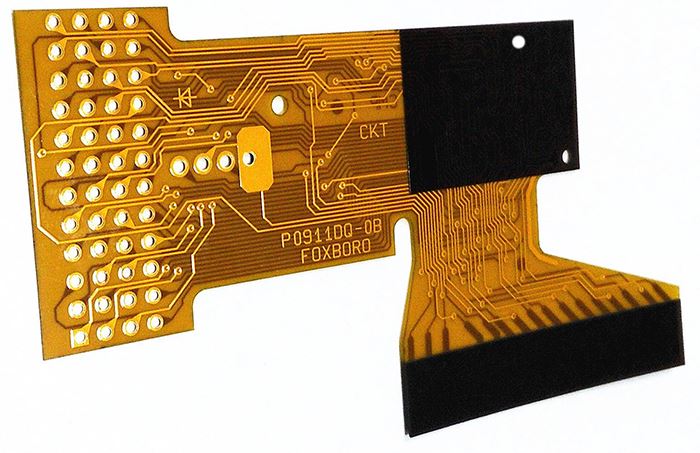

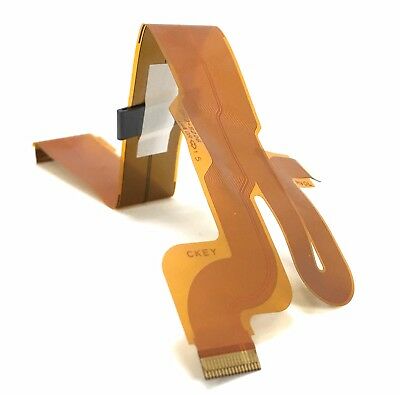

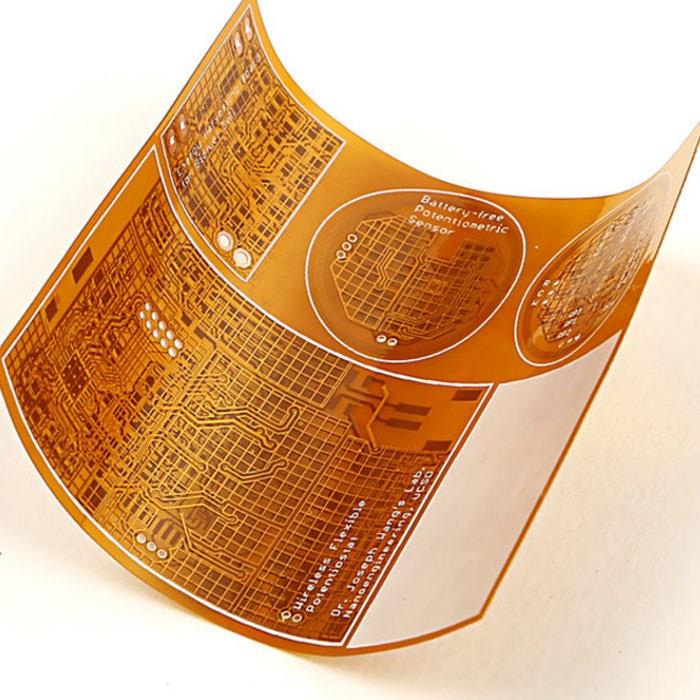

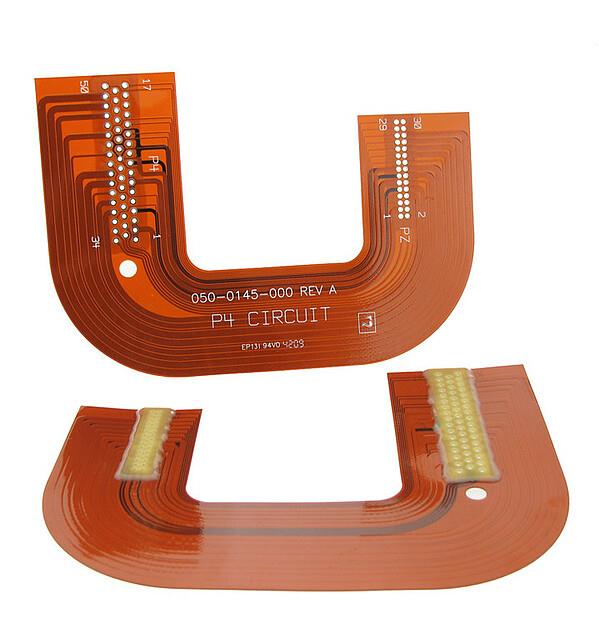

Our products:

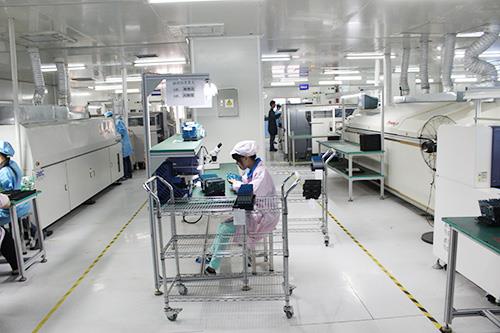

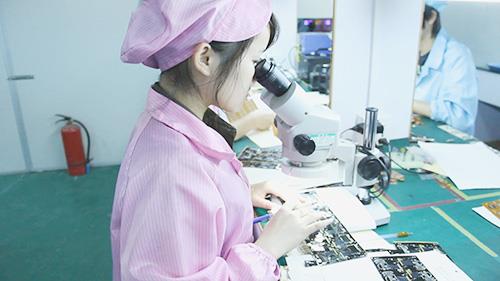

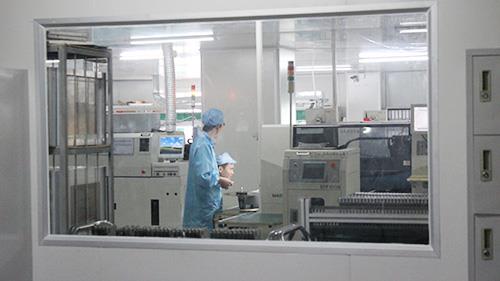

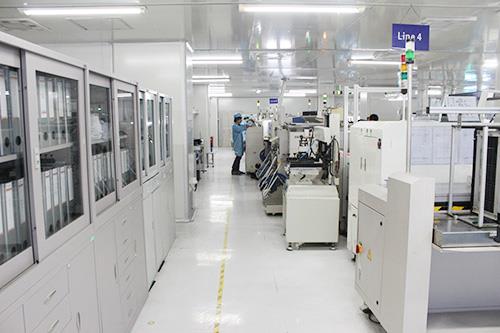

Our factory:
Our payment and shipment:
