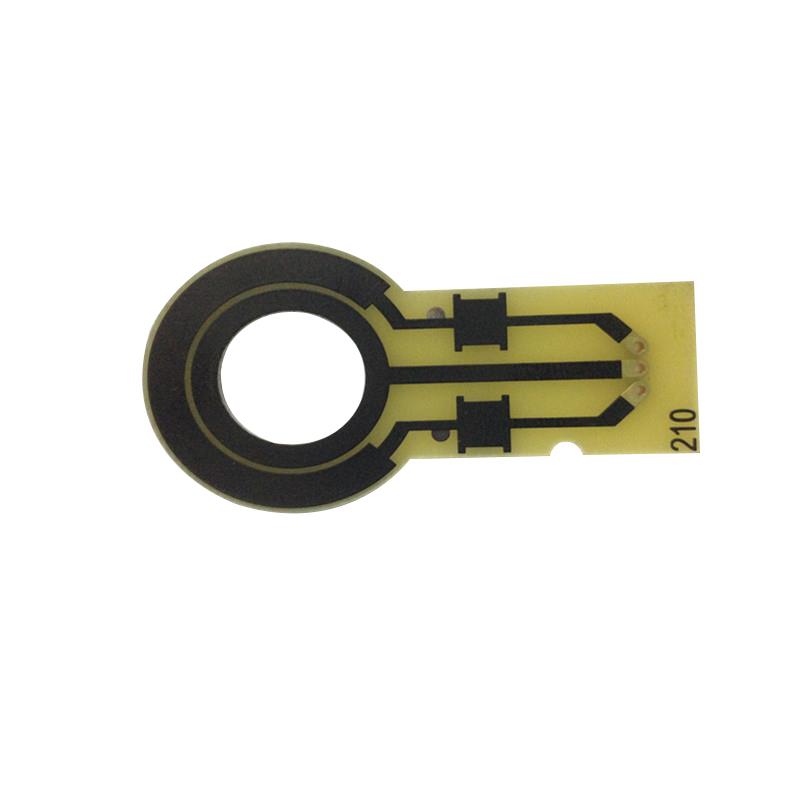

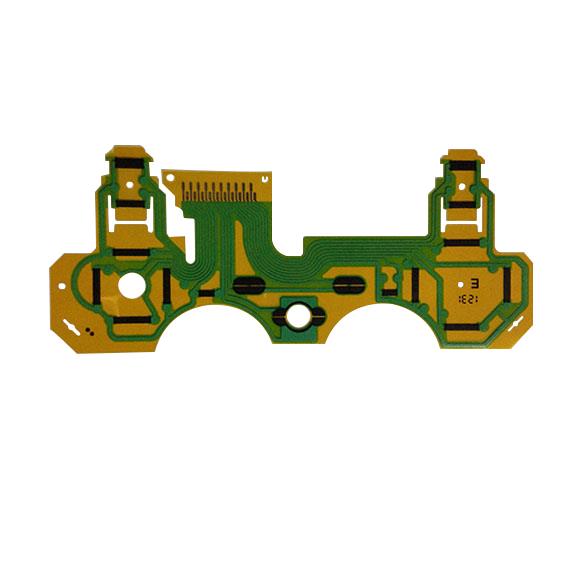

Copper PCB with Carbon Ink Printing

XDCPCB61
Carbon Ink printing is used to print contact areas on Contact Pad areas on e.g. Remote Control PCBs or on Mobile Phone PCBs (replacement of ENiG Surface Finish), to print switch contacts, shield areas, heating elements or as conductor in the cross over Technology (Crossing Tracks on single side PCBs).
Quantity:
0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Shenzhen Xingda PCB/PCBA manufacturer is a professional Printed Circuit Board (PCB) manufacturer from China. We are specialized in providing fabrication service for PCB, Flex PCB, Rigid-Flex PCB, Carbon PCB, Ceramic PCB and also Aluminum base PCB.

We provide PCB solution from prototype, small volume, medium to mass volume orders.
We focus very much on product quality and we have got IS09001, Rohs, UL, CE certificates.


Application of Carbon PCB

1. 3D rocker, potentiometer and guitar, PS2, X-BOX game console handles. PCB printing is mainly used for potentiometer.

2. Mainly used forpotentiometer, automotive air conditioning door sensors, automotive wipers, automotive dimmers and resistance type controllers.

3. Electric tools

Key Specifications/Special Features:

Copper PCB with Carbon Ink Printing
Layers: 2 layers
Material: FR4 RoHS compliance
PCB thickness: 1.6mm+/-10%
Final copper:1/1/1/1/1/1oz
Min hole: 1.2mm
Min line width/space: 20/20mil
Min hole copper: 35um
Soldermask:Green
Legend:White
Surface:Immersion Gold
Outline: Rout and Score/V-Cut
E-Test: 100%
Inspection standard: IPC-A-600H/IPC-6012B, Class3
Outgoing reports: Final Inspection ,E-Test ,Solderability Test, Microsection and so on.

Certificates: UL, SGS, RoHS, ISO14001:2004, ISO/TS16949:2009
