AI2O3 Silver Paste Helicopters Aluminum Nitride Ceramic Circuit Board PCB

XDPPCB27

XD specializes in Alumina Oxide (Al2O3) and Aluminium Nitride boards (AlN) using thick film as well as direct bonded copper (DBC) and direct plated copper Technologies (DPC) to print the circuits.

Quantity:

0.00

Unable to ship to shipping address, please feedback to us

Contact Now

add to cart

Buy Now

Verification Code

Message Content

Company Address

Country

Phone

Company Name

You can only upload 1 attachments at most
Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
The size of the uploaded file should not exceed 10MB

Product Details

XD provides two technologies to attach the substrate with the copper. DBC (direct bond copper) – a high temperature melting and diffusion process where the pure copper is bonded onto the ceramic and AMB (active metal brazing) – a high temperature process where the pure copper is brazed onto the ceramic substrate.

The high heat conductivity as well as the high heat capacity and thermal spreading of the thick copper cladding makes XD substrates indispensable to power electronics. The mechanical stress on silicon chips mounted directly on the substrate (Chip on Board) is very low, since the coefficient of thermal expansion (CTE) of the ceramic substrate is better matched to the CTE of silicon compared to substrates using a metal or a plastic basis.

XD substrates are produced in a master card format of 5“x7“ and 5,5“x7,5“. The individual parts can be left in the master card format to support more efficient assembly and mounting of components before being separated into individual pieces. We also offer single pieces for single piece assembly.

Advantages:

· Great heat conductivity and temperature resistance

· High insolation voltage

· High heat spread

· Adjusted expansion coefficient enables chip on board

· Efficient processing of master cards

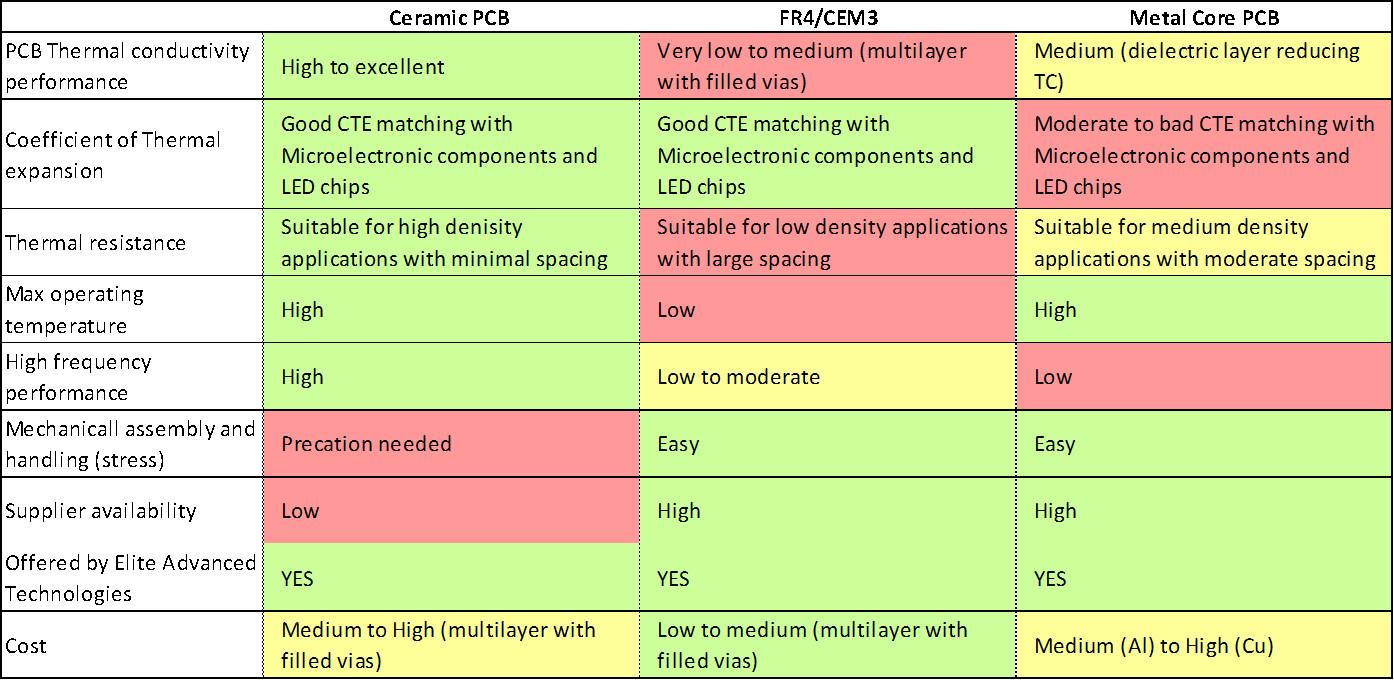

Comparison:
