MCPCB For High Power Leds

ALPCB037
MCPCB, Metal Core PCB, thermal PCB - whichever name you prefer, they are all boards which use a base metal material as the heat spreader portion of the circuit board. Base metals in the MCPCB are used as an alternative to FR4 or CEM3 boards for the ability to dissipate heat away from critical board components and to less crucial areas such as the metal heatsink backing or metallic core.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Metal Core PCB Materials and Thickness

The metal core of the thermal PCB can be aluminum (aluminum core PCB), copper (copper core PCB or a heavy copper PCB) or a mixture of special alloys. The most common is an aluminum core PCB.
The thickness of metal cores in PCB base plates is typically 30 mil - 125 mil, but thicker and thinner plates are possible.
MCPCB copper foil thickness can be 1 - 10 oz.

Advantages of MCPCB

MCPCBs can be advantageous to use for their ability to integrate a dielectric polymer layer with a high thermal conductivity for a lower thermal resistance.
Metal core PCBs transfer heat 8 to 9 times faster than FR4 PCBs. MCPCB laminates dissipate heat, keeping heat generating components cooler which results in increased performance and life.

Welcome to our company:

Company information.jpg

MCPCB ManufacturingCapability:

1) Product Type:  Al Clad PCB 1 /2 layer

2) Maximum Panel size:1500mm*560mm(59in*22in)

3) Copper thickness:0.5oz, 1oz, 2oz, 3oz

4) SubstrateCore Thickness:  0.4mm,0.6mm,0.8mm, 1.0mm,1.2mm, 1.5mm,2.0mm,

3.0mm,3.2 mm

5) Finished Board Thickness:0.4mm To 5.0mm

6) Copper foil thickness:35um~240um (1OZ~7OZ)

7) Min. line width/space:4mil/4mil (0.1mm/0.1mm)

8) Thickness Tolerance:+/- 10%

9) Min. Finish hole size:0.2mm

10) Hole position tolerance(+/-)0.076mm

11) Max. working voltage:2.5k VDC(0.075mm Dielectric) 3.75k VDC(0.15mm Dielectric)

12) Aluminum MachiningDrilling,Tapping,Milling, Routing, Die-Punching, break-off tab available

13) Profile tolerance

Routing outline tolerance:+/-0.13mm;

Punching outline tolerance:+/-0.1mm

14) Surface FinishingHASL, HASL,Leadfree, Immersion gold(silver,Tin), OSP

15) Solder mask colorWhite, LED light special White, Black, MATT Black, others Available

16) Legend colorBlack, White, others Available

17) TestFlying probe E-test; Fixture E-test;

18) ROHSYES

CertificationSGS;ISO9001;ISO14001;UL(E337137);ROHS;TS16949

Product Show:

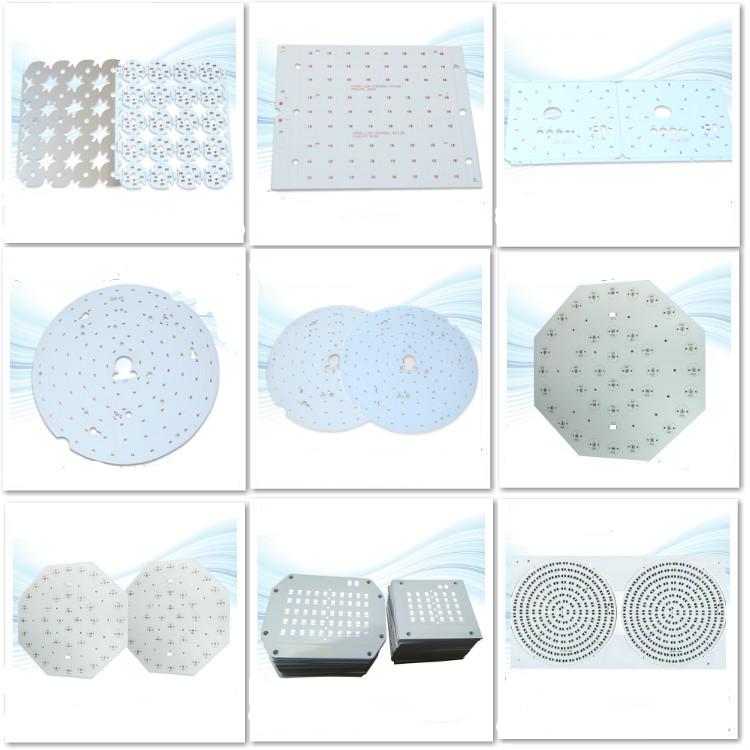

Product Show.jpg

Our Advantage of LED:

1.LED driven directly from AC line voltage, no AC/DC conversion.

2.Advanced IC technology, no electrolyte capacitor, longer lifetime.

3.Compact size and low-cost for design flexiblity.

4.Excellent power factor(>0.90) and low THD(<20%).Comply with EMC and other safety requirements.

5.High power conversion efficiency(>90% typical). High system luminous efficiency(>90lm/W)

6.Compatible with leading edge dimmers and most of Triac dimmers

7.Suitable for light bulb, candle light, downlight etc.
