MC Printed Circuit Board Pcb

ALPCB039
Customized size mc print circuit boards 1.2thickness for cob led, mc pcb for LED indoor lighting, MC PCB / Metal Core Printed Circuit Board / Aluminum Base, MC print circuit boards for led light,road lights, China aluminium led pcb board, mc led pcb manufacturer, LED PCB High quality circuit board MC PCB, MC print circuit boards for led light,road lights, PCB Shenzhen Supplier Single Side MC PCB Aluminum PCB for LED Bulb.
Quantity:
0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

MCPCB Manufacturing Capability

1) Raw Materials aluminum base, copper base, iron base laminate etc.

2) Max. Board Size 1500mm*560mm(59in*22in)

3) Min. line width/space 4mil/4mil (0.1mm/0.1mm)

4) Min. Hole size 12mil (0.3mm)

5) Finished board thickness 0.3~5mm

6）Copper foil thickness 35um~240um (1OZ~7OZ)

7）Remain thickness tolerance (+/-)0.1mm

8）Hole position tolerance (+/-)0.076mm

9）Profile tolerance routing outline tolerance:+/-0.13mm; punching outline tolerance:+/-0.1mm

10）Surface finished Lead free HASL, immersion gold (ENIG), immersion silver, OSP etc.

11）Production capacity 40,000 s.q.m/month

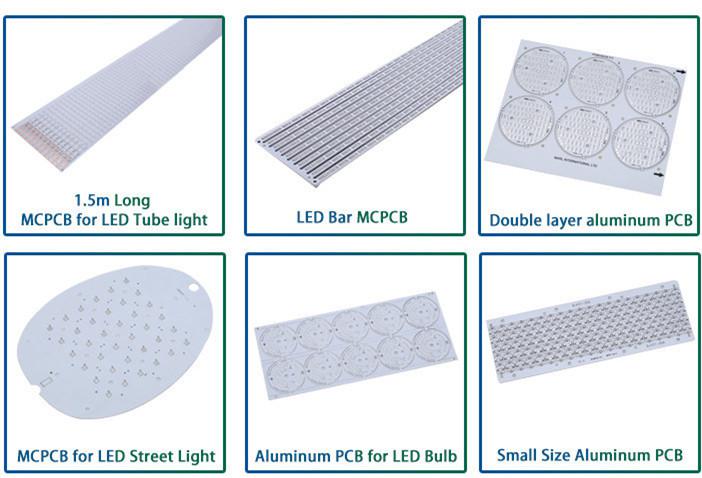

More Products

Our Service

PCB Quotation Need

A. PCB GERBER file and specification .

B. Your special requirements for the PCB Board.

C. Your testing instructions if you wanna test.

Packaging & Shipping
