Led Tube Light Aluminum PCB Diy

ALPCB044
Aluminum Pcb is a kind of metal-based CCL with good heat dissipation function.Generally, a single-sided board consists of a three-layer structure, namely a circuit layer(copper foil), an insulating layer and a metal base layer. For high-end use are also designed for the double-panel. Very few applications for the multi-layer board, can be ordinary multi-layer board and insulation, aluminum paste from.
Quantity:
0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Aluminum Pcb Diy Specification:

Base Material:aluminum

Copper Thickness:0.5oz-2oz

Board Thickness:0.8mm

Min. Hole Size:0.2mm

Min. Line Width:0.1mm

Min. Line Spacing:0.1mm

Surface Finishing:Lead Free HASL,HSAL,ENIG

Certificate:UL,ISO 9001

soldermask: white

PCB Min. S/M Pitch: 0.05mm

PCB warp and twist: 0.7% aluminum pcb

PCB Electric Strength: >1.5kv/mm

Inner packing: Vaccum packing

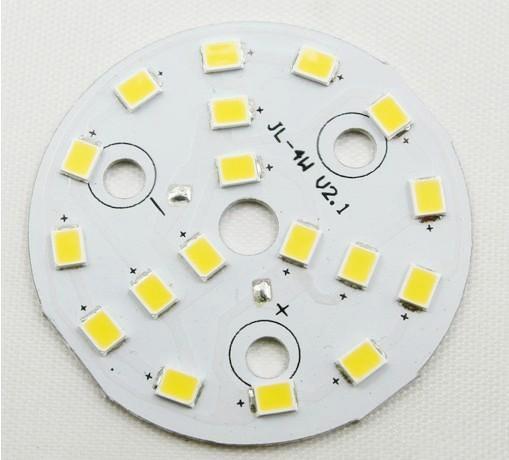

Aluminum PCB show:

Aluminum Pcb Diy Advantage:

1. Excellent material selection

The basic material is generally based on the insulation of the basic material for classification. The common raw materials are usually the electric board, glass fiber version and all kinds of plastic board. The core material on the plate, uses Class A military material.

2. Superb welding process

Rosin is a common flux, and it is neutral.That does not corrode the circuit components and tips, which plays a role in isolating the air to prevent oxidation of the metal surface. The use of high-quality ink technology, text patterns clearly visible.

3. Quality assurance

certificate: ISO, ISO9001, UL, TS16949, Rohs

Professional team: professional pre-sales technology, production and technical personnel, field engineers and warehouses to provide customers with services.

4. We carefully do about every step.

Aluminum Pcb Diy Application:

1. Led Strip Light Widely used for home decoration use, hotels, clubs, shopping malls.

2. Architectural decorative lighting, boutique atmosphere lighting.

3. Widely used in Backlighting, concealed lighting, channel letter lighting.

4. Emergency & security lighting, advertisement sign lighting.

5. Decorative lights for holiday, event, show exhibition.

FAQ:

1. Can you give us a favorable discount?

Of course, a favorable discount will be offer if the quantity is sizable.

2. Are your products confirming to our standards?

Yes, our products can pass the testing as your require, e.g: CE, RoHs, PSE,ETL, FCC,etc.

3. How do you ship the goods and how long does it take?

We usually ship by DHL, UPS, FEDEX,TNT. It usually takes 4-5days to arrive. By air, by sea are also acceptable.

4. Can we print our logo on the products?

Yes. We have laser marking machines.

5. Is your products are the lowest price?

EXW price, we make the woulds by ourselves,controlling cost and quality.
