Led Light PCB Board Design

ALPCB040
In the past two years, high-power LED lighting conforms to the trend of energy conservation and environmental protection ,and has achieved rapid development. This has injected a powerful impetus for the rapid growth of aluminum substates. At one time, the trend of aluminum substrates was set off throught the contry. The key to maintaining the long-term continuous high brightness of LEDs is to use the most advanced thermal management materials. The use of high thermal conductivity aluminum substrates is one of the key elements.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Introduction

Xing Da Electric offers led light pcb board design here. As one of the leading led light pcb board design manufacturers and suppliers in China, our factory also provides customized service, OEM and ODM service. Welcome to contact us for details.

Specification

Base Material:CM-1 CM-3 FR-4 FR-1 AL-PCB

Copper Thickness:min:0.02mm (through hole)

Board Thickness:0.5mm - 3.0mm, 0.2mm/0.8mm/

Min. Hole Size:0.2 mm

Min. Line Width:0.1 mm

Min. Line Spacing:0.1 mm

LED Type: 304pcs samsung s6 led diodes

power: 49W-141W

Surface Finishing: HASL OSP Immersion Tin/Gold

Type: FR4 pcb

ISO Certificate 1:ISO9001:2000

pcb assembly ISO Certificate 2:ISO 14001 PCB board

ISO Certificate 3:ISO / TS 16949:2002

pcb assembly Surface processing 1:OSP

Surface processing 2:HASL

Surface processing 3:Immersion Tin PCB board

Surface processing 4:Immersion Gold

Surface processing 5:HAL Lead free

Advantage

High Quality---- Quality Raw Material, Advanced Facilities, Fine Procedures.

High Productivity

Fast Delivery

Leading Level R & D Department

Experienced Marketing Manager

Professional Design Department

Accept OEM & ODM

Excellent After-sales Service

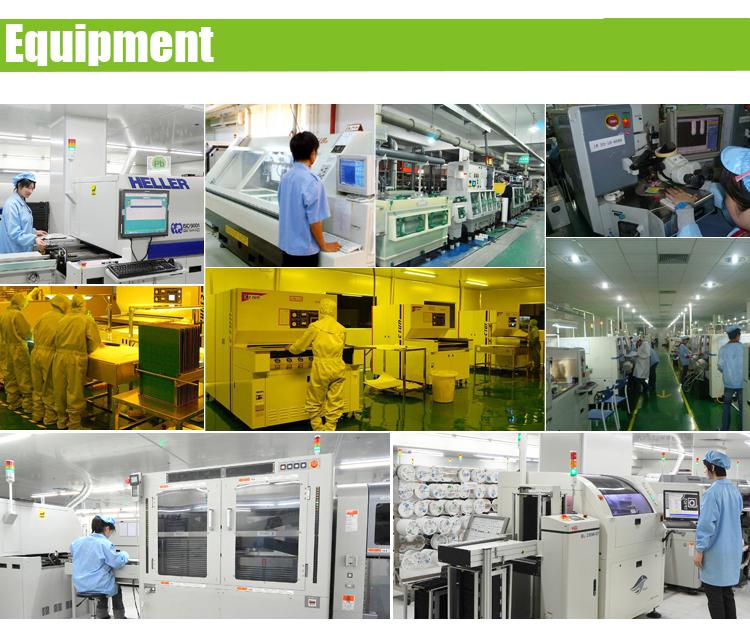

Our Equipment



Application

1. Computers and relevant products: Movable power board, U Disk, network interface, panel computer, cameral, wire-less mouse.

2. Home appliance: smart projector/digital cameral, high-frequency board. Recorder and repeater board, auto audio equipment main board and control board.

3. Wire-less communication: mobile board,. GPS/ direction record board, wireless telephone mainboard, intercom main board.

4. LED Lighting: LED drive power, LED light panel, LED light belt.

5. We have been specializing in the production of control units for commercial equipment such as industrial measuring and testing equipment, monitory and inspection systems, computers, home appliance such as air conditioners,refrigerators, solar-power systems, water-heat and automotives.

Service

PCB LED Manufacture

ONE-STOP-SERVICE

OEM service meet your requirement

PCB LED board file or Gerber file needed

Professional Surface-mounting and Through-hole soldering Technology

PCB Assembly with CE,RoHs Approval

PCB clone with sample - Reverse Engineer(ic decode, pcb copy.)

Quality guarantee and professional after-sell service
