LED Board
ALPCB031
LED Board normally are made by Aluminum,FR-4 and Copper foil. The main purpose of using aluminum substrates is that it has good heat dissipation. Because of the large heat generation of high-power LED, most aluminum substrates are used in the production of LED lighting fixtures.FR-4 glass fiber circuit board is a traditional circuit board for electronic products, due to its good insulation, corrosion resistance, compression, mutilayer printing and other characteristics, are widely used.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Detailed Terms for PCB Assembly
| Layer | Single layers,Double Layers |
| Material | Aluminum base, FR-4, Copper foil |
| Board Thickness | 0.8mm ,1mm,1.2mm,1.5mm,1.6mm,2mm |
| Copper Thickness | 12um-35um |
| Mini.Core Thickness | 0.1mm(4mil) |
| Min. Trace/ Spacing Width | 0.25mm (10mil) |
| Min. Hole for Punching | 0.7mm (28mil) , Laser Drilling: 0.1mm(4mil) |
| Profile | CNC+V-CUT |
| Solder mask color | White, Black |
| Break down voltage | ≥2KV |
1. PCB development and design;
2. PCB manufacturing from 1 to 38 layers(Rigid PCB,Flexible PCB,Ceramic PCB,Aluminum PCB);
3. PCB Clone;
4. Component sourcing;
5. PCB Assembly;
6. Write program for customers;
7. PCB/ PCBA Test.
Customer choose us to produce LED Board for below advantage:
1. High thermal conductivity
2. Excellent flame retardant
3. High mechanical strength
4. High Heat sink
5. Dimensional stability
6. Electromagnetic shielding,etc.

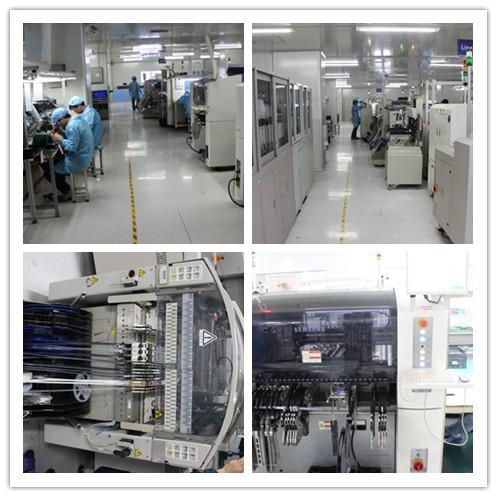

Factory :
Exhibition:
FAQ:
1.What's the warranty for our PCBA?
3 years quality insurance.
2.Can XingDa PCBA fulfill PCBA design project?
Yes,we support customized PCBA service.
3.How fast for the PCB&PCBA fabrication?
7-10days for PCB,2weeks for PCBA samples.4weeks for mass production including components sourcing.
4.Can XingDa PCBA support high precision PCBA manufacturing?
Yes,our equipments support up to 01005,0201 SMD components.
5.Can XingDa PCBA support BGA assembly?
Yes,we support BGA assembly with X-Ray inspection and BGA repair station.
6. Q: How to start for inquiry?
A: Please send us full manufacture requirements and documents for quotation.Bill of material(BOM) and FPC Gerber file,test document or test procedure,demand quantity,product sample or photos will be highly appreciate.
7. Q:What is the payment?
A: For new customer, it is 100% prepayment, for old customer, we accept some prepayment and some before shipping.
8. Q: Are you the factory
A:Yes, we are factory in Bao'an District, Shenzhen City, China.
