Every rigid and flexible printed circuit board (PCB) design is different, customized to meet the board’s purpose. The same is true for the PCB base material — fiberglass is a popular base material, but aluminum-based PCBs are also very effective in many applications. Aluminum PCBs consist of a metal-based, copper-clad laminate that delivers high performance, including excellent thermal conductivity and electrical insulation.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

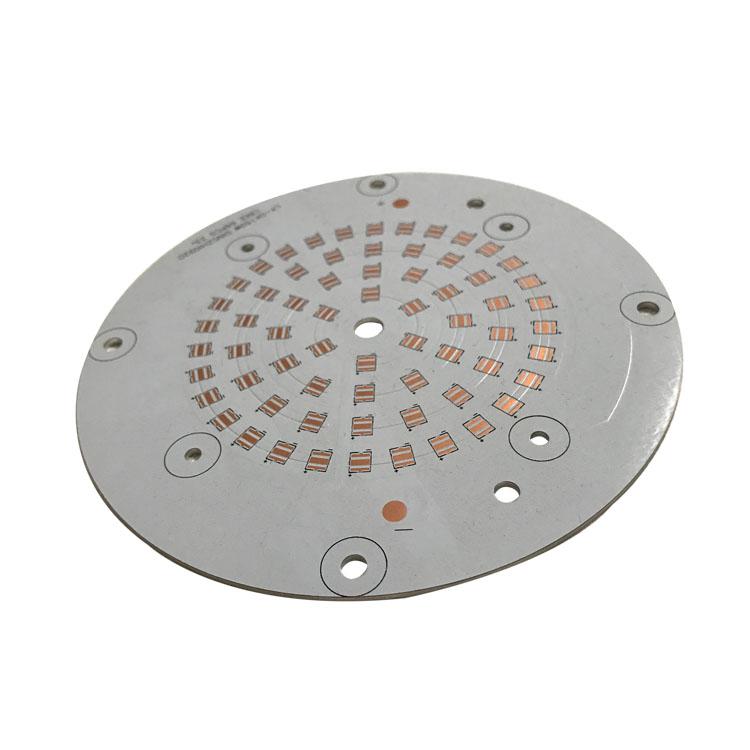

Aluminum PCB for LED

Capabilities

  • Quick Turn
  • Prototype Quantities
  • Production Quantities
  • 2 – 64 Layers
  • 15:1 Drill Aspect Ratio
  • Maximum Panel Size – 24″ x 30″
  • Blind / Buried Vias. & Micro Vias
  • Via In Pad with Fill Options
  • (Conductive, Non-Conductive, Copper Plug)
  • Controlled Impedence

Specs and Tolerances

Outerlayer Trace / Space.003″ / .004″
Innerlayer Trace / Space.003″ / .004″
Minimum Drilled Hole.0059″
Standard Drilled Hole.010″
Drill Aspect Ratio15:1
Minimum Pad Size.008″
Minimum Feature to Edge.010″
Minimum Core Thickness.002″
Controlled Depth DrillingYES
Sequential LaminationYES

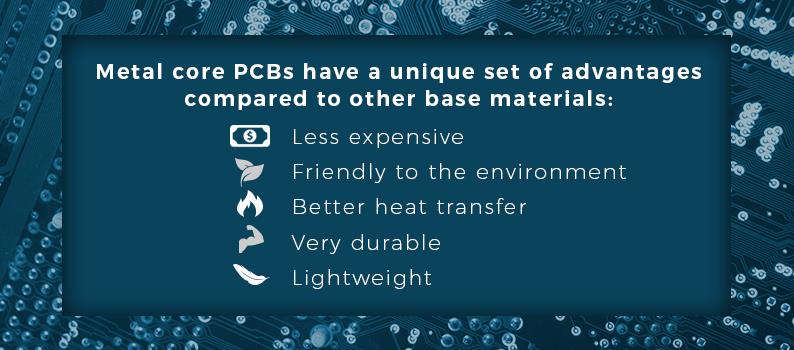

Benefits of Aluminum-Based Printed Circuit Boards

Metal core PCBs have a unique set of advantages compared to other base materials:

Less expensive. Aluminum is indigenous to a variety of climates, so it’s easy to mine and refine. That makes it significantly less expensive to mine and refine than other metals. By extension, the manufacturing costs associated with products using aluminum PCBs are also less expensive. Aluminum PCBs are also a less expensive alternative to heat sinks.

Friendly to the environment. Aluminum is a non-toxic, recyclable metal. From the manufacturer through to the end consumer, using aluminum in PBCs contributes to a healthy planet.

Better heat transfer. High temperatures are the cause of heavy damage to electronics. Aluminum conducts and transfers heat away from critical parts to minimize damage to the printed circuit board.

Very durable. Aluminum is stronger and more durable than base materials like ceramic and fiberglass. It is very sturdy, and reduces accidental breakages that can occur throughout the manufacturing process, and during handling and everyday use.

Lightweight: Considering its durability, aluminum is very lightweight. It adds strength and resilience to PCBs without adding additional weight.
