High TG 170℃ electronic circuit board pcb maker

          1. specifications

• 1. We offer One-shop PCAB/PCB manufacturing service
• 2.10 year of turnkey ODM/OEM experience
• 3. We can provide F4B,F4BK, Teconic,Arlon,Rogers materia PCB
• 4. Timely customizations PCBs and PCBAs
• 2. Detailed Terms for Pcb Assembly

  Technical requirement:

  1) Professional Surface-mounting and Through-hole soldering Technolog

  2) Various sizes like 1206,0805,0603 components SMT technology

  3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

  4) PCB Assembly With UL,CE,FCC,Rohs Approval

  5) Nitrogen gas reflow soldering technology for SMT.

  6) High Standard SMT&Solder Assembly Line

  7) High density interconnected board placement technology capacity

  PCBA Technical Capacity

  SMT	Position accuracy:20 um
  	Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
  	Max. component height::25mm
  	Max. PCB size:680×500mm
  	Min. PCB size:no limited
  	PCB thickness:0.3 to 6mm
  	PCB weight:3KG
  Wave-Solder	Max. PCB width:450mm
  	Min. PCB width: no limited
  	Component height:Top 120mm/Bot 15mm
  Sweat-Solder	Metal type :part, whole, inlay, sidestep
  	Metal material:Copper , Aluminum
  	Surface Finish:plating Au, plating sliver , plating Sn
  	Air bladder rate:less than20%
  Testing	ICT,Probe flying,burn-in,function test,temperature cycling,AXI – 2D and 3D automated X-ray inspection,  AOI – automated optical inspection

Our ServicesHigh TG 170℃ electronic circuit board pcb maker pcb power

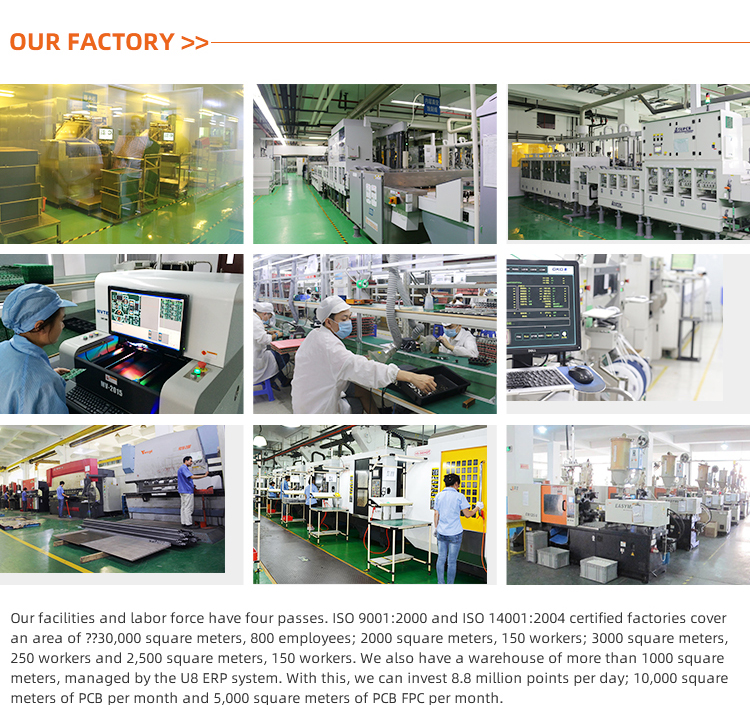

Our factoryHigh TG 170℃ electronic circuit board pcb maker pcb power

High TG 170℃ electronic circuit board pcb maker pcb power

Exhibition Show:

FAQ

Packaging & Shipping
