AI2O3 99.6％ Ag Paste Voltage Regulation System Ceramic PCB Boards

XDPPCB30

Al2O3 is available in standard 96% grade for low cost and general electronics 99.6% for higher frequency applications. We are a professional manufacturer in various Ceramic PCB/PCBA and Carbon PCB/PCBA with 11 years' experience.

Quantity:

US $0.00

Unable to ship to shipping address, please feedback to us

Contact Now

add to cart

Buy Now

Verification Code

Message Content

Company Address

Country

Phone

Company Name

You can only upload 1 attachments at most
Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
The size of the uploaded file should not exceed 10MB

Item	Ceramic PCB Boards
Material	FR-4, FR1,FR2; CEM-1, CEM-3,Rogers, Teflon,Arlon,Aluminum Base, Copper Base, Ceramic, Crockery, etc.
Shape	Routing、Punch、V-cut、Chamfer
Copper Thickness	1/2 oz min; 12oz max
Min spacing between hole edge to circuitry 0.25mm(10mil) pattern of an inner layer	0.25mm(10mil)
Min spacing between board outline to circuitry 0.25mm(10mil) pattern of an inner layer	0.25mm(10mil)
Conductivity	<50ohm

The main advantage:

Different from the traditional fr-4 (wave fiber), ceramic materials have good high-frequency performance and electrical performance, as well as high thermal conductivity, chemical stability, and thermal stability, which are not available in organic substrates. They are ideal packaging materials for a new generation of large-scale integrated circuits and power electronic modules.

1. Higher thermal conductivity

2. More suitable thermal expansion coefficient

3. Metal film layer with stronger and lower resistance

Alumina ceramic circuit board

4. Good solderability of the substrate and high service temperature

5. Good insulation

6. Low loss at high frequency

7. High-density assembly

8. No organic ingredients, resistant to cosmic rays, high reliability in aerospace, long service life

9. Copper layer does not contain an oxidation layer and can be used in reducing the atmosphere for a long time.

Ceramic PCB application:

1. The military and aerospace technology

2. Solar-panel arrays;

3. Telecommunication private branch exchange and receiving system

4. Industrial electronics

5. Laser;

Ceramic PCB parameters:

1. Max compression strength: >7,000 N/cm2

2. Breakdown Voltage (KV/mm): 15/20/28 for 0.25mm/0.63mm/1.0mm respectively

3. Thermal expansion conefficient(ppm/K): 7.4 (under 50~200C)

Our advantage:

1.10 years experience in exporting service
2. PCB is no MOQ/MOV.
3. PCB is high quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying test , E testing

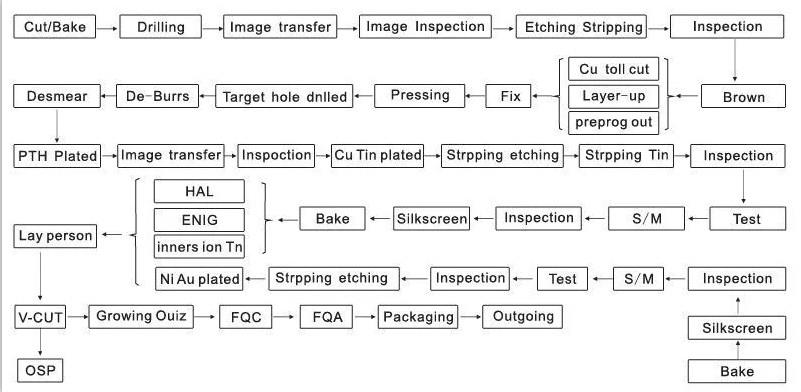

Production Process:

process

Production capacity:

production capacity: 35000 m2/month

	Double-side boards	Multi-layer boards
Sample	3-5 days	5-7 days
New order	7-9 days	8-11 days
Repeat order	5-7 days	7-9 days
