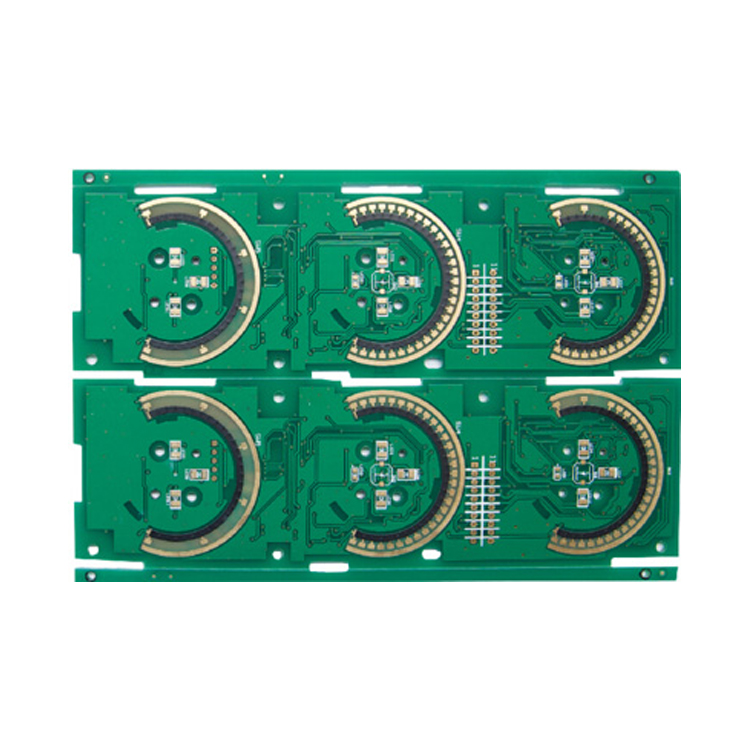

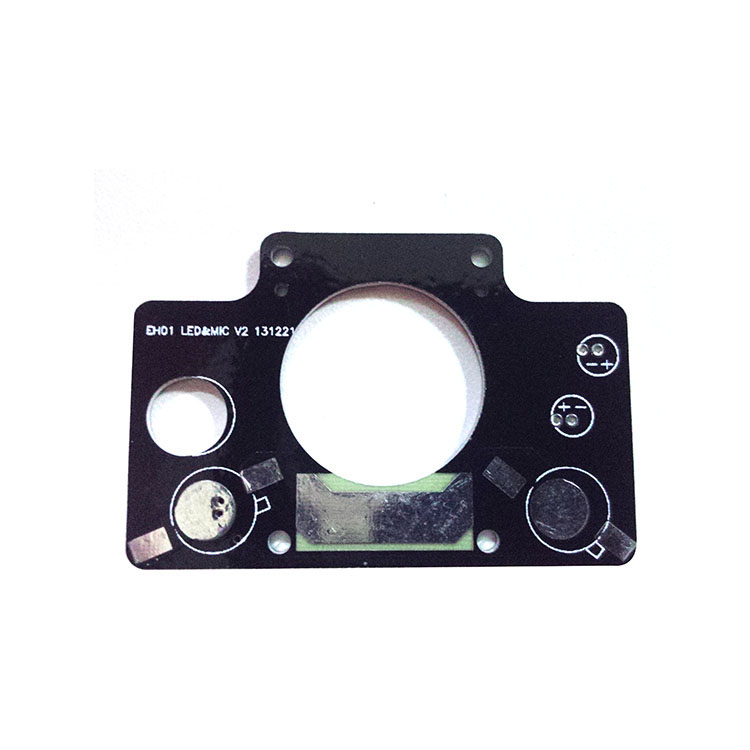

PCB carbon ink

PCB conductive carbon ink

Double sided PCBA
Country of Origin
shenzhen
Quantity:
$3.00 / piece
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Model Number:Double sided PCBA
  • Place of Origin:Guangdong, China
  • Brand Name:Xing Da
  • Number of Layers:1-38
  • Base Material:FR-4,FR2.Taconic,Rogers
  • Copper Thickness:1/2 oz min;12 oz max
  • Board Thickness:0.2mm-6.00 mm(8mil-126mil)
  • Min. Hole Size:0.1mm(4mil)
  • Min. Line Width:0.1mm(4mil)
  • Min. Line Spacing:0.075mm/0.1mm(3mil/4mil)
  • Surface Finishing:Immerssion Gold/AU/HASL/OSP,etc
  • Key words:PCB conductive carbon ink



Handle PCB( PS2,  XBOX, etc)

Main technical parameter:



Rang of total resistance:

1 KΩ -1 MΩ

Resistance tolerance:

±20%

Resistance to heat:

260℃ ±5℃, 5sec. ΔTR≤±50%

Durability:

1 Million cycles Min



Automobile component (Used for: windscreen wiper. Light and air-condition)

Main technical parameter:

3 KΩ -1 MΩ

Resistance taper:

Linear

Resistance tolerance:

±20%

Linearity tolerance:

±1%

Durability:

1 Million cycles Min

TCR:

With±1000 PPM (-30℃ — +70℃)



Electric drill component ( Used in speed control, etc.)

Main technical parameter:

3 KΩ -3 M

Resistance tolerance:

±20%

Linearity tolerance:

±1%

Durability:

1 Million cycles Min
