Single-sided Flex Circuits
FPC38

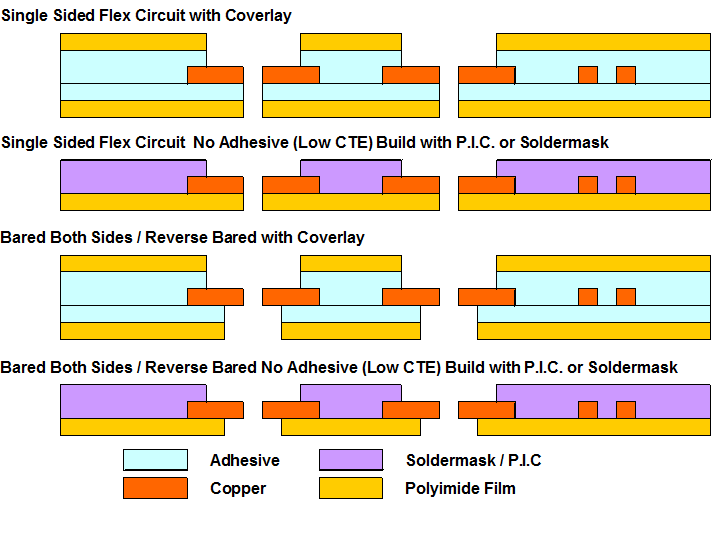

A single layer flex circuit is the most basic and consists of a flexible polyimide film laminated to a thin sheet of copper. The copper layer is then chemically etched to produce a circuit pattern specific to your specific design requirements. A polyimide coverlay is then added for insulation and environmental protection of the circuit.
Quantity:
0.00
Unable to ship to shipping address, please feedback to us
The futures:
Very thin construction
1 conductor layer
Reverse bared or back bared pads
Supported and unsupported finger areas
The advantage:
Reduced wiring errors
Elimination of mechanical connectors
Unparalleled design flexibility
Higher circuit density
More robust operating temperature range
Stronger signal quality
Improved reliability and impedance control
Size and weight reduction
The appliance:
Automotive, Digital Camera, Gaming controller (XBOX, PS4, etc.)
VR Device
Smart Band
Hand-held Projector
Flexible PCB for led strip
USB Type
Sportswear Device
Label Printer
Thermal printer
Manufacturing services:
Laser Services and Plasma Cleaning
Steel Rule Die Outlining
Class A Die Outlining
Folding, Wrapping, Forming
Over molding
Silver Shielding (360 Degree Coverage)
Marking and Labeling
Solder Assembly
Electrical Testing
FAQ:
1. Can i get a sample to test your quality ?
Yes,it is reasonable to get a sample to test quality at first,but you should pay for sample,and we will return all sample cost in future mass production is more than 20sqm.
2. Do you have any MOQ Limited ?
We don’t have any limited about MOQ .Sample and mass production all can support.
3. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising to keep customers data in high confidential level.
