Flexible Circuit
FPC20
Flexible circuits (also variously referred to around the globe as flex circuits, flexible printed circuit boards, flex print, flex-circuits) are members of electronic and interconnection family.They consist of a thin insulating polymer film having conductive circuit patterns affixed thereto and typically supplied with a thin polymer coating to protect the conductor circuits.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
FPC Specification:
Base material: PI, PET, PEN,FR-4
Copper thickness:1/3oz-2oz
Board thickness:0.05-2.5mm
Min.Hole Size:8mil
Min.Line Width:4mil
Min.Line Spacing:4mil
Surface Finishing: Lead-free, ENIG Gold, OSP, etc
Advantage:
1) Reduced size&weight
Compared to standard printed circuit boards, flex circuits provide a dramatic decrease in package size and weight.
2) Solution to interconnect challenges
Interconnect problems can often be solved by flex circuits, which integrate the interconnects into the part.
3) Reduction in assembly costs
With the interconnections built into the flex circuit, fewer connectors are required, and thus less soldering
4) High performance & flexibility
Certain applications simply require circuits that can flex.
Application:

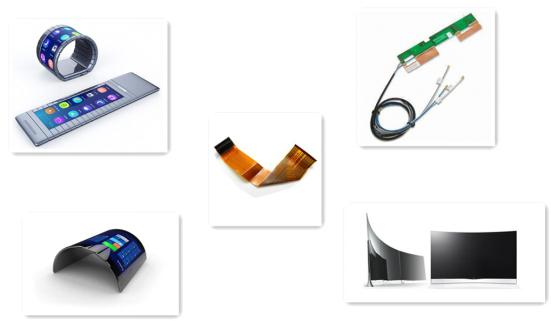

Flexible circuits are used in cell phones, LCD televisions, antennas, and laptops. Flexible circuits have evolved and help provide durability and reliability. Flexible circuits are also used in the aviation field
Service:
1. PCB Assembly on SMT and DIP
2. PCB schematic drawing/layout/producing
3. PCBA clone/change board
4.100% E-Test
5.etc

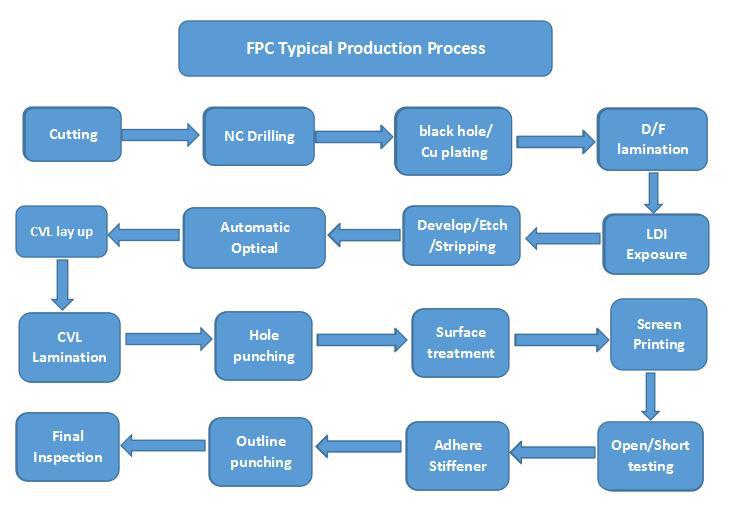

Production process:
Base material: PI, PET, PEN,FR-4
Copper thickness:1/3oz-2oz
Board thickness:0.05-2.5mm
Min.Hole Size:8mil
Min.Line Width:4mil
Min.Line Spacing:4mil
Surface Finishing: Lead-free, ENIG Gold, OSP, etc
Advantage:
1) Reduced size&weight
Compared to standard printed circuit boards, flex circuits provide a dramatic decrease in package size and weight.
2) Solution to interconnect challenges
Interconnect problems can often be solved by flex circuits, which integrate the interconnects into the part.
3) Reduction in assembly costs
With the interconnections built into the flex circuit, fewer connectors are required, and thus less soldering
4) High performance & flexibility
Certain applications simply require circuits that can flex.
Application:
Flexible circuits are used in cell phones, LCD televisions, antennas, and laptops. Flexible circuits have evolved and help provide durability and reliability. Flexible circuits are also used in the aviation field
Service:
1. PCB Assembly on SMT and DIP
2. PCB schematic drawing/layout/producing
3. PCBA clone/change board
4.100% E-Test
5.etc
Production process:
