Polymide Flex Board Design Samples

FPC49
The flexible circuit board is so called flex board or FPC. Flex board is usually made of polymide or polyester film. It has the characteristics of high wiring density, light weight and thin thickness. In the very beginning normally manufacturer use PET to produce flex board but nowadays polymide take place with higher perform and lower cost. XD with its strong technical background can offer flex board design service.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Specifications of FPC:

Product name

FPC

Board Thickness

0.0765mm-0.6mm

Base Copper Thickness

1/3 oz to 2oz

Min. Hole Size

0.1mm

Layers of FPC

1 to 6 Layers

Surface Finishing

ENIG,OSP,HASL,Tin; plated silver;immersion silver

Certificate

UL，RoHs，ISO9001

Service

One stop service provided

Blind or Buried Vias

Yes

Impedance Control

Yes

Circuit to edge(hard tool/die cut)

±0.07/±0.2mm

Edge to edge(hard tool/die cut)

±0.05/0.2mm

Hole to edge(hard tool/die cut)

±0.1/±0.2mm

Flexible Printed Circuit Boards:

Flexible boards must sometimes be adapted to a product's limitations. For example, the board size may need to be decreased, and circuits may need to be moved or redesigned to match up with case specifications and dimensions. All circuitry is laid out in a distinct pattern — including components — and then highlighted by a malleable base material, such as copper. Traditional printed circuit boards are also rolled this way, except the materials used are much heavier and more rigid.

Your Best Choice for Polymide Flex Board Design:

1. We use international certification brand board material: Grade A material.

2. Fully automatic PCB advanced equipment.
3.AOI optical scanning + testing, quality assurance.
4. Quick turn prototype service:12 hours, 24 hours, 48 hours.

ADVANTAGES:

We provide small and medium-volume Flex PCB production, can make up to 8 layers Flex Circuit Boards. Flex PCB line width / spacing can be achieved minimum 3 mil, we also provide Flex Circuit Boards with HDI, Impedance Control.

Why choose us?

10 years experience in FPC manufacturing and FPC Assembly

ISO9001, TS16949, UL Approval and RoHS compliant

One stop solution for flex board design, quick-turn prototyping, components sourcing, SMT & Through-hole assembly, Functional testing, Enclosure assembly.

Full Range of Testing Services: Visual and AOI Inspection, In Circuit Testing, X-Ray for BGA and Functional Testing.

Small to medium volume to production level quantities.

NDA (NON-DISCLOSURE AGREEMENT) is provided to sign for the confidentiality of your design

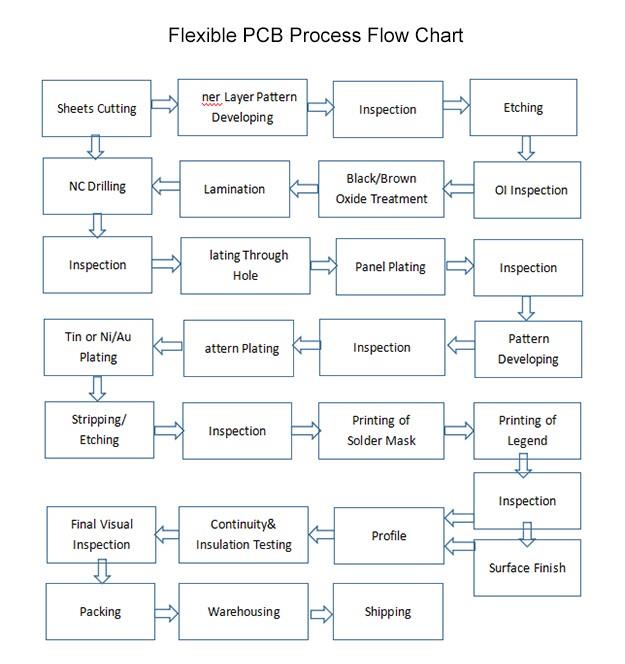

Flexible PCB process flow chart:

fcbfpc
