flexible printed circuit board

Fpca Flexible Printed Circuit

FPC04
Fpca flexible printed circuit 1. product information specification Brand Name: OEM Service, Model Number: FPC 94, Base Material: Polyimide/polyester, Copper Thickness:1oz / 1/2 o z/ 1/3 oz, Board Thickness: 0.07-0.5MM, Min. Hole Size: 0.1MM, Min. Line Width: 0.04MM, Min. Line Spacing:0.04MM, Surface Finishing:HASL / OSP / ENIG / Immersion silver/Tin/Ni
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Fpca flexible printed circuit 1. product information specification Brand Name: OEM Service, Model Number: FPC 94, Base Material: Polyimide/polyester, Copper Thickness:1oz / 1/2 o z/ 1/3 oz, Board Thickness: 0.07-0.5MM, Min. Hole Size: 0.1MM, Min. Line Width: 0.04MM, Min. Line Spacing:0.04MM, Surface Finishing:HASL / OSP / ENIG / Immersion silver/Tin/Ni

Fpca flexible printed circuit

1. Product describe

fpc assembly board

FPC Tech specification:

Items

Capabilities

Layers

FPC：1 to 6 Layers，Rigid Flex：2 to 10 Layers

Regular Base Materials

Kapton，Polyimide（PI），Polyester（PET）

Base Copper Thickness

1/3 oz to 2oz

12.5um to 50um（FPC）

Regular Base Material Thickness

0.1mm to 3.2mm（Rigid）

Regular Coverlay Thickness

27um to 50um

Regular Adhesive Thickness

12um to 25um

Blind or Buried Vias

Yes

Impedance Control

Yes

Min.Line Width/Spacing

0.04mm/0.04mm

Surface Finishing

Electroplate Ni/Au（Flash gold/Soft gold/Hard gold），ENIG，Immersion

Tin; plated silver;immersion silver ; OSP ,HASL

Outline Fabrication

Die cut，laser cut，CNC routing，V-scoring

Hole to edge(Hard tool/Die Cut)

±0.1/±0.2mm

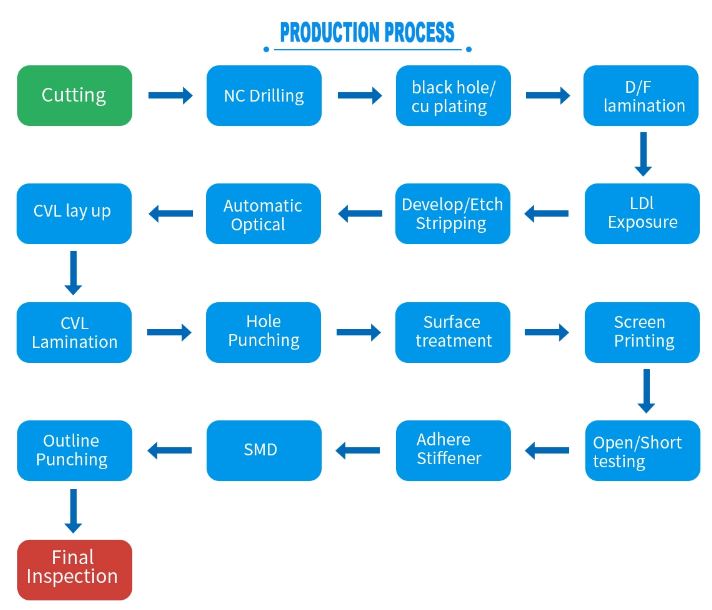

production process
