Fpc Lcd Display Fpc

FPC47
Flex Circuit is a pattern of conductors created on a bendable film that acts as an insulating(dielectric) base material. The top is coated with a dielectric cover layer. In Xinda, we have been guided by our vision and commitment to quality, efficiency, and reliability. We provide value to our customers by delivering the highest quality products in the shortest allotted time.Furthermore, our experience with myriad companies from around the globe allows us to better understand and satisfy your need.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Introduction

Flex Circuit is a pattern of conductors created on a bendable film that acts as an insulating(dielectric) base material. The top is coated with a dielectric cover layer.

In Xingda, we have been guided by our vision and commitment to quality, efficiency, and reliability. We provide value to our customers by delivering the highest quality products in the shortest allotted time. Furthermore, our experience with myriad companies from around the globe allows us to better understand and satisfy your need.

FPC Specification

FPC Material:PI film (polyimide) and copper

Copper Thickness: 1/2oz

MinBoard Thickness: 0.11mm-0.5mm

Min.Hole Size:0.2mm/0.3m

Min.Line Width:0.075mm/0.075mm(3mil/3mil)

Min. Line Spacing:0.075---0.09MM

Surface Finishing:Immersion Gold

Solder mask:Yellow

Surface Plated:gold-plated , avh 3580 fpc

Type:flat flexible fpc cable

fpc cable Tape brand:3M

Certificates:RoHS/ISO9001-2008/ISO140

Application:auto / car DVD

Service:accept OEM ODM

fpc cable full name:flexible printed circuit board

Advantage

1) We have professional research team.

2) No MOQ,samall order are aslo welcome,From Prototype to Mass production.

3) All products are 100% tested working before sent to you.

4) UL&RoHS&ISO9001 certificated.

5) Sign NDA to keep your design safe.

6) One stop FPC solution (PCB/FPC , PCB Assembly  and SMT stencil)

7) We have professional sales team, so please do not hesitate to contact us if you have any question!

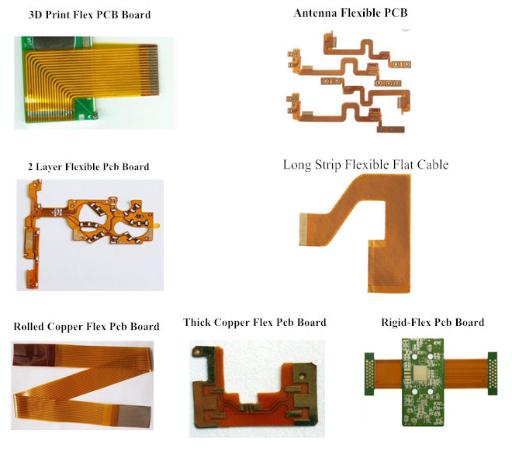

Product Show





Application

The main customers are from medium-sized manufacturers in the line of consumer electronics,digital products, radio telecommunication, industrial management,automation and medical treatment,etc. Our solid customer base has brought a strong impetus for future company growth.

Service

Brief:
* Professional with many years experience about 10 years.
* Most competitive price from material supplier base on huge orders to them.
* Experienced and Effective inner cost control system through whole process.
Quality Control:
* 3 factories: PCB/PCBA/FPC. There are 6 production lines in PCBA factory.
* Providing relative solution
* Testing from material to final products according to international standard
* ISO, UL, RHOS, CE approved factory
Service
* OEM / ODM service and support
* No MOQ. The more quantity, the better price.
* Clients Service One-to-One
* Effective Communication within 24 hours

FAQ

1. Is there MOQ?

There is no MOQ In Xinda. We are able to handle Small as well as large volume production with flexibility.

2. What is Xinda lead time?

SAMPLE:

PCB: 5-7 working days.

PCBA: 2-3 Weeks

Mass order:

PCB: 7-10 working days.

PCBA: 20-25 working days

3. Which countries have you worked with?

Russia, the Europe, the USA, Brazil, Spain and so on we all supplied.

4. How to contact us?

You can contact us online here or send us email to our email address in the website link.

5. How is your FPC quality?

We test both FPC and key components 100% before delivery. Aim to set up long term cooperation with customers we provide products with reliable quality.
