Flex Pcb Flat Cable
FPC41
Flex pcb flat cable usually used in connecting different electronic device. Using best Polyimide material,with the Light weight, thin thickness, good bending advantages,we can help you manufacture and customized different flex pcb flat cable according to your special request.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Introduction
Flex pcb flat cable usually used in connecting different electronic device. Using best Polyimide material,with the Light weight, thin thickness, good bending advantages,we can help you manufacture and customized different flex pcb flat cable according to your special request.
flex pcb flat cable technical parameter
| Item | Capability |
| Base | Polyimide, Polyester |
| Finised inner/outer copper thickness | 1-6Oz |
| Finished board thickness | 0.2-7.0mm |
| Min hole size | Mechanical hole: 0.15mm Laser hole: 0.1mm |
| Controlled Impedance | ±5% |
| Plugging vias capability | 0.2-0.8mm |
| Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
| Surface treatment | HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OPS… |
To ensure an accurate quote, be sure to include the following information for your project:
•Complete GERBER files
•Quantities
•Turn time
•Parameter Requirements
•Finish requirements
Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.

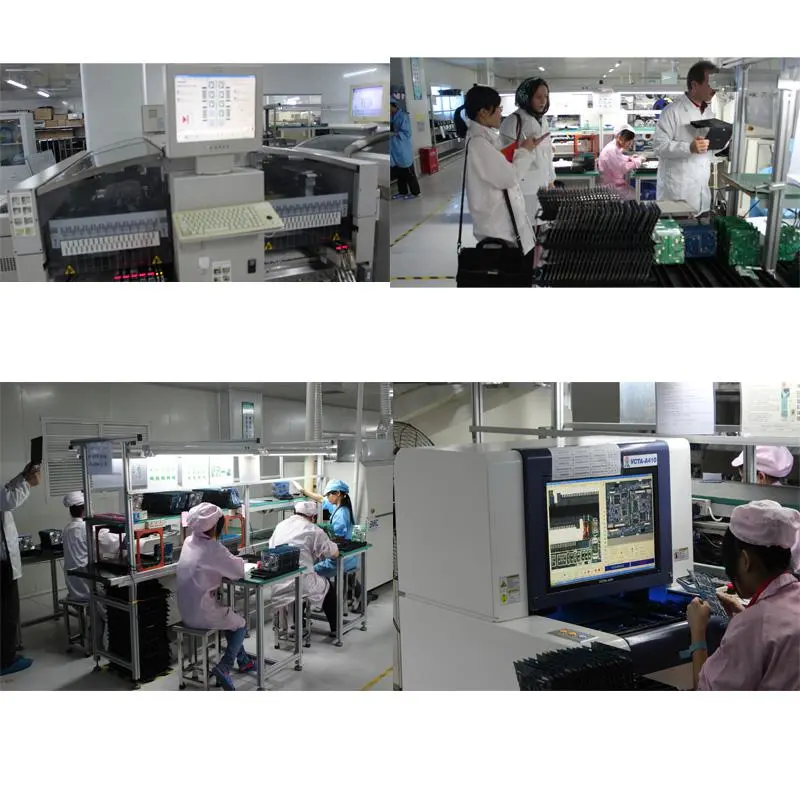

Customer visited our factory:

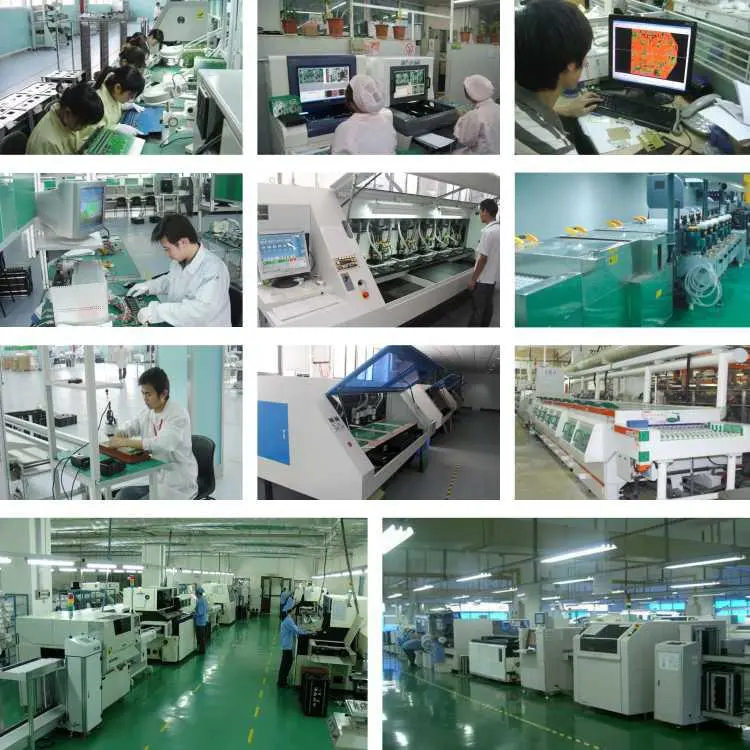

Factory manufacture machine:
flex pcb flat cable Packing:
Delivery and payment term
FAQ:
Q: What does XinDa need for a customized FPC order?
A: When you place a FPC order, the customers need to provide Gerber or FPC file. If you do not have the file in the correct format, you can send all the details related to the products.
Q:What is your testing policy and how you control the quality?
A:For sample, usually tested by flying probe; for FPC Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there’s many steps to FPC production, we usually do inspection after every step.
Q:FPC shipment?
A:This is depend on customer, sometimes we ship through our forwarder, who is also the agency of DHL, TNT, UPS, Fedex, and so on. Our forwarder can provide too much better freight cost than we get directly from those express enterprise.
Q: How about the service XinDa offered to the customers?
A: If you have any questions about our products or company, do not hesitate to send us your inquiry to our customer service representatives. Your satisfaction is our pursuits.
