Flex Circuit Strip
FPC46
Superior Flex LED Strip Circuit Boards FPC, Polyimide material, Immersion Nickel Gold surface finish, 1/2 Oz Min copper thickness, 0.15mm board thickness.This flexible pcb strip is used for LED Strip. We offer FPC manufacturing, FPC assembly service. With its small size and good flexibility, our FPC cable can be mainly used for LED, automotive.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
FPC Capability
| Items | FPC Process Capability |
| Number of Layers | Single Sided, Double Sided, Multilayer |
| Based Material | PI, PET |
| Copper Thickness | 9µm,12µm,18µm,35µm,70µm,105µm |
| Largest Board Area | 406mm X 610mm/16” X 24”, The largest could be 7 meters length in Single sided Flexible Printed Circuit Board |
| Minimum Hole Diameter of Mechanical Drilling | Ф0.2mm/0.008” |
| Minimum Hole Diameter of Laser Drilling | Ф0.075mm/0.003” |
| Minimum Hole Diameter of Hole-punching | Ф0.50mm/0.02” |
| Tolerance of Plated Through Hole | ±0.05mm/±0.02” |
| Minimum Line Width | 0.075mm/0.003” |
| Minimum Line Spacing | 0.075mm/0.003” |
| Peel Strength | 1.2kg f/cm |
| Shape Processing | Die Stamping, Cutting, Laser Prototyping |
| Appearance of Tolerance | ±0.05mm/±0.02” |
| Solder Mask Type | PI Solder Mask Coverlay Film or PET Solder Mask Covelay Film Lamination |
| Multi-colored Liquid Photo-Imageable solder Mask Ink, Thermosetting Solder Mask Ink | |
| Surface Treatment | Plating Tin, Immersion Tin, Plating Nickel Gold, ENIG (Electroless Nickel Immersion Gold),Immersion Nickel Gold, Chemical Nickel Gold,OSP( Organic Solderability Preservatives),Immersion Silver |
Advantages:
1. More than 10 years manufacturing experience in FPC field.
2. Near 12000 square meters production base.
3. Capable technical personnel consist of some industry experts and elites who are working for more than 10 years in FPC field.
5. Many advanced and complete production equipment for FPC Manufacturing.
6. All manufacturing process is only made in our plant.
7. Through the professional training, our sales team could offer the clients with the quick answer to the technology question, and the most professional suggestion on the optimization of artwork design. It would help to better improve the project rationality and decrease the production cost, thereby providing with the best cost-effective process plan.
8. All the raw materials passed ROHS certification through SGS and flammability UL94 V-0,inculding FCCL and Polyimide Coverlay Film.

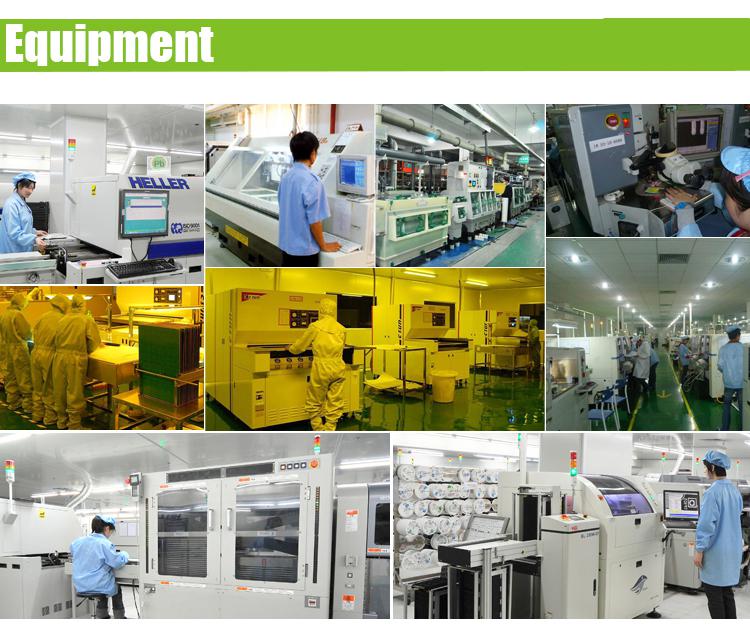

Production Equipment
FAQ
1. What kind of service you can provide for FPC?
A. We offer one-stop service of FPC/PCB/Rigid FPC manufacture, including FPC design, FPC manufacture, component sourcing, assembly.
2. What is the lead time?
A. Sample needs 4-5 days, mass production needs 7 - 10 days. It depends on the order volume.
3. What kind of FPC file format I need to submit for production?
A. Gerber files. If you need FPC assembly service, BOM is also needed.
4. Could it be OEM?
A. Yes we could only make it by OEM.
5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. After passed the inspection, it would be delivered.
