Flex Board Design Samples
FPC55
The flexible circuit board is a highly reliable, flexible printed circuit board made of polyimide or polyester film. Abbreviated as soft board or FPC, it has the characteristics of high wiring density, light weight and thin thickness. XD with its strong technical background can offer flex board design samples. We not only provide design service but also can provide prototype service.
Quantity:
0.00
Unable to ship to shipping address, please feedback to us
Technical Detail for FPC:
OEM/ODM/EMS Services for FPC
· FPC, FPC Board assembly: SMT & PTH & BGA
· PFC and enclosure design
· Components sourcing and purchasing
· Quick prototyping
· Plastic injection molding
· Metal sheet stamping
· Final assembly
· Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
· Custom clearance for material importing and product exporting
Why choose us?
We purchase material from Original Company and distributers.
We make products by strict engineer processes.
We have strict inspection processes.
We send products by vacuum package,anti-static package and carton box.

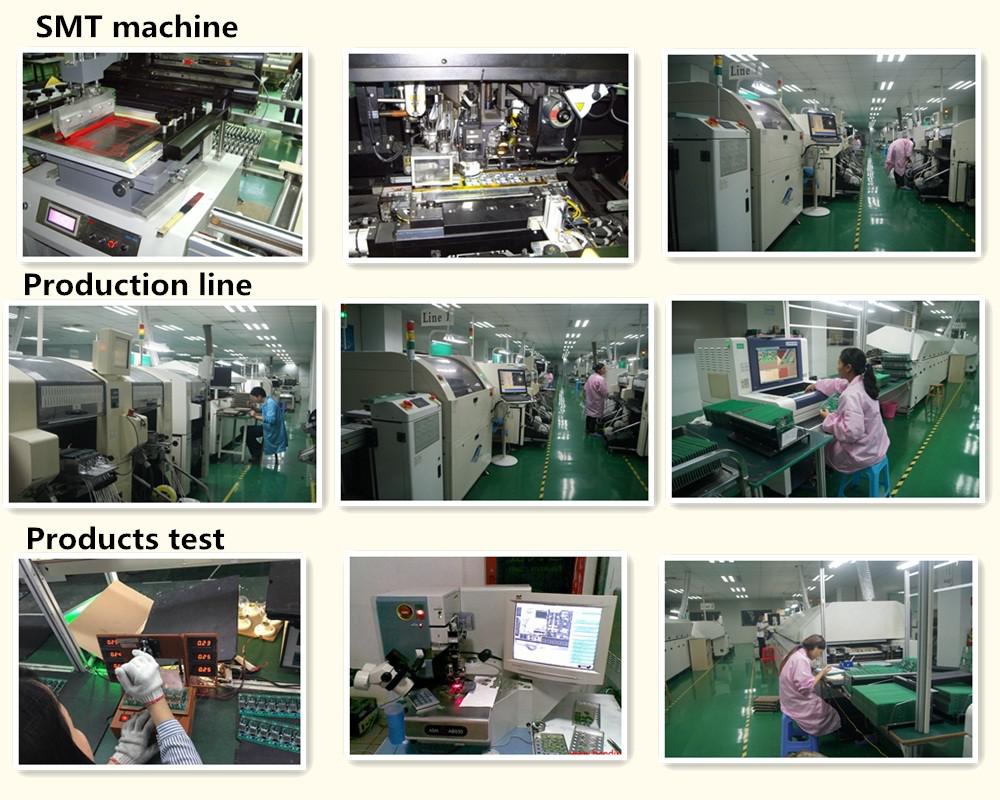

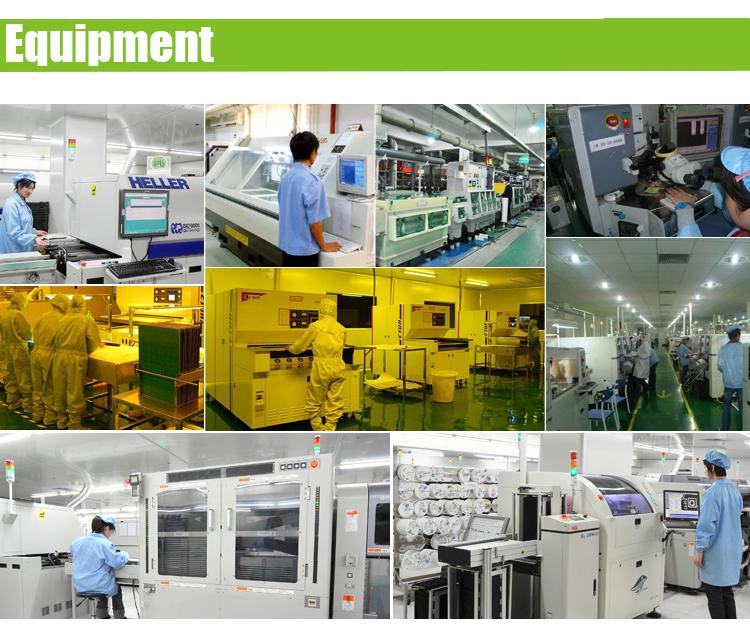

Workshop :
Trade show:
FAQ:
1. Are my design files secure when I send them to you?
Your files are held in complete safety and security.Your files are never shared nor will any third parties have access to your design files.XD can sign an NDA(Non-disclosure agreement) before sending files.
2. For small quantity orders, can you produce prototype PCBs?
Yes. XD can produce prototypes. but the greater the quantity, the greater the cost savings.
3. What file formats do you accept for PCB and assembly?
Gerber ,CAM Auto CAD DXF, DWG formats.
4. Do you have after-sales product servicing available for your customers?
Yes, for any quality problems XD will take our responsibility to solve it for you any time.
Flexible Circuit TECHNICAL PARAMETER
Rigid PCB Technical Specifications: base materials: FR 4 - others on request layer construction according to customer's specification minimum thickness: 0,6 mm maximum thickness: 3,2mm and up minimum drill size: 0,2 mm minimum track width: 0.1mm minimum track spacing: 0.1mm contours: scored, routed, punched surface finish: HAL,Lead free HAL,Immersion Gold,Immersion Tin. |
