Double sided flexible circuit (FPC) consists of double-sided copper clad material with top and bottom cover films (PI or Green/Yellow Oil, Carbon Ink, etc).  Two conductive layers with an insulating layer between, plus conver layers on outer layer. The cover films are pre-routed to access copper from both sides using plated thru holes(PTH).

Specifications of FPC:

Product name

FPC

Board Thickness

0.0765mm-0.6mm

Base Copper Thickness

1/3 oz to 2oz

Min. Hole Size

0.1mm

Layers of FPC

1 to 6 Layers

Surface Finishing

ENIG,OSP,HASL,Tin; plated silver;immersion silver

Certificate

UL，RoHs，ISO9001

Service

One stop service provided

Blind or Buried Vias

Yes

Impedance Control

Yes

Circuit to edge(hard tool/die cut)

±0.07/±0.2mm

Edge to edge(hard tool/die cut)

±0.05/0.2mm

Hole to edge(hard tool/die cut)

±0.1/±0.2mm

Characteristics of product:

  • This is the FPC that turns on the electric current in circuits on front and rear sides by through-hole plating.

  • More complex wiring is available than single sided FPC.

  • As the parts can be mounted on both surfaces, it is possible to use the space effectively.

  • The minute part to be mounted on surface can be mounted without reinforcing board.

Quality control FPC:
1. E-test for FPC.

2. IQC for components.

3. AOI test

4. FPCA function test

5. FQC

Our one-stop service for FPC(A):

1. FPC circuit boards.

2. E-test for FPC.

3. Electronic components purchasing.

4. IQC for components.

5. AOI test

6. FPC assembly: available on SMT, BGA, DIP.

7. FPCA function test.

8. Enclosure assembly

Application:

  • Optical Pick-up for A/V & Computer ( or CD-RW & DVD-RW)

  • Digital( or CCD ) Camera

  • LCD Module for Mobile Phone

  • Vibration Motor for Mobile Phone

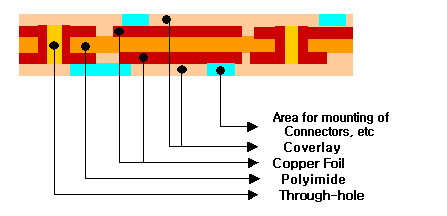

Double Sided FPC Structure:

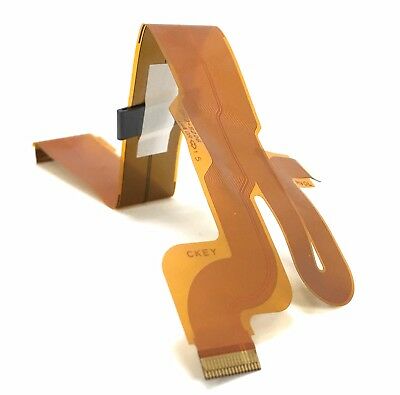

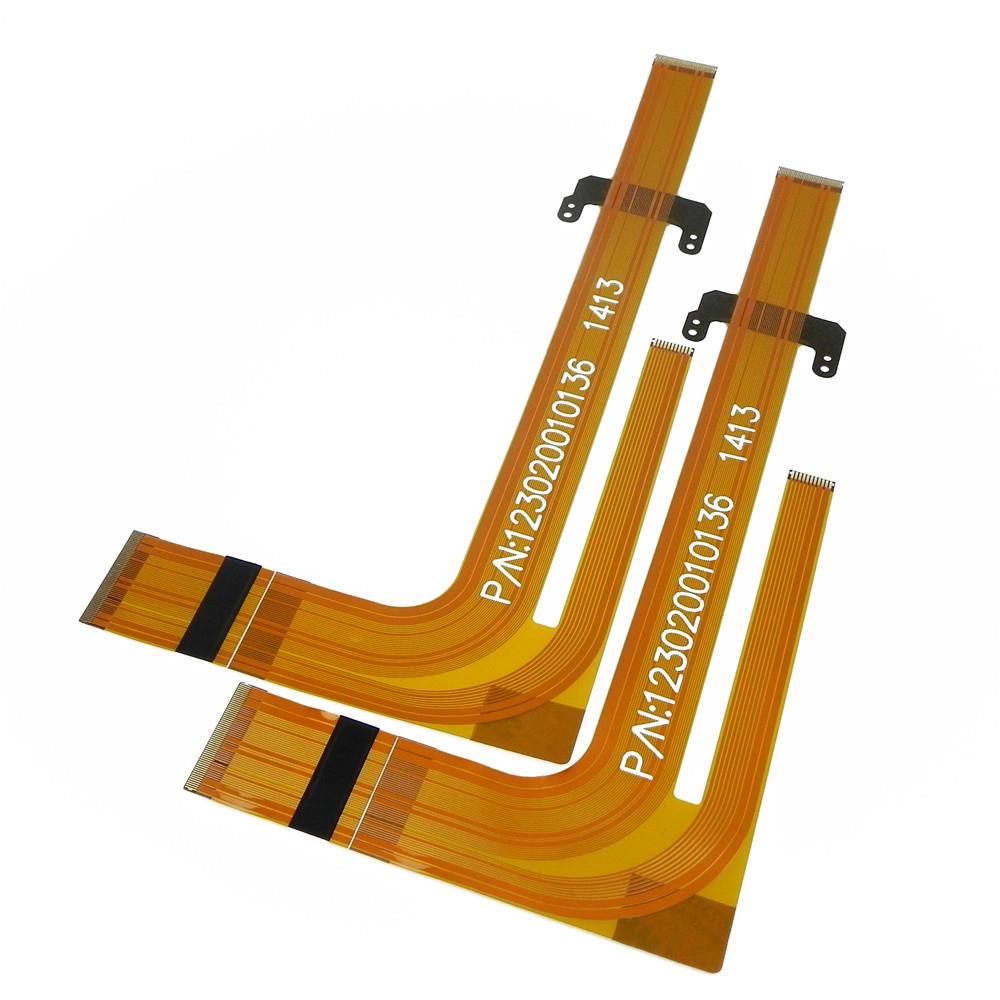

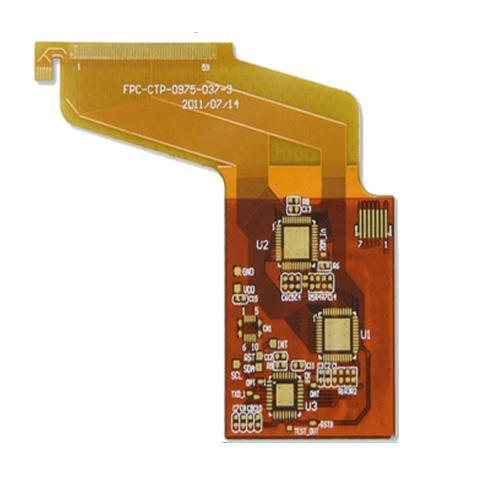

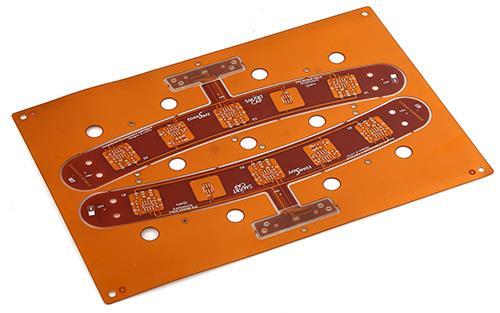

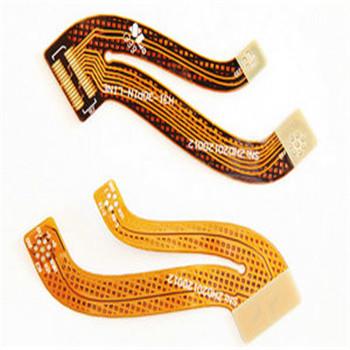

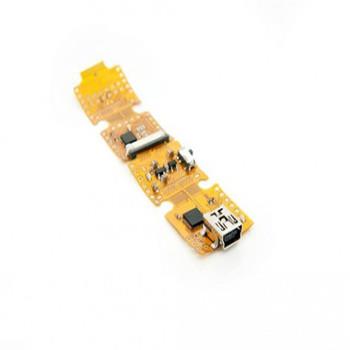

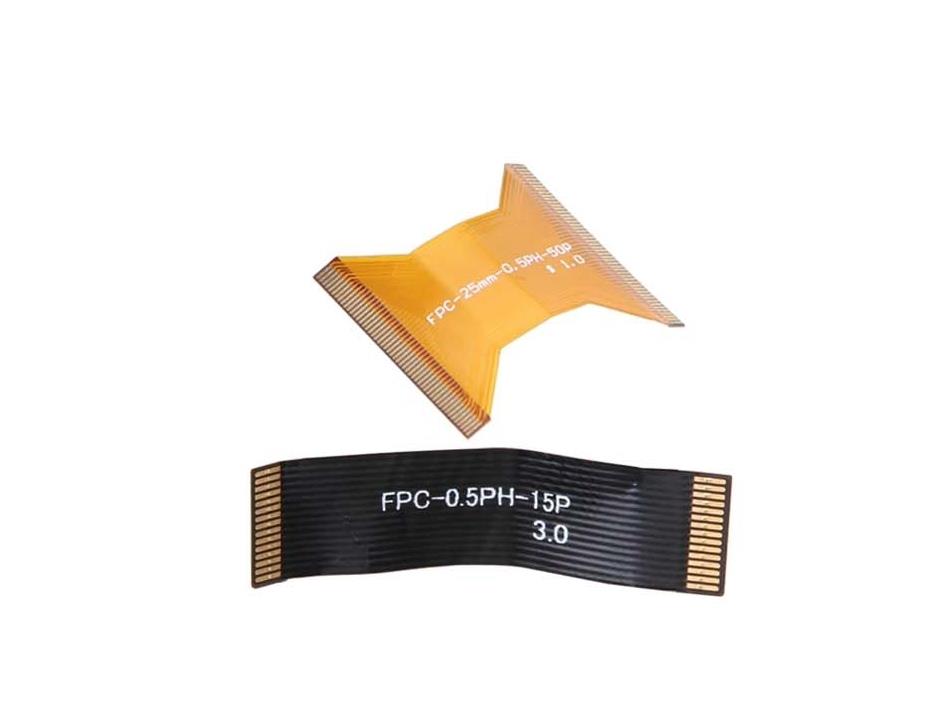

Our products:
