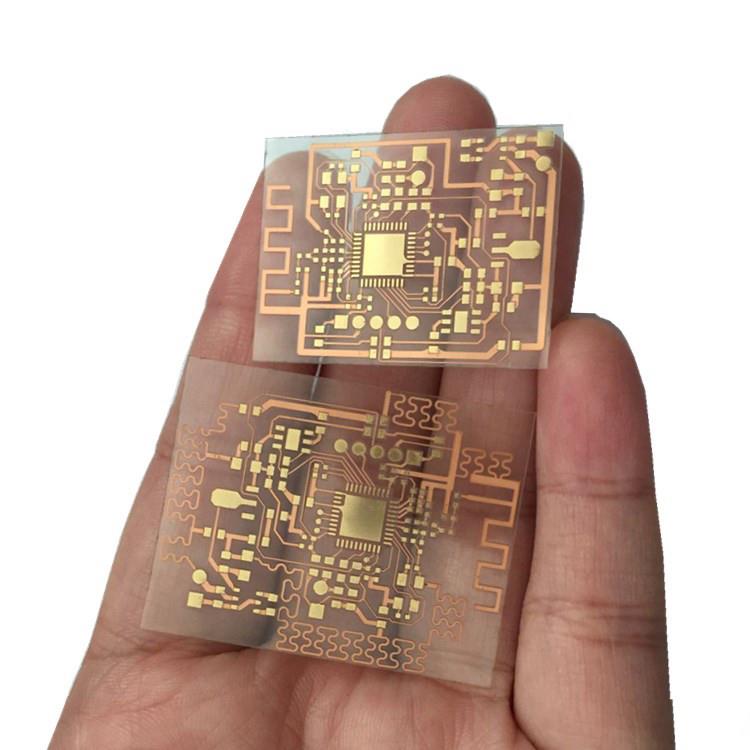

Magic Camera Transparent PET FPC
- Product Details
Welcome to SHENZHEN XINGDA Electric Technology Company
Product Description
We specialize in:
1) PCB design, PCB layout, PCB manufacturing, PCB Assemblies
2) One-stop services from PCB to PCB assembly
3) Components sourcing, PCBA Function Test, design solution.
4) Electronic testing circuit board or PCBA
5) Electronic manufacturing service
Main five types of products we are handling:
1) Rigid PCB
2) Flexible PCB, and rigid-flex PCB
3) Aluminum LED PCB and LED PCBA
4) PCBA assembly
5) Membrane switch and all kinds of keypads
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206, 0805,0603 components SMT technology
3) ICT(In Circuit Test), FCT (Functional Circuit Test) technology
4) PCB Assembly With UL,CE,FCC,ROHS Approval
5) Nitrogen gas reflow soldering technology for SMT
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
FPC Capability
Finished board dimensions | 10 x 15, 250 x 380mm |
Drill hole diameter | 0.15mm - 6.7mm |
Inner layer dielectric thickness (1/2 mils PI with 15um adhesive) | 0.0275mm - 0.1mm |
Hole diameter tolerance of PTH | ±2 mils |
Hole diameter tolerance of NPTH | ±1 mil |
Hole position tolerance (compared with Gerber data) | ±1 mil |
Thickness of PTH hole copper | 8μm - 30μm |
Solder mask alignment tolerance | ±3mil |
Tolerance after etching | generally ± 30, 15% for impedance |
Tolerance of image to edge (minimum) | ±2 mils |
Cover layer registration (minimum) | 6 mils |
Punching hole diameter | 0.1mm - 5.0mm |
Tolerance of pasting adhesive and stiffener | ±0.3mm |
Punching die dimension tolerance (hard die) | ±4 mils |
Punching die dimension tolerance (soft die) | ±12 mils |
Impedance tolerance (minimum) | ± 10% |
SMT tolerance and pitch width (minimum) | ±4 mils |

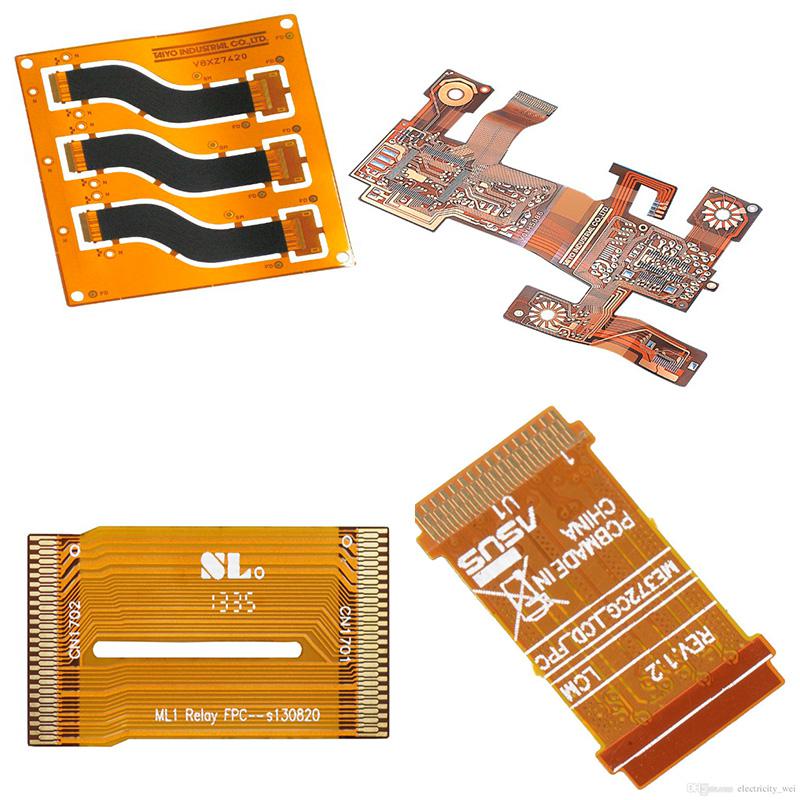

Our FPC products

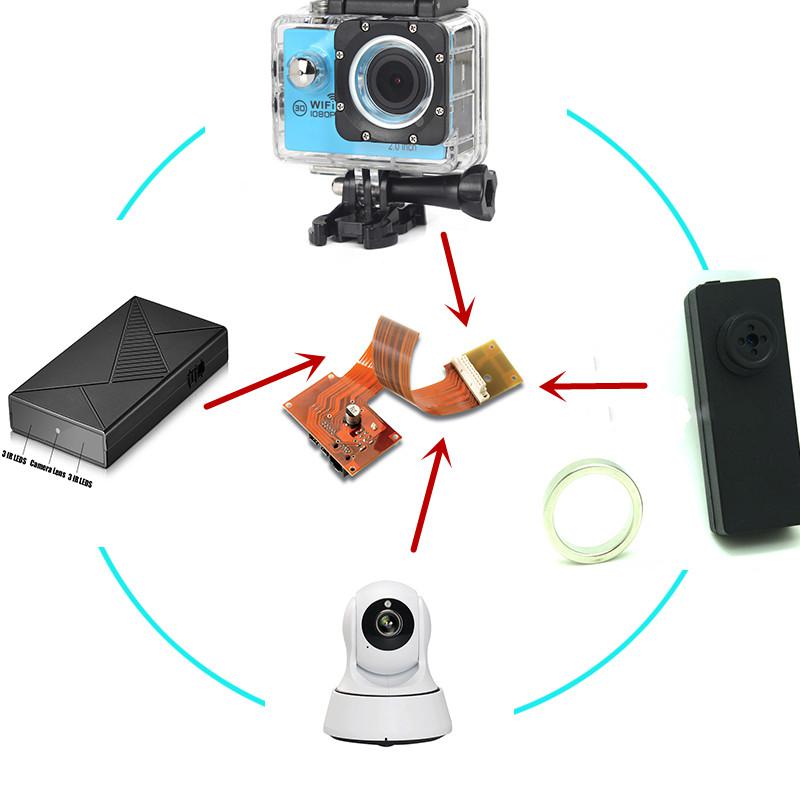

FPC application
FAQ
Q:Can you provide quick turn FPC?
A:Yes, we can provide quick time service 5-7 days.
Q:How can make sure no mistake for mass production?
A:The production files will be checked by our engineering teams. Samples will be offered for approval before mass production.
Q:What is your terms of delivery?
A:We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective foe you.
Q:How long can I expect to get the sample?
A:After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5days. You can use your own express account or prepay us if you do not have an account.
