Led Lights FPC Cable
FPC30
We are one of the leading FPC and SMT suppliers with good performance in China. We offer FPC manufacturing, FPC assembly service. FPC can be made into two shapes, board and cable. With its small size and good flexibility, our FPC cable is mainly used for LED strip lights.
Quantity:
0.00
Unable to ship to shipping address, please feedback to us
FPC Capability

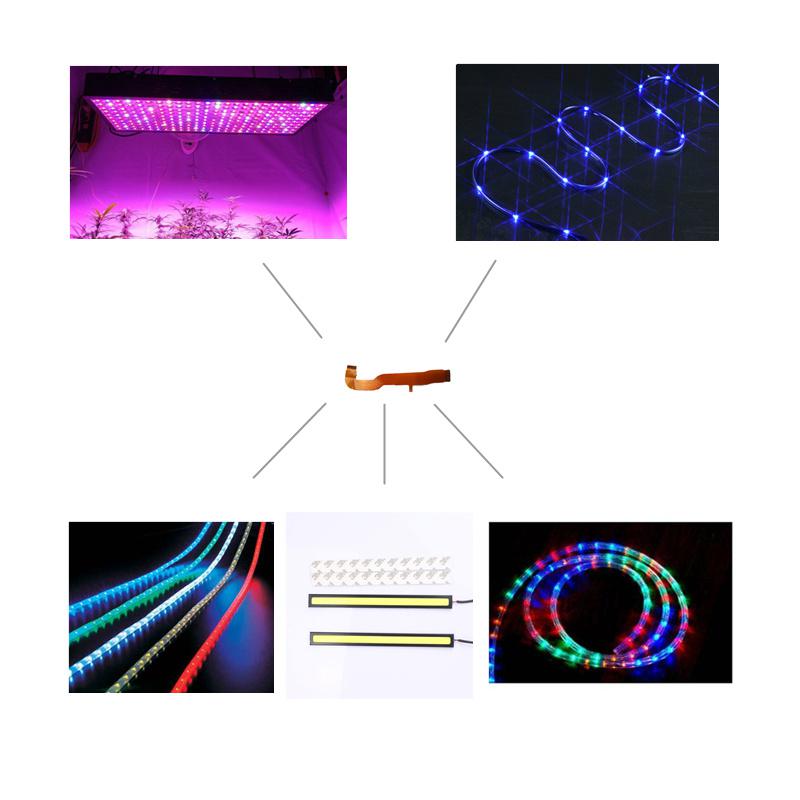

FPC Cable Application for LED Lighting
Why Choose Us?
1) We have professional engineering team to guarantee the good quality of FPCB.
2) No MOQ is required, and small orders are also welcome. We can provide service from prototype to mass production.
3) All products undergo 100% tested work before sent to you.
4) One stop FPCB solution is offered. (FPCB fabrication, components sourcing, FPCB assembly)
5) We have professional sales team, who can offer you satisfactory service before-sale and after-sale.

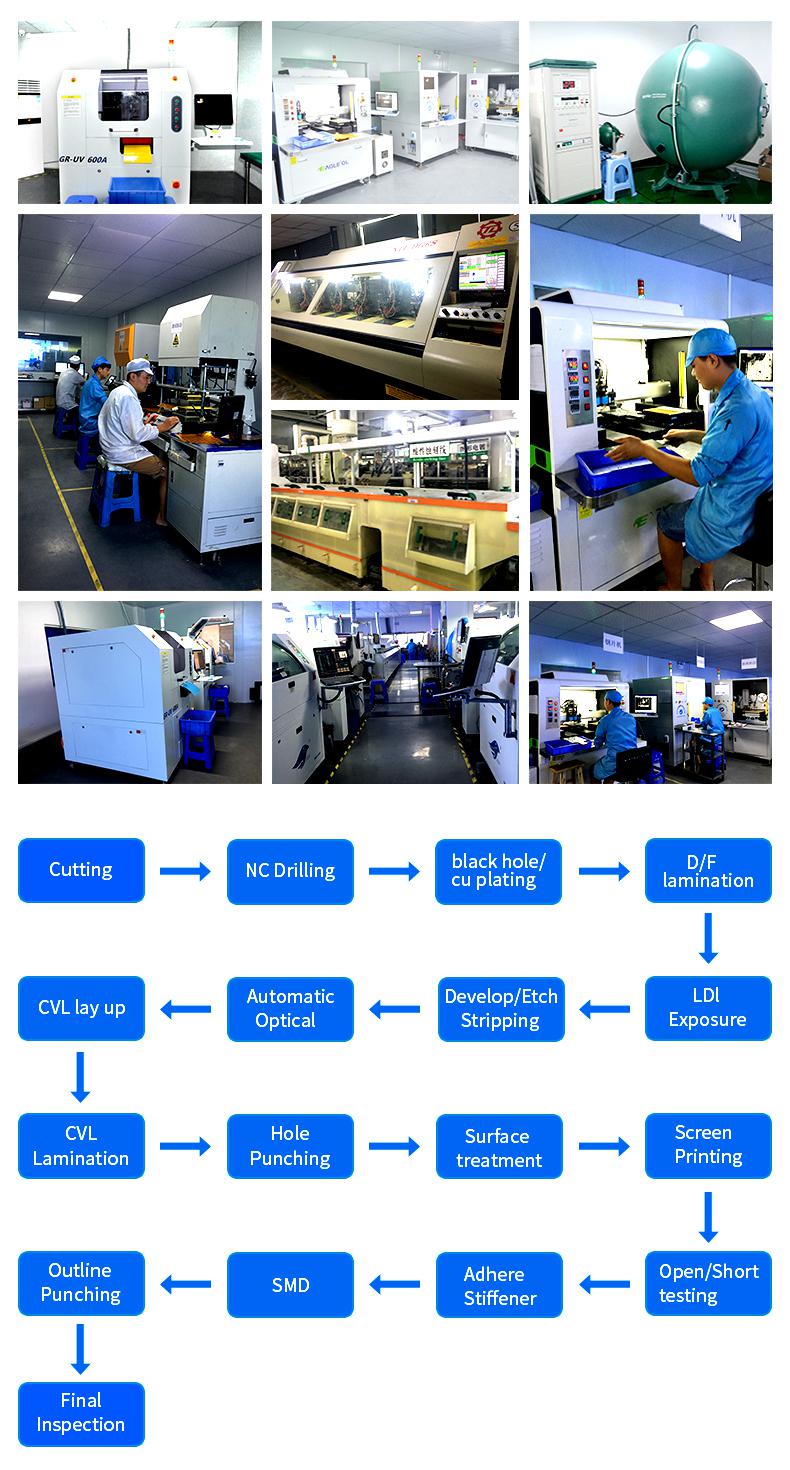

FPC Production Process
FAQ
1. What kind of service you can provide for FPC?
A. We offer one-stop service of FPC/PCB/Rigid FPC manufacture, including FPC design, FPC manufacture, component sourcing, assembly.
2. What is the lead time?
A. Sample needs 4-5 days, mass production needs 7 - 10 days. It depends on the order volume.
3. What kind of FPC file format I need to submit for production?
A. Gerber files. If you need FPC assembly service, BOM is also needed.
4. No FPC file/Gerber file, only have the FPC sample,can you produce it for me?
A. Send us the sample, and we will work out the Gerber files and clone the FPCB for you.
5. What payment terms do you accept?
A: For small orders, we usually prefer Paypal and Western Union; For volume order, TT is preferred.
| Material | Polyimide / Polyester |
| Counts | Flex: 1~8L; Rigid-Flex: 2~8L |
| Board Thickness | Min:0.05mm ; Max.:3.0mm |
| Copper Thickness | 1/3 oz --- 2 oz |
| CNC Drill Size (Max) | 6.5mm |
| CNC Drill Size (Min) | Flex: 0.15mm |
| Holes Location Tolerance | ±0.05mm |
| Coverlay Drill Size (Min) | 0.6mm |
| Hole to Coverlay Opening Windows (Min) | 0.15mm |
| Min Line Width / Spacing | 0.075/0.075mm |
| Aspect Ratio | 6:1 |
| Copper Thickness on Hole Wall | Flex:12-22μm |
| Min Pad Size | φ0.2mm |
| Etch Tolerance | Finished line width tolerance ±20% |
| Pattern Registration Tolerance | ±0.1mm (Working Panel Size: 250*300mm) |
| Coverlay Registration Tolerance | ±0.15mm |
| Solder Mask Registration Tolerance | ±0.2mm |
| Solder Mask to PAD | Non photosensitive: 0.2mm Photosensitive: 0.1mm |
| Min. Solder Mask Dam | 0.1mm |
| Misregistration Tolerance for Stiffener, Adhesive, Glue paper | ±0.30mm |
| Surface Finish | Plating Ni / Au ; Chemical Ni / Au ; OSP |
FPC Cable Application for LED Lighting
Why Choose Us?
1) We have professional engineering team to guarantee the good quality of FPCB.
2) No MOQ is required, and small orders are also welcome. We can provide service from prototype to mass production.
3) All products undergo 100% tested work before sent to you.
4) One stop FPCB solution is offered. (FPCB fabrication, components sourcing, FPCB assembly)
5) We have professional sales team, who can offer you satisfactory service before-sale and after-sale.
FPC Production Process
FAQ
1. What kind of service you can provide for FPC?
A. We offer one-stop service of FPC/PCB/Rigid FPC manufacture, including FPC design, FPC manufacture, component sourcing, assembly.
2. What is the lead time?
A. Sample needs 4-5 days, mass production needs 7 - 10 days. It depends on the order volume.
3. What kind of FPC file format I need to submit for production?
A. Gerber files. If you need FPC assembly service, BOM is also needed.
4. No FPC file/Gerber file, only have the FPC sample,can you produce it for me?
A. Send us the sample, and we will work out the Gerber files and clone the FPCB for you.
5. What payment terms do you accept?
A: For small orders, we usually prefer Paypal and Western Union; For volume order, TT is preferred.
