Polyimide Flexible Pcb Connector

FPC13
XingDa is a polyimide flexible pcb connector manufacturer based in Shenzhen,China.These FPCs are used for LCD display to drive circuit (PCB) connections, primarily based on 0.5mm pitch products. The 0.3mm pitch product has also been used in large quantities.
Quantity:
0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details


Introduction
XingDa is a polyimide flexible pcb connector manufacturer based in Shenzhen,China.These FPCs are used for LCD display to drive circuit (PCB) connections, primarily based on 0.5mm pitch products. The 0.3mm pitch product has also been used in large quantities.


Application
Polyimide flexible pcb connector are mainly used in various digital communication products, portable electronic products, computer peripherals, measuring instruments, automotive electronics and other fields, such as mobile phones, digital cameras, notebook computers, MID, MP345, handheld game consoles, audio systems,etc.


Parameter
ItemsCapabilities
LayersFPC:1 to 6 Layers, Rigid Flex: 2 to 10 Layers
Regular Base MaterialsKapton,Polyimide(PI), Polyester(PET), FR4
Base Copper Thickness1/3 oz to 8oz
Regular Base Material Thickness12.5um to 50um(FPC)
0.1mm to 3.2mm(Rigid)
Regular Coverlay Thickness27um to 50um
Regular Adhesive Thickness12um to 25um
Blind or Buried ViasYes
Impedance ControlYes
Min.Line Width/Spacing0.04mm/0.04mm
Surface FinishingElectroplate Ni/Au(Flash gold/Soft gold/Hard gold), ENIG, HASL, Immersion Tin,OSP
Outline FabricationDie cut, laser cut, CNC routing, V-scoring
Hole to edge(Hard tool/Die Cut)±0.1/±0.2mm
Edge to edge(Hard tool/Die Cut)±0.05/±0.2mm
Circuit to edge(Hard tool/Die Cut)±0.07/±0.2mm

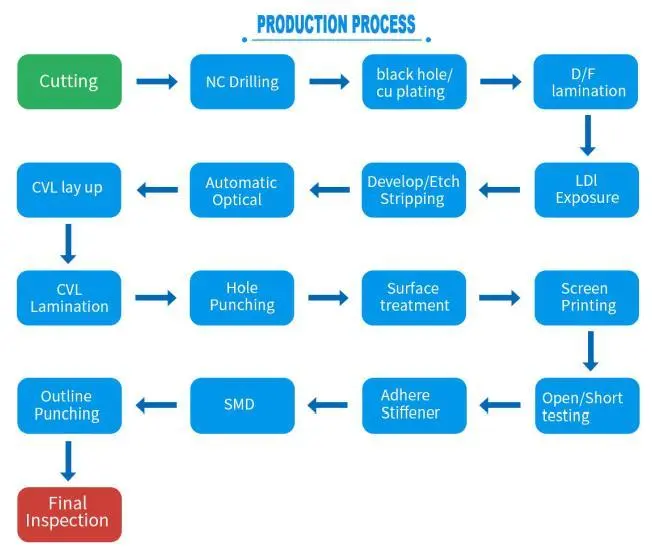

Production Process





Testing
AOI Testing
Check for line width and spacing
Check for solder paste
Check for components down to 0201"
Check for missing components, off set, incorrect parts, polarity
X-RAY Testing
Check for the BGAS
Check for the Micro BGAS
Check for the chip scale packages
Check for the Bare board
IN-Circuit Testing
Power-up Test
Function Test
Flash device programming

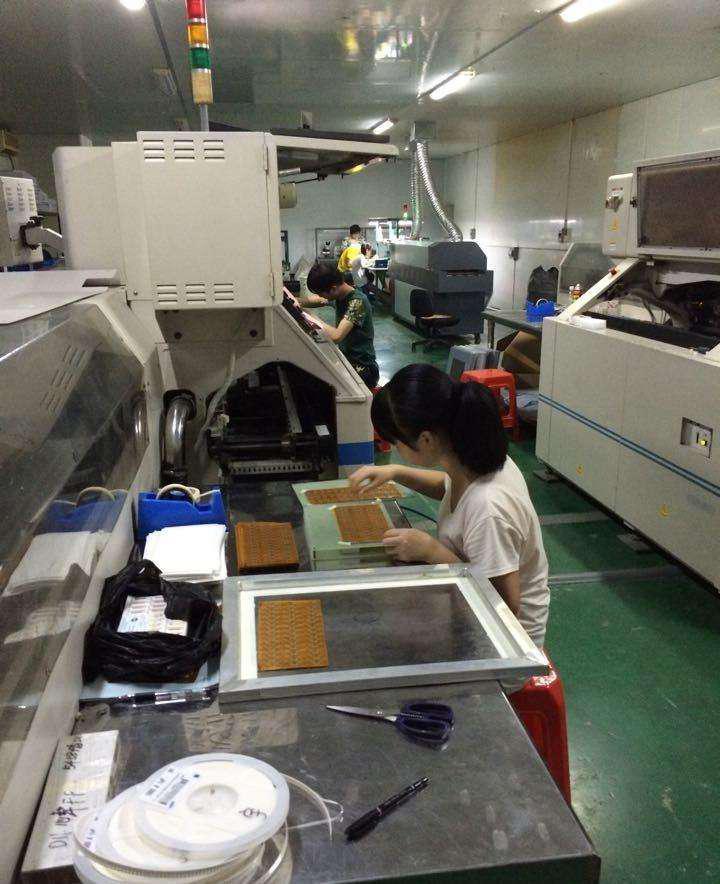

Production Workshop
