0.8mm Pitch Fpc Connector
FPC15
As the market trends towards miniaturization, FPC connectors have been developed to meet the challenges of this expanding. We mainly produce 0.8mm pitch fpc connector. We are the top supplier in the fpc industry. If you have 0.8mm pitch fpc connector requirements, please send us detailed design requirements.
Quantity:
0.00
Unable to ship to shipping address, please feedback to us
0.8mm pitch fpc connector production application:
Mobile phone
Emphasis on the light weight and thin thickness of the flexible circuit board can effectively save the product volume, easily connect the battery, microphone, and the button into one.
Computer and LCD
Utilizes the integrated circuit configuration of the flexible circuit board, and the thin thickness. Turns the digital signal into a picture and presents it through the LCD screen.
Newest production application:
Components of a hard disk drive (HDD, hard disk drive) suspension circuit (Su Yinsen.n cireuit) and xe package board
The wireless charging coil array concentrates electromagnetics in a certain area to reduce space transmission consumption, thereby improving power conversion efficiency.
0.8mm pitch fpc connector process parameter:
Quotation request:
To ensure an accurate quote, be sure to include the following information for your project:
•GERBER files
•Quantity
•Parameter Requirements
Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.

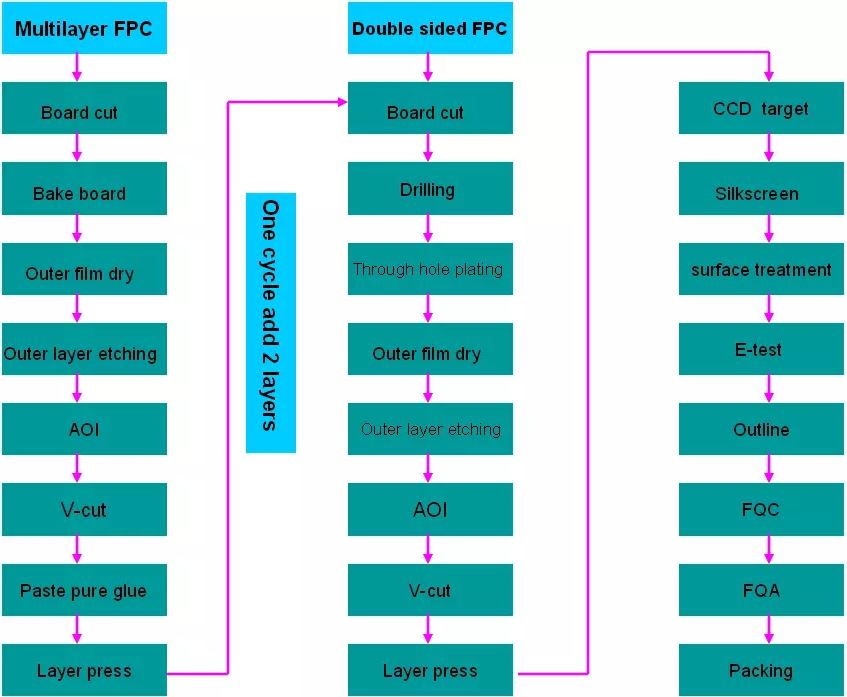

0.8mm pitch fpc connector process:

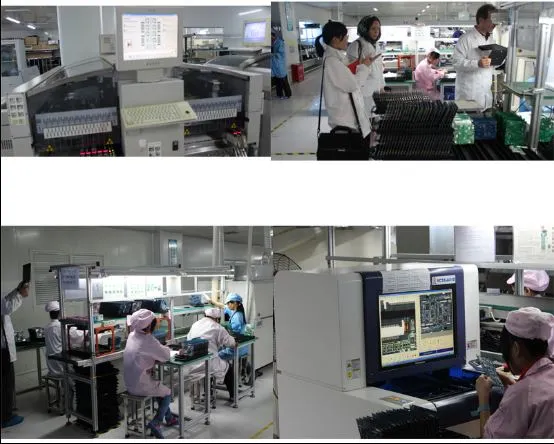

Customer visit our company:
Mobile phone
Emphasis on the light weight and thin thickness of the flexible circuit board can effectively save the product volume, easily connect the battery, microphone, and the button into one.
Computer and LCD
Utilizes the integrated circuit configuration of the flexible circuit board, and the thin thickness. Turns the digital signal into a picture and presents it through the LCD screen.
Newest production application:
Components of a hard disk drive (HDD, hard disk drive) suspension circuit (Su Yinsen.n cireuit) and xe package board
The wireless charging coil array concentrates electromagnetics in a certain area to reduce space transmission consumption, thereby improving power conversion efficiency.
0.8mm pitch fpc connector process parameter:
| Items | Capabilities |
| Layers | FPC:1 to 6 Layers, Rigid Flex: 2 to 10 Layers |
| Regular Base Materials | Kapton,Polyimide(PI), Polyester(PET), FR4 |
| Base Copper Thickness | 1/3 oz to 8oz |
| Regular Base Material Thickness | 12.5um to 50um(FPC) |
| 0.1mm to 3.2mm(Rigid) | |
| Regular Coverlay Thickness | 27um to 50um |
| Regular Adhesive Thickness | 12um to 25um |
| Blind or Buried Vias | Yes |
| Impedance Control | Yes |
| Min.Line Width/Spacing | 0.04mm/0.04mm |
| Surface Finishing | Electroplate Ni/Au(Flash gold/Soft gold/Hard gold), ENIG, HASL, |
| Outline Fabrication | Die cut, laser cut, CNC routing, V-scoring |
Quotation request:
To ensure an accurate quote, be sure to include the following information for your project:
•GERBER files
•Quantity
•Parameter Requirements
Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.
0.8mm pitch fpc connector process:
Customer visit our company:
