Double-sided PCB with Partial Thick Gold Plating on Small Spot

XDCPCB67
Product Details Key Specifications/Special Features: Double layer Technology: partial thick gold plating on small spot Sophisticated computer-controlled testing machines keepopen-circuits, short-circuits and high-resistance leakage incheck Main Export Markets: Asia Central/South America Any...
Quantity:
0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Specifications of Double-sided PCB:

Product

Double-sided PCB

Material

FR-4, FR1,FR2; CEM-1, CEM-3,Rogers, Teflon,Arlon,Aluminum

Base, Copper Base,Ceramic, Crockery, etc.

Copper Thickness

1/2 oz min; 12oz max

Finish Board Thickness

0.2 mm-6.00mm(8mil -126mil)Surface Finish

Surface Treatment

Solder Mask(black, green, white, red, blue, thickness>=12um, Block,

BGA)

Silkscreen(black, yellow, white)

Peel able-mask(red, blue, thickness>=300um)

Surface Finish

Gold finger, Immersion Gold, Plating

Gold, HASL, OSP

Shape

Routing、Punch、V-cut、Chamfer

Conductor Width(W)

+/-0.05mm(2mil) or +/-20% of original

Hole Diameter(H)

PTHL:+/-0.075mm(3mil)

Non PTHL:+/-0.05mm(2mil)

Conductivity

<50ohm

Warp & Twist

0.70%

Insulation Resistance

10Kohm -20Mohm

Panel Size

110 x 100mm(min)

660 x 600mm(max)

Min Trace Width & Line Spacing

0.075mm /0.075mm (3mil/3mil)

Min Hole Diameter for CNC Drilling

0.1mm(4mil)

Min Hole Diameter for Punching

0.6mm(35mil)

Hole Position

+/-0.075mm(3mil) CNC Drilling

Test Voltage

10-300V

Layer-layer misregistration

4 layers:0.15mm(6mil)max

6 layers:0.25mm(10mil)max

 Special Features:

  • Double layer

  • Technology: partial thick gold plating on small spot

  • Sophisticated computer-controlled testing machines keepopen-circuits, short-circuits and high-resistance leakage incheck

WHY CHOOSE US?

High Quality

ISO9001, RoHs, UL, certified company, we have a very robust quality system and professional quality team;

Reliable Supply Chain,We have established long-term strategic cooperation with the top electronic components manufacturers all over the world, such as Xilinx, TI, Avnet, Future and etc;High manufacturing capability, our PCB can reach a max layers of 64, minimum placement component size can meet 0201 and minimum placement spacing of BGA can meet 0.3mm;We have complete inspection and testing for PCBA, including SPI,AOI,ICT,FCT,X-RAY,ROHS and aging.

Quick Response

We offer fast and opened BOM quotation to customers;10 years of cooperation experience with European and North American clients, quickly and professionally respond customer requirements.

One Stop Service

We professionally offer the service of PCB Assembly (SMT, DIP, MI, AI), component procurement, product final assembly, testing, PCBA conformal coating, electronic product design and peripheral products support, etc;Our factory is located in Shenzhen, and besides we have warehouses in Hongkong, Europe and North America. We can prepare boards at the warehouse which is close to the customer and afford Kanban service according to customer requirements.

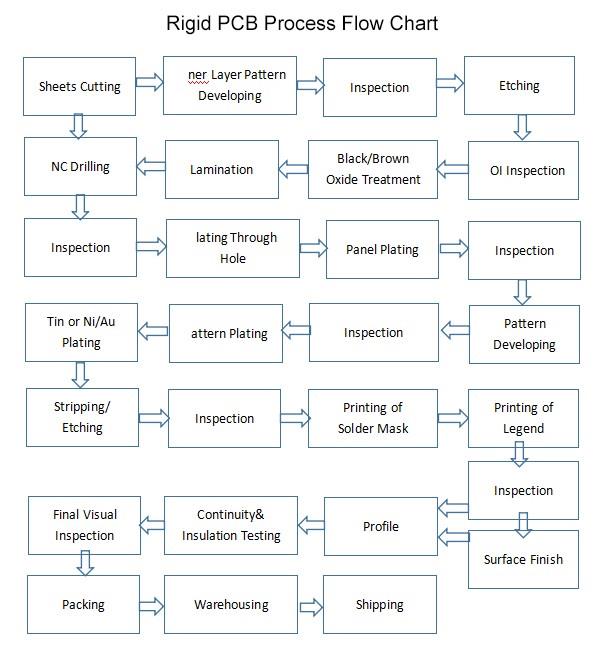

PCB Manufacture Process:
