Aluminum Copper Clad Laminated PCB
ALPCB014
Aluminium copper clad laminats PCB is widely used for the modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etc. Thermal conductivity can be 0.5~2.0w.And Heat Resistance can be <2.0*10-4k.m2/W.Better service,better quality.
Quantity:
0.00
Unable to ship to shipping address, please feedback to us
Aluminum copper clad laminated pcb technical parameter
Our advantage:
1. Free programming and free functional test, free package.
2. Test type: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% funtional test.
3. Professional assembly service. ISO SMT and through hole assembly, over 10 years experience.
4. Quality guarantee Certification : UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001
5. Warranty period : 5 years.

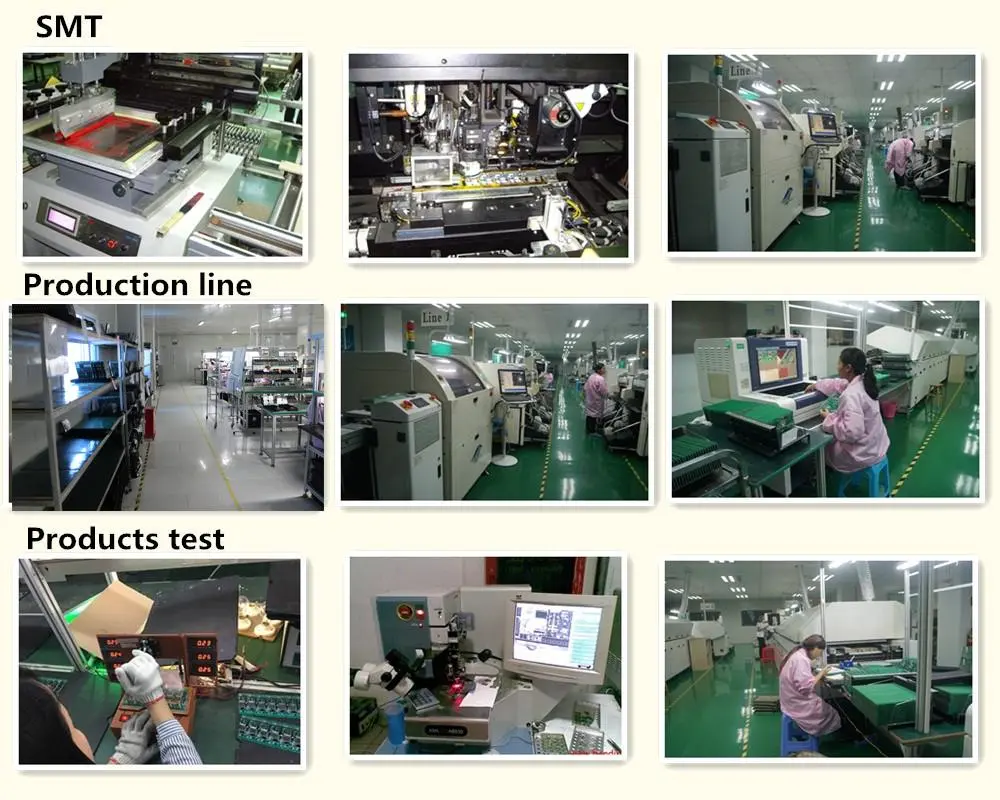

Our Factory
Packaging & Shipping
| Item Name | Aluminum copper clad laminated pcb |
| Thermal conductivity | 0.5~2.0w |
| Thickness | 0.4~1.6mm |
| Volume Resistivity | ≥1.0 ×106MΩ-cm |
| Thermal Stress | 288℃≥120Sec |
| Peel Strength | >6 LBC/In |
| Bow/Twist | <1.5% |
| Surface Resistivity | ≥1.0 ×104MΩ |
| Standard Size | 600*1200mm or your request |
| Application | LED lamp |
| Material | Aluminium Core |
| Copper Thickness | 0.5~8OZ |
| Dielectric Breakdown | ≥2KW |
| Heat Resistance | <2.0*10-4k.m2/W |
| Glass Transition | E2/105℃ |
| Moisture Absorption | <1.5% |
| Flamm ability | FV-0 |
| Certifacation | ISO/SGS/UL |
Our advantage:
1. Free programming and free functional test, free package.
2. Test type: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% funtional test.
3. Professional assembly service. ISO SMT and through hole assembly, over 10 years experience.
4. Quality guarantee Certification : UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001
5. Warranty period : 5 years.
