Aluminum ENIG 94v-0 Strip SMD Led PCB Board

ALPCB012
Aluminum ENIG 94v-0 Strip SMD Led PCB Board. Aluminum in particular is often used to manufacture circuit boards for LED lights. The aluminum PCB typically includes a thin layer of thermally conductive dielectric material that can transfer and dissipate the heat with much greater efficiency than a traditional rigid PCB.
Quantity:
US $0.00
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Product Details

Specifications of Led PCB Board:

Material

FR-4; FR2; ALU,ect.

Copper Thickness

1/2 oz min; 12oz max

Finish Board Thickness

0.2 mm-6.00mm(8mil -126mil)Surface Finish

Surface Finish

Gold finger, Immersion Gold, Plating

Gold, HASL, OSP

Shape

Routing、Punch、V-cut、Chamfer

Surface Treatment

Solder Mask(black, green, white, red, blue, thickness>=12um, Block,

BGA)

Silkscreen(black, yellow, white)

Peel able-mask(red, blue, thickness>=300um)

Hole Position

+/-0.075mm(3mil) CNC Drilling

Service

PCBA,PCB&PCBA Design

SMT

Certification

ISO 9001:2008/ISO 14001:2004/

Efficiency

QFP,TQFP,BGA,QFN,PLCC,SOT,SOIC

Testing Service

Omron AOI/X-Ray/ICT/Solder

Shipping

Sea/Air shipment/Express Courier

Component Precision

Up to 01005,0201,0402

Aluminum PCBs:

Among all Metal core PCBs (aka MCPCBs, known for their ability to provide effective thermal dissipation for electronic products), Aluminum PCBs is the most common type - the base material consists of aluminum core with standard FR4. It features a thermal clad layer that dissipates heat in a highly efficient manner, while cooling components and increasing the overall performance of the products. Currently, Aluminum Backed PCBs is regarded as the solution to high power and tight tolerance applications.

PCB LED Applications:

PCB LED lights can be incorporated into numerous lighting applications due to their combination of excellent energy efficiency, low cost and maximum design flexibility. Examples include Automotive headlights, Airport runway landing lights, Lighting used in military field applications, Street lighting, Highway tunnel lighting, Photovoltaic (solar) lighting, Flashlights and lanterns, Traffic and signal lighting, Lighting in hospital operating rooms, High growth plant lighting and many others.

One-stop service for Aluminum PCBA:

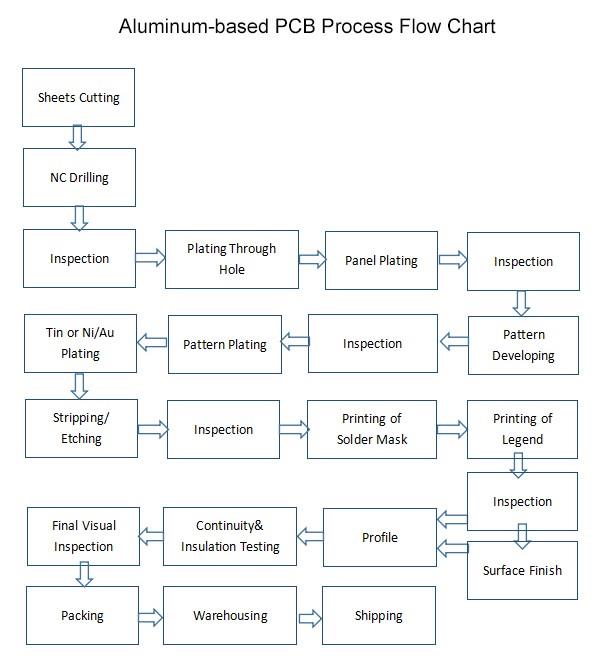

Aluminum-based PCB Process Flow Chart:

Alu PCB
