XDW027-A0-MWB

WiFi+BLE Module XDW027-A0-MWB Electronic Components for Industrial Wireless Control

minimum order
1 piece
Country of Origin
ShenZhen Port
Quantity:
$1.52 / piece
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Manufacturer Part Number:XDW027-A0-MWB
  • Type:Module
  • Place of Origin:Guangdong, China
  • Manufacturer:Original
  • Manufacturing Date Code:22+
  • Package:Surface Mount
  • RAM Size:256KB
  • Size / Dimension:18mm*15mm*2.3mm
  • Operating Temperature:-20℃~+85℃
  • Voltage - Supply (Vcc/Vdd):-0.3V-3.9V
  • Part Number:XDW027-A0-MWB
  • MOQ:1
  • Quality guarantee:original
  • Condition:New and Original
  • Part Status:in stock
  • Description:XDW027-A0-MWB

WiFi+BLE Module XDW027-A0-MWB Electronic Components for Industrial Wireless Control



Welcome to XingDa Electric Technology Co.,Ltd

Xindaxing Electric Technology Co.,ltd



 Product Description:

This module is a cost-effective WIFI+BLE module, supports BLE dual-mode 5.1 and IEEE 802.11 b/g/n protocol standards, supports lightweight TCP/IP protocol stack, and supports STA, AP and Direct modes. Users can use this module to add networking capabilities to existing equipment or to build stand-alone network controllers.

1.1. Product Features

Main frequency: 120MHz

Built-in low-power 32-bit MCU, can be used as application processor

Built-in 256KB RAM

Operating voltage: 3.3V

        Peripherals:6xPWM,2xUART,1xSPI,2x I2C ,18xGPIO,5xADC

WIFI main features:

Support 802.11 b/g/n standard protocol

Support WIFI + Dual Mode BLE 5.1

Built-in lightweight TCP/IP stack

Built-in TR switch, Balun, LNA, PA, and integrated on-board antenna

Support remote firmware OTA upgrade, support to start the upgrade through AT command

Support STA, AP and Direct mode

1.2 Main application areas

smart building

Smart Home/Appliances

 medical instruments

        Industrial Wireless Control

smart bus

2. Specifications

    Dimensions:

   The module adopts stamp hole + gold finger design, the overall size of PCBA is  18mm*15mm*2.3mm.

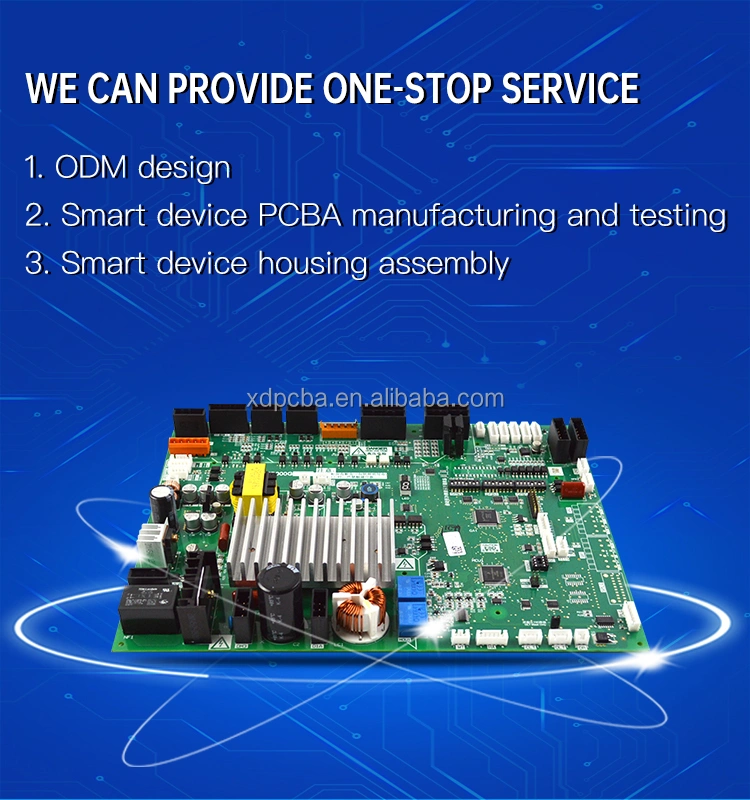

Our Services:

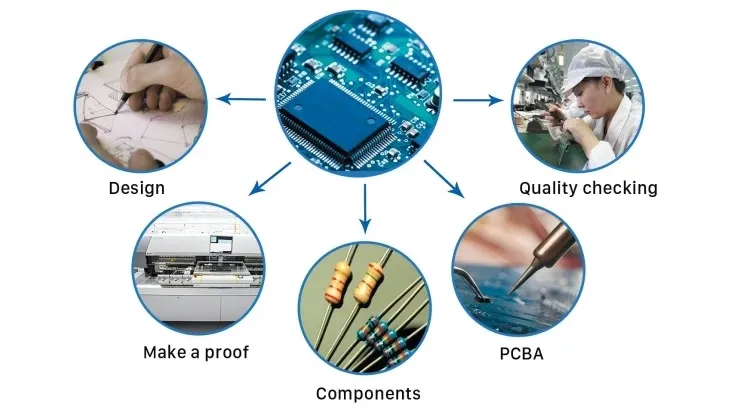

We are a professional PCBA manufacturer, and provide customers with a complete set of OEM and EMS services.



PCB Assembly (SMT) Product Capacity:



SMT Capacity

SMT Item

Capacity

PCB Max. size

510mm*1200mm(SMT)

Chip component

 0201, 0402, 0603, 0805, 1206 package

Min.pin space of IC

0.1mm

Min. space of BGA

0.1mm

Max.precision of IC assembly

±0.01mm

Assembly capacity

≥8 million piots/day

DIP capacity

6 DIP production lines

Assembly testing

Bridge test,AOI test, X-Ray test, ICT(In Circuit Test),FCT(Functional Circuit Test)


FCT(Functional Circuit Test)

Current test, voltage test, high temperature and low temperature test,Drop Impact Test,aging test,water proof test,leakage-proof test and etc.Different test can be done according to your requirement.

Datasheet
 Available

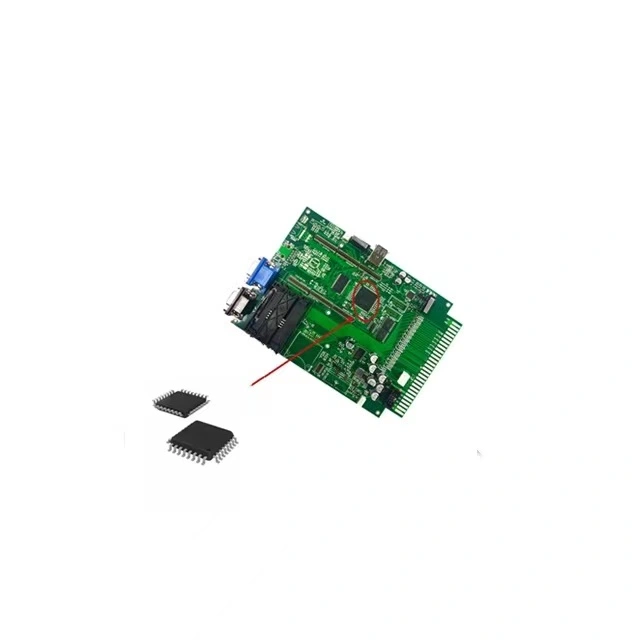

Product Application

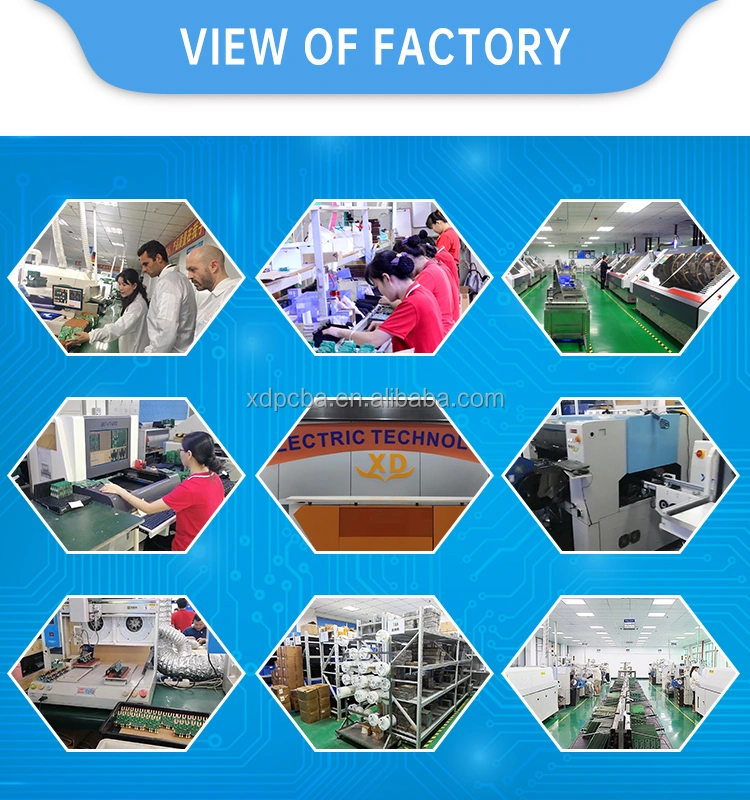

View of Factory





Customer Visiting



Exhibition Show:







FAQ

Q1:Are you a factory or trade company?

A: XingDa is a professional OEM&ODM manufacturer.



Q2:What payment do you accept?

A: TT/ Western Union/ Paypal/ Unistream.



Q3: What's your shipping way?

A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.

    2. If you have your own forwarder, we can cooperate with them.



Q4: How about the MOQ?

A: No

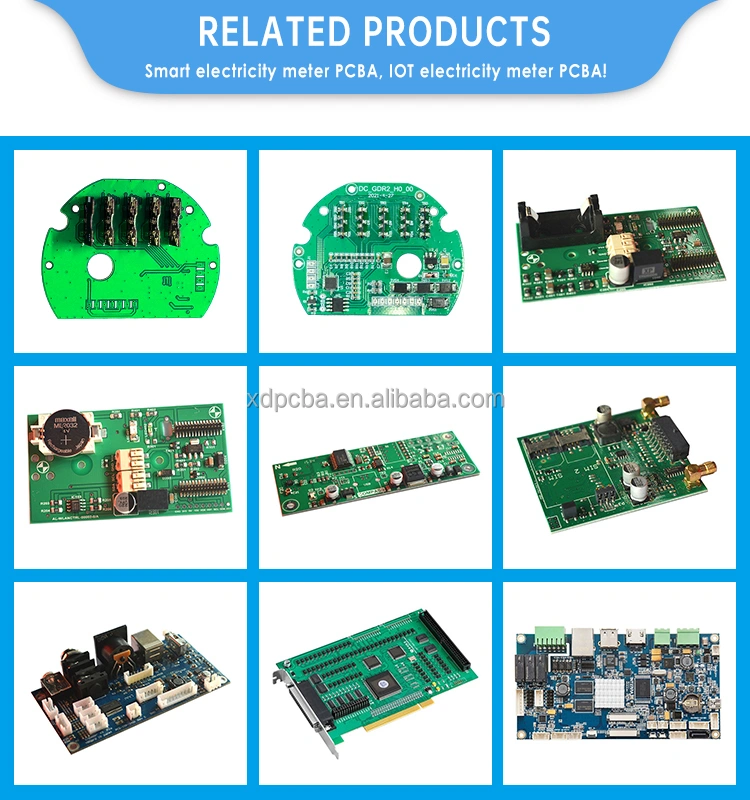

Related Products
