WiFi+BLE Module

WiFi+BLE Module XDW006a-A0-MWB Electronic Components for Smart buildings house medical devices

XDW006a-A0-MWB
Delivery
EXW
minimum order
1000 pieces
Country of Origin
ShenZhen
Quantity:
US $1.21 / pieces
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Model Number:XDW006a-A0-MWB
  • Type:Module
  • Place of Origin:Guangdong, China
  • Brand Name:Original
  • D/C:22+
  • Package:Surface Mount
  • Brand:XDW006a-A0-MWB
  • RAM Size:276KB
  • Size / Dimension:15mm*19.5mm*2.8 mm
  • Operating Temperature:-20℃~+85℃
  • Voltage - Supply (Vcc/Vdd):2.1V~3.63V
  • Part Number:XDW006a-A0-MWB
  • MOQ:1
  • Quality guarantee:original
  • Condition:New and Original
  • Part Status:in stock

WiFi+BLE Module XDW006a-A0-MWB Electronic Components

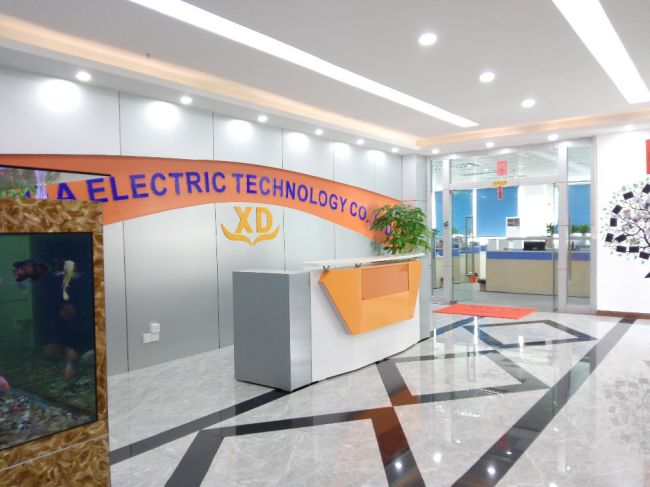

Welcome to XingDa Electric Technology Co.,Ltd

Xindaxing Electric Technology Co.,ltd

Product Description:

This module is a complete WiFi+BLE solution that supports coexistence of WiFi and BLE. The module can run independently, and can also communicate with an external MCU through a serial port (SPI/I2C).

This module supports IEEE 802.11 b/g/n protocol standard and BLE 5.0 baseband, supports lightweight TCP/IP protocol stack, and supports STA and AP modes. Users can use this module to add networking capabilities to existing equipment, or to build stand-alone network controllers.

1.1. Product Features:

128KB ROM ,276KB RAM ,eFuse 1Kbit and 16Mbit Flash Built-in: 128KB ROM, 276KB RAM, eFuse 1Kbit and 16Mbit Flash

Operating voltage: 2.1V-3.63V

DFS (Dynamic Frequency Scaling) from 1MHz to 192MHz

Peripherals:

Support UART/SPI/I2C/SDIO/PWM/ADC/DAC/IR remote

Support WiFi+BLE5.0

Support 802.11 b/g/n standard protocol

Built-in lightweight TCP/IP stack

Built-in TR switch, Balun, LNA, PA, and integrated on-board antenna

Support remote firmware OTA upgrade, support through AT command to start the upgrade

Support STA, AP working mode

Support WPS/WEP/WPA/WPA2/WPA3 security protocol

Support HT20

1.2. Main application areas:

Smart buildings

Smart Home/Appliances

Medical Devices

webcam

Intelligent bus

2.Dimensions

This module adopts 31pin stamp hole design, the overall size is 15mm*19.5mm*2.8 mm.

Our Services:

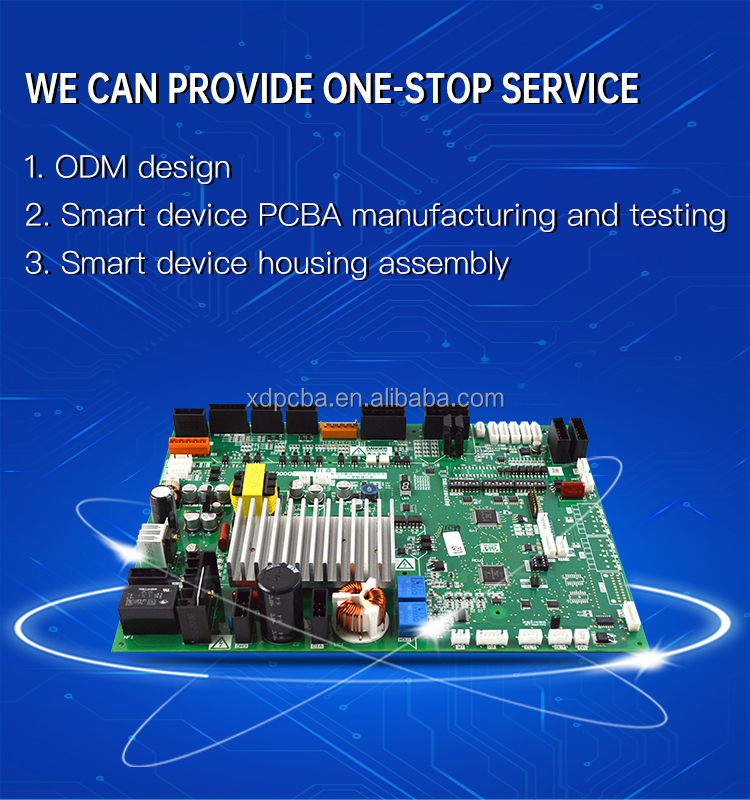

We are a professional PCBA manufacturer, and provide customers with a complete set of OEM and EMS services.

PCB Assembly (SMT) Product Capacity:

SMT Capacity

SMT Item

Capacity

PCB Max. size

510mm*1200mm(SMT)

Chip component

0201, 0402, 0603, 0805, 1206 package

Min.pin space of IC

0.1mm

Min. space of BGA

0.1mm

Max.precision of IC assembly

±0.01mm

Assembly capacity

≥8 million piots/day

DIP capacity

6 DIP production lines

Assembly testing

Bridge test,AOI test, X-Ray test, ICT(In Circuit Test),FCT(Functional Circuit Test)


FCT(Functional Circuit Test)

Current test, voltage test, high temperature and low temperature test,Drop Impact Test,aging test,water proof test,leakage-proof test and etc.Different test can be done according to your requirement.

Datasheet
Available

Product Application

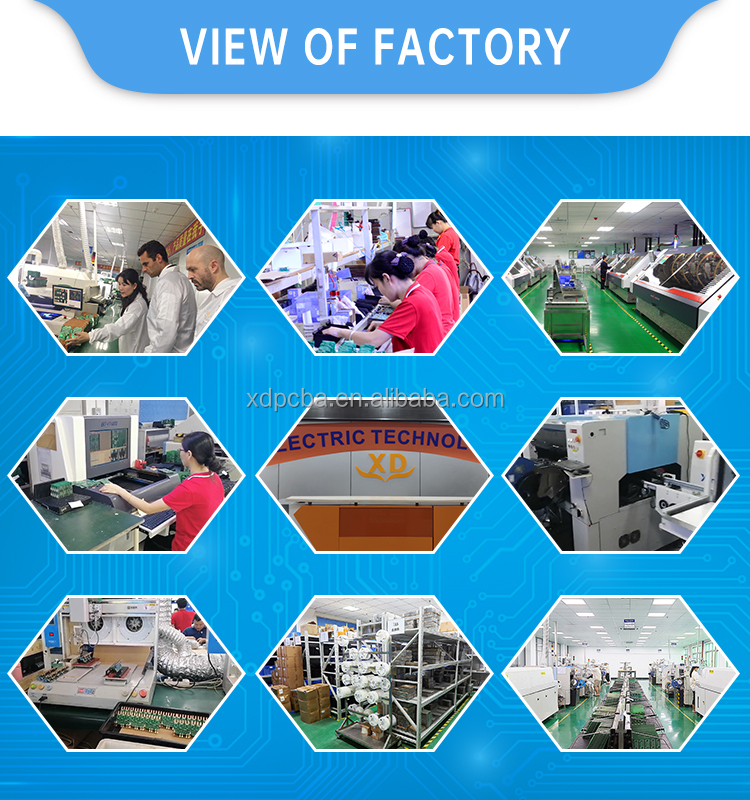

View of Factory

Customer Visiting

Exhibition Show:

FAQ

Q1:Are you a factory or trade company?

A: XingDa is a professional OEM&ODM manufacturer.

Q2:What payment do you accept?

A: TT/ Western Union/ Paypal/ Unistream.

Q3: What's your shipping way?

A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.

2. If you have your own forwarder, we can cooperate with them.

Q4: How about the MOQ?

A: No

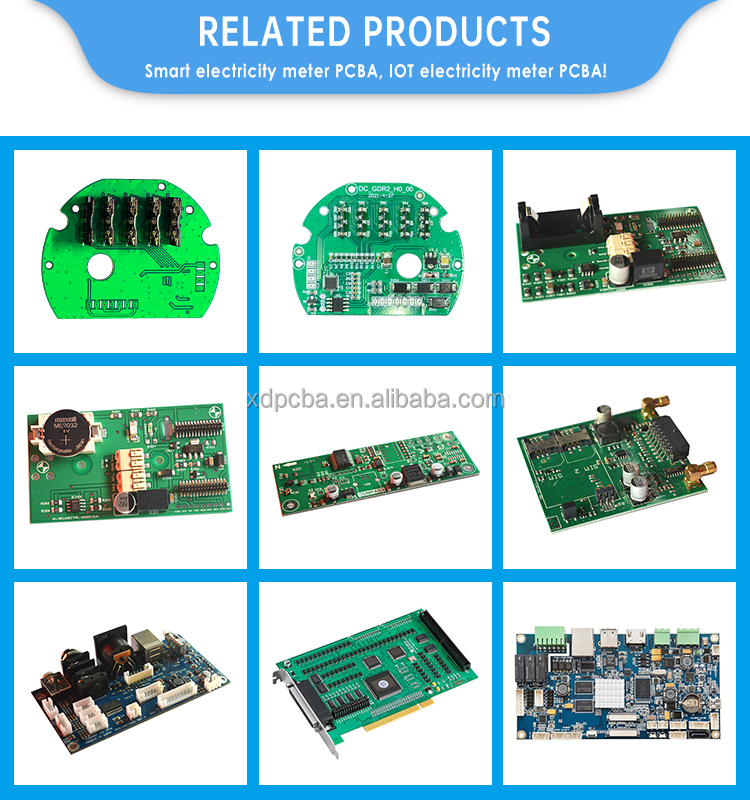

Related Products

Packaging & Shipping

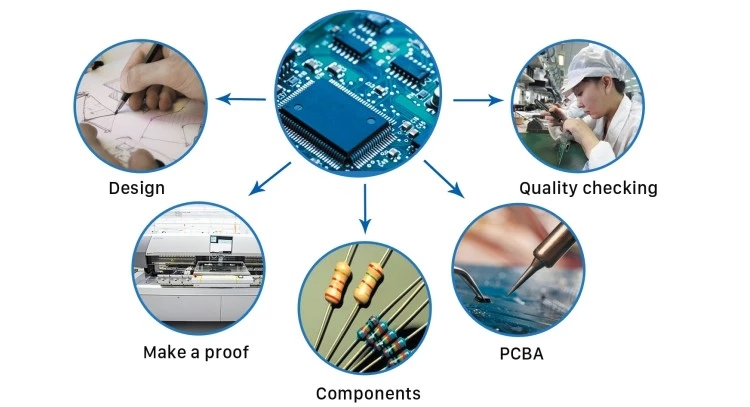

Our Service
