ceramic pcb

Vehicle Fuel level sensor Ceramic PCB

Ceramic PCB
Country of Origin
shenzhen
Quantity:
$1.50 / piece
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Model Number:Ceramic PCB
  • Place of Origin:Guangdong, China
  • Brand Name:xingda
  • Base Material:Ceramic/Aluminium nitride Ceramic
  • Copper Thickness:3 OZ
  • Board Thickness:0.2mm-6.00 mm(8mil-126mil)
  • Min. Hole Size:0.1mm(4mil)
  • Min. Line Width:0.075mm(3mil
  • Min. Line Spacing:0.1mm4mil)
  • Surface Finishing:Gold, silver
  • Insulation Resistance:10Kohm-20Mohm
  • Conductivity:::<50ohm
  • Outline Tolerance:::0.125mm(5mil) CNC
  • Routing;::;+/-0.15mm(6mil) by Punching
  • Hole Diameter(H):::PTH L:+/-0.075mm

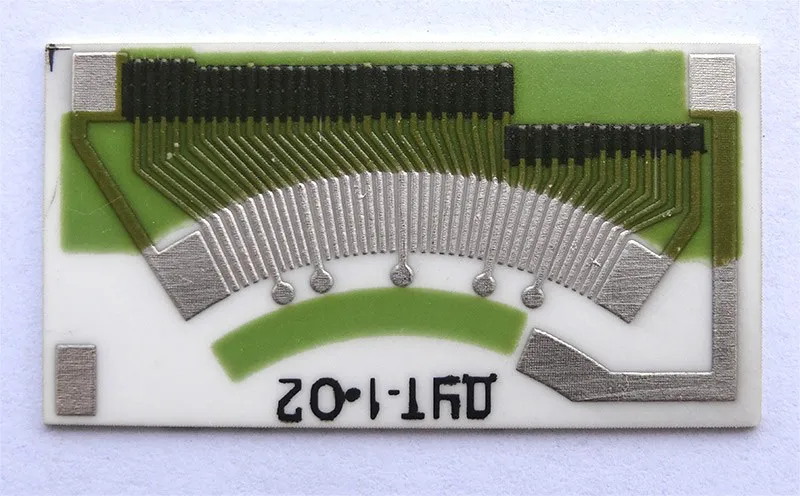

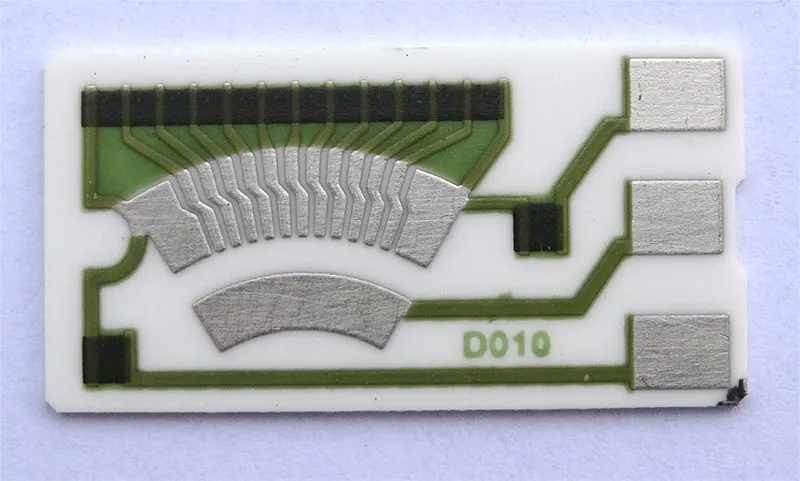

      Vehicle Fuel level sensor Ceramic PCB







Welcome to XingDa Electric Technology Co.,Ltd









Item

Test Condition

unite

senior

 material

Ceramic/Aluminium nitride Ceramic /Alumina 99.5%/Alumina 99%

Color status







average crystal size



μm

3-5

volume density



g/cm2

>3.74

water absorption



%

0

Vickers hardness

Load 4.9

Gpa

>15

flexural  Strength

Bending moment 80mm

Mpa

>324

Linear Coefficient of Thermal Expansion

20-500℃

20-800℃

1×10-

mm/℃

605-7.5

6.5-8.0

thermal conductivity

20℃

W(m-k)

>370

Dielectric intensity



Kv/mm

>12

Volume Resistance

20℃

300℃

500℃

-cm



>1014

>1011

>109

Dielectric Constant

1MHz



9.3-10.6

dielectric loss

1MHz



3×10-4

Thermal - shock

850℃

times

>7

roughness of the surface

Ra(λ2)

μm

0.20-0.75







Our services

One-stop  OEM ODM  PCBA manufacturer

We are professional  manufacturer in  various PCB and PCBA with 9 years experience, we can provide a reasonable price with high quality products.







SMT Capacity

SMT Item

Capacity

PCB Max. size

510mm*1200mm(SMT)

Chip component

1206 0805 0603 0402 0201 package

Min.pin space of IC

0.1mm

Min. space of BGA

0.1mm

Max.precision of IC assembly

±0.01mm

Assembly capacity

≥8 million piots/day

DIP capacity

6 DIP production lines

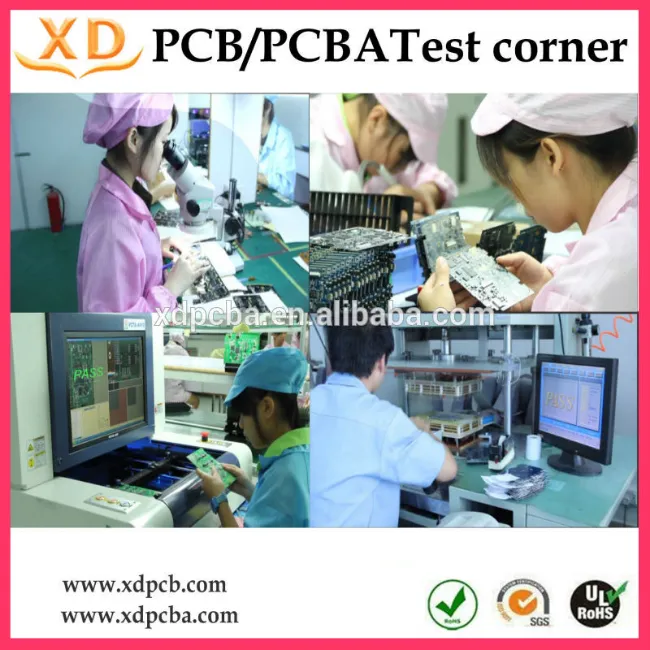

Assembly testing

Bridge test,AOI test, X-Ray test, ICT(In Circuit Test),FCT

(Functional Circuit Test)


FCT(Functional Circuit Test)

Current test, voltage test, high temperature and low

temperature test, Drop Impact Test,aging test,

water proof test,leakage-proof test and etc.

Different test can be done according to your requirement.

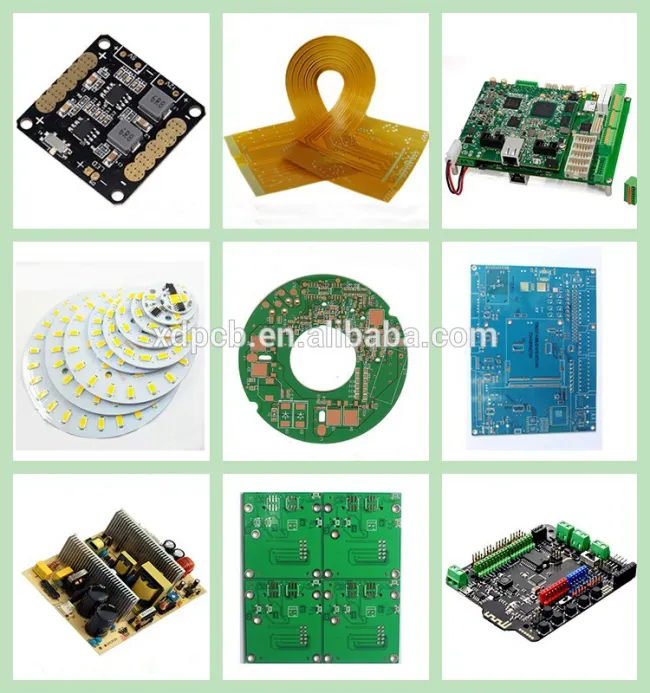

Finished Products



9 years focus on high quality Ceramic PCB, FPC and PCBA!

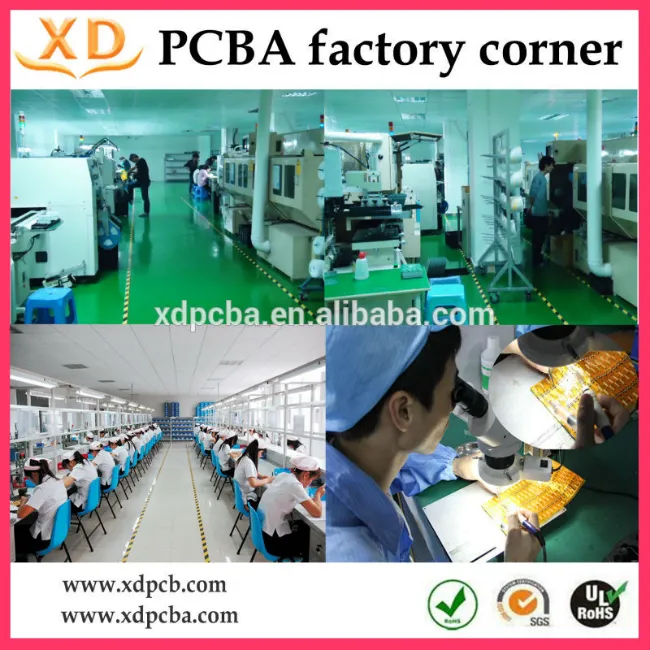

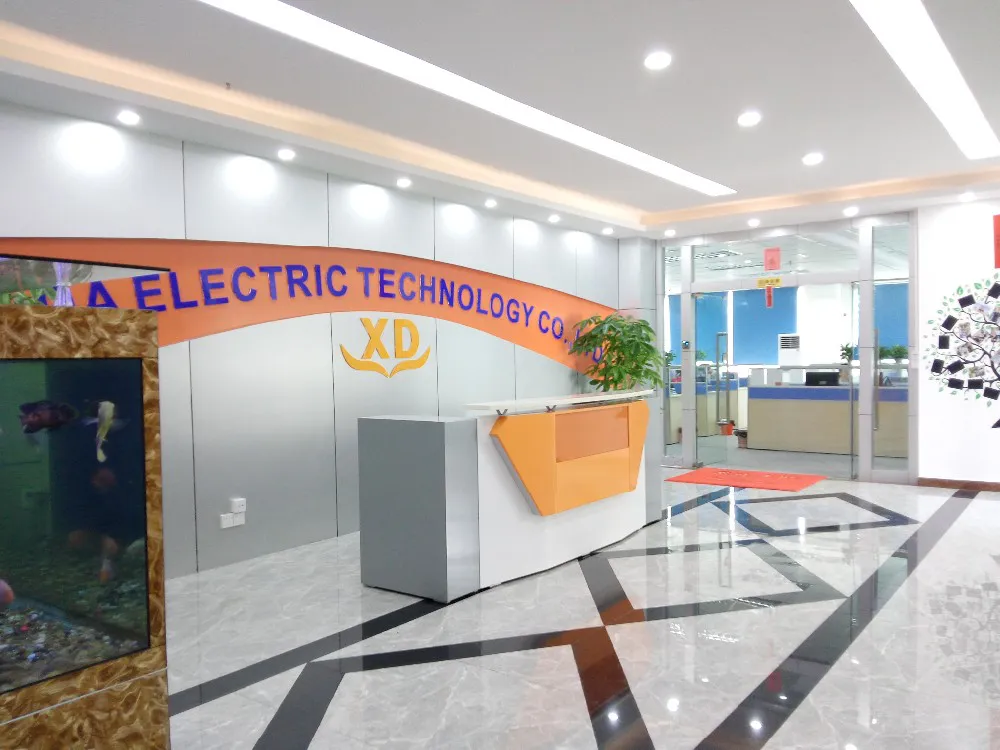

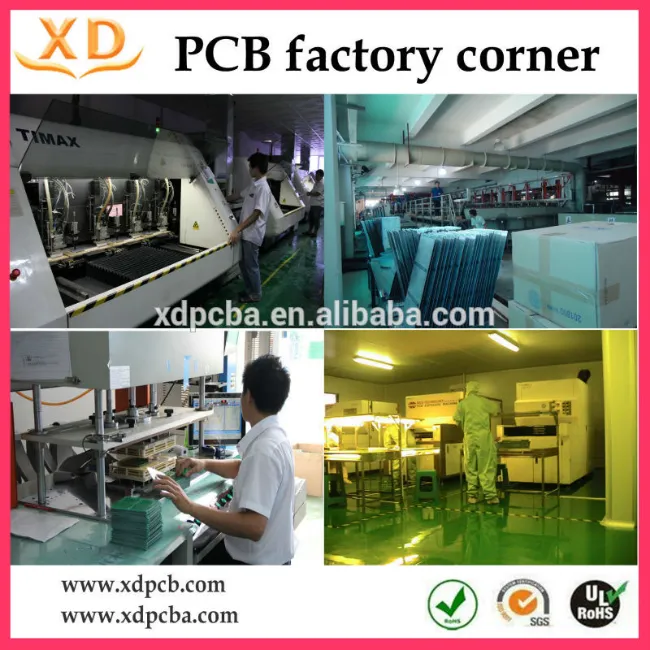

Factory







Trade Shows



Customer visiting







Exhibition Show:











Certifications









FAQ





Q1: Are you a factory or trade company?

A: XingDa is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBs Board for 9 years.



Q2: Is my PCB file safe if I send it to you for manufacturing?

A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.



Q3: What payment do you accept ?

A: TT/ Western Union/ Paypal/ Unistream.



Q4: What's your shipping way ?

A: 1. We have our own forwarder to ship goods by   DHL, UPS, FEDEX, TNT,EMS.

     2. If you have your own forwarder, we can cooperate with them.



Q5: How about the MOQ?

A: For PCB: 1 pcs

    For PCBA: 1 pcs



Q6: What's your main market?

 A: Europe, USA, Brazil, Russia, Turkey, Austrialia, Singapore...







Packaging&Shipping
