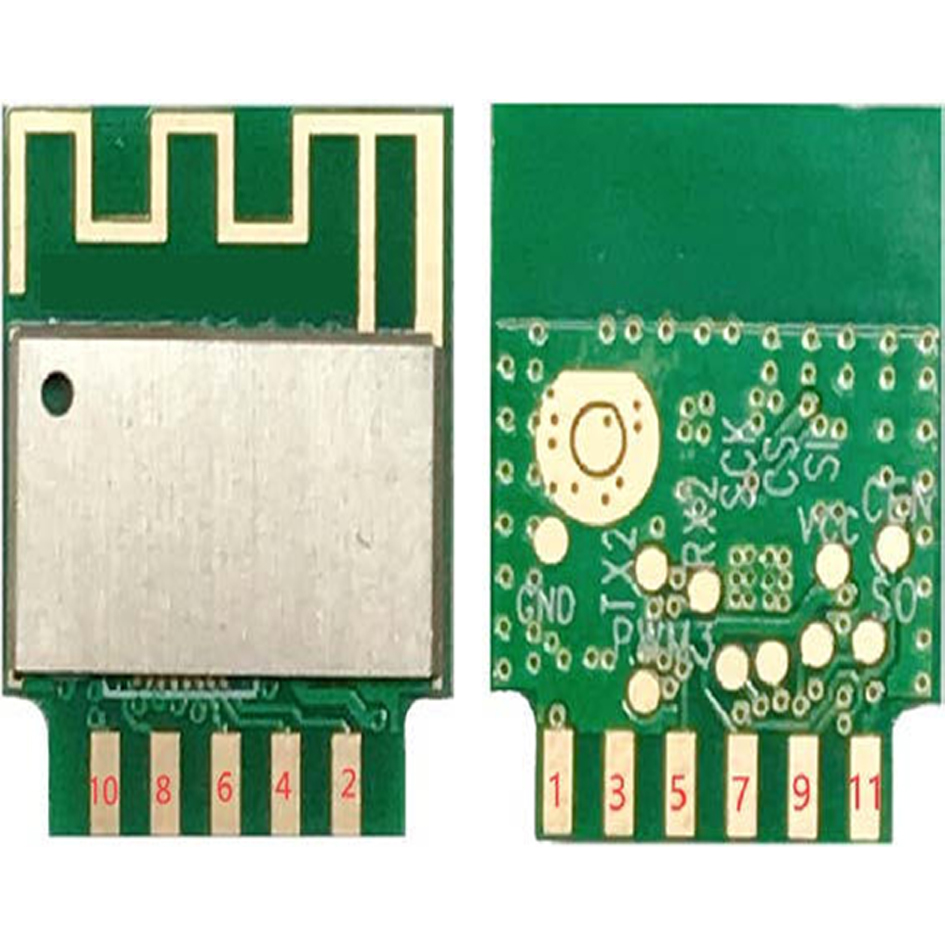

wifi module for solar inverter

wifi module for solar inverter wifi usb module camera module wifi

XDW006a-A0-MWB
Delivery
EXW
minimum order
1000 pieces
Country of Origin
ShenZhen
Quantity:
US $1.21 / pieces
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Model Number:XDW006a-A0-MWB
  • Type:WiFi Module
  • Country of Origin:China
  • Brand:XD
  • Product name:Ble module
  • Working voltage:0.3~3.63V
  • Main application areas:Medical Devices/Smart bus
  • Size:15mm*19.5mm*2.8mm
  • Storage temperature:-20-85℃
  • Working frequency:2412MHz~2484MHz
  • Ble standard:IEEE 802.11b/g/n (channels 1-14)
  • WIFI main features:Support WIFI
  • MOQ:1000
wifi module for solar inverter wifi usb module camera module wifi
Absolute electrical parameters
Parameter
Describe
Min
Max
Unit
Ts
storage temperature
-20
85
℃
VCC
Working Voltage
-0.3
3.63
V
ESD (Human Body Model)
ESD withstand capability (Human Body Model)
-
2
KV
Basic RF Characteristics
Parameter
Describe
Working frequency
2412MHz~2484MHz
Wi-Fi standard
IEEE 802.11b/g/n (channels 1-14)
Data transfer rate
11b ：1 、2 、5.5 、11 (Mbps)
11g：6、9、12、18、24、36、48、54
(Mbps)
11n ：HT20 MCS0-MCS7
Working Conditions
Para meter
Description
Min
Typical value
Max
Units
Ta
Operating temperature
-20
20
85
℃
VCC
Operating Voltage
2.1
3.3
3.63
V
V IL
Input logic low
-0.3
-
0.8
V
V IH
Input logic high
2.0
-
3.63
V
VOL
output logic low
-
-
0.4
V
VOH
output logic high
2.4
-
3.3
V

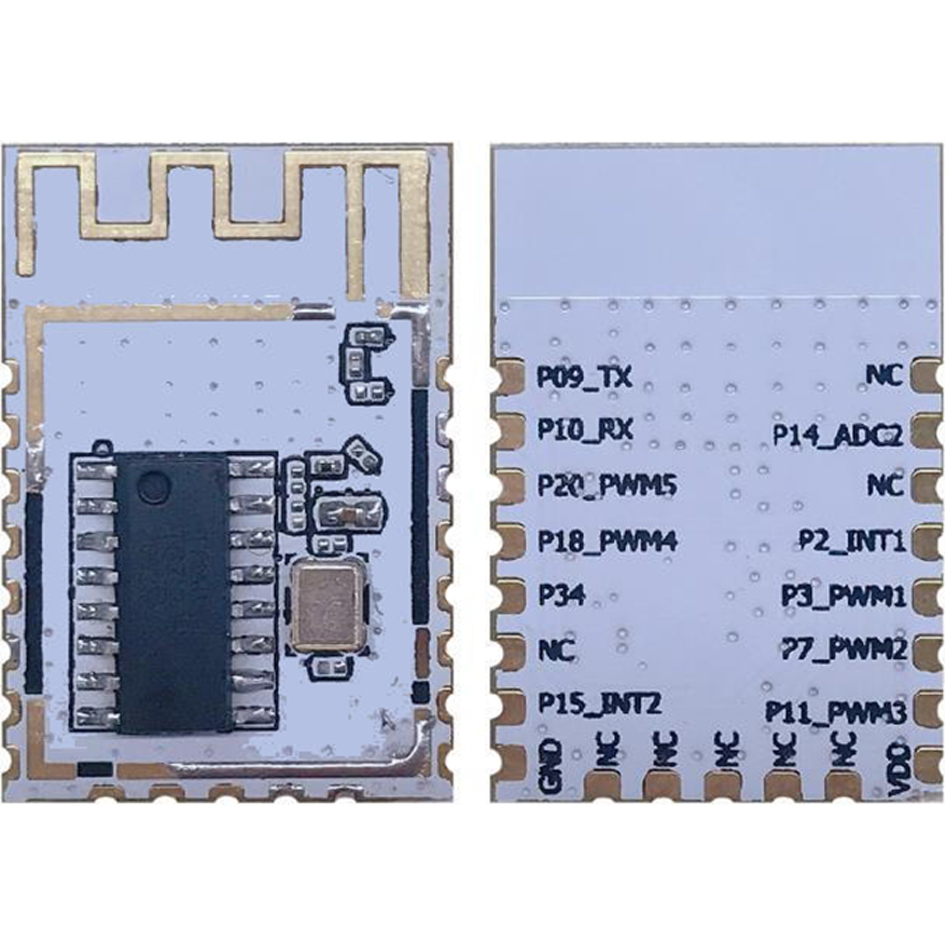

Product Overview
This module is a complete WiFi+BLE solution that supports coexistence of WiFi and Bluetooth. The module can run independently, and can also communicate with an external MCU through a serial port (SPI/I2C).
This module supports IEEE 802.11 b/g/n protocol standard and BLE 5.0 baseband, supports lightweight TCP/IP protocol stack, and supports STA and AP modes. Users can use this module to add networking capabilities to existing equipment, or to build stand-alone network controllers.
