ble receiver module

ble receiver module wifi and ble module wireless ble module

XDE55-A0-MB
Delivery
EXW
minimum order
1000 pieces
Country of Origin
ShenZhen
Quantity:
US $0.88 / pieces
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Model Number:XDE55-A0-MB
  • Type:BLE Module
  • Country of Origin:China
  • Brand:XD
  • Product name:BLE module
  • BLE version:5.0
  • Working voltage:3.6V
  • Main application areas:Smart Home/ Appliances/BLE/Smart light control

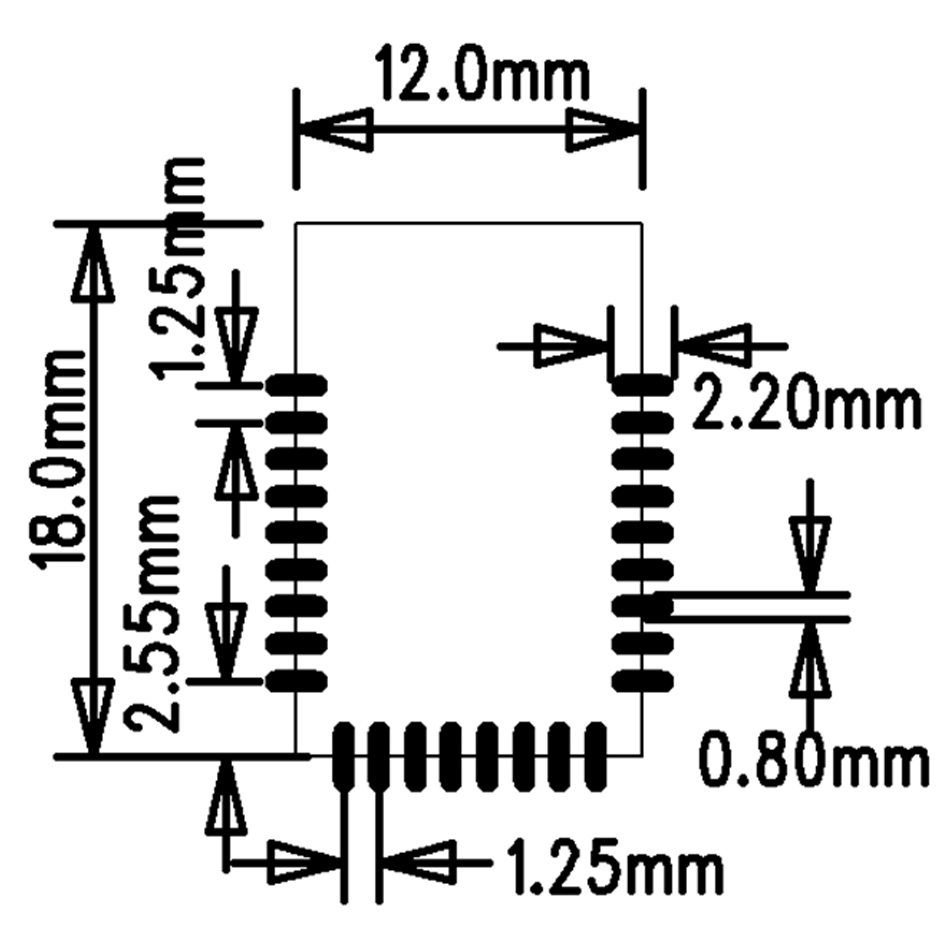

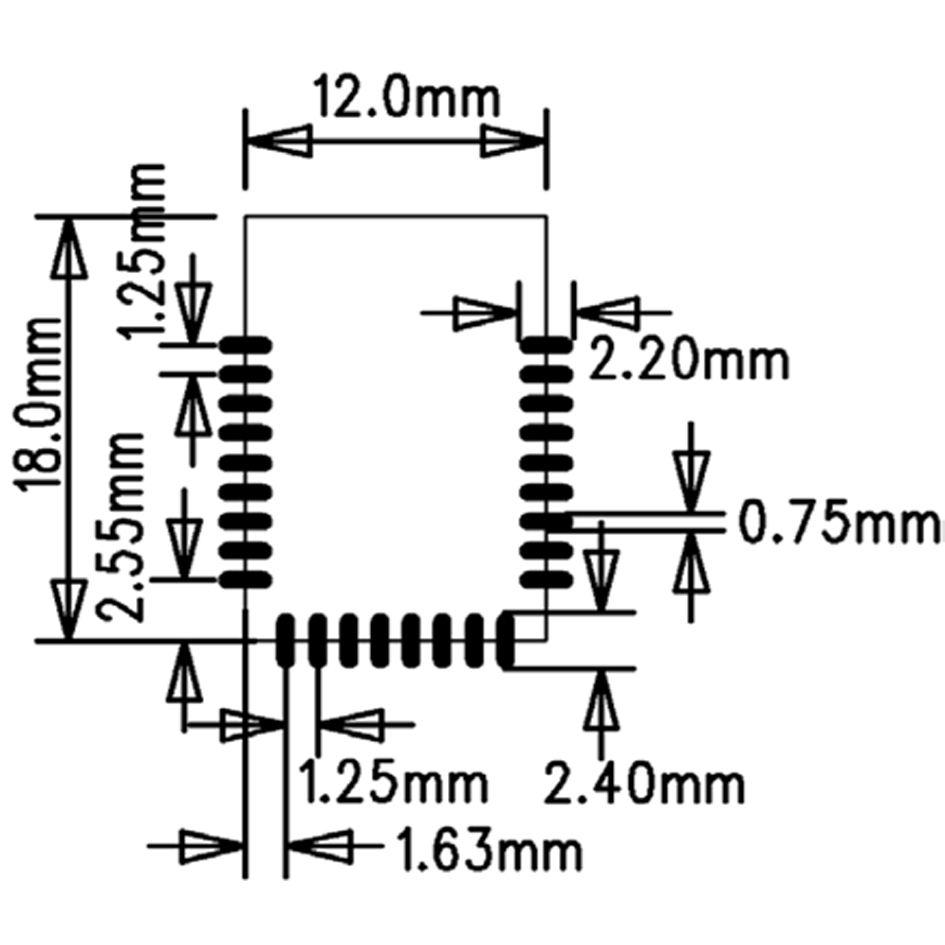

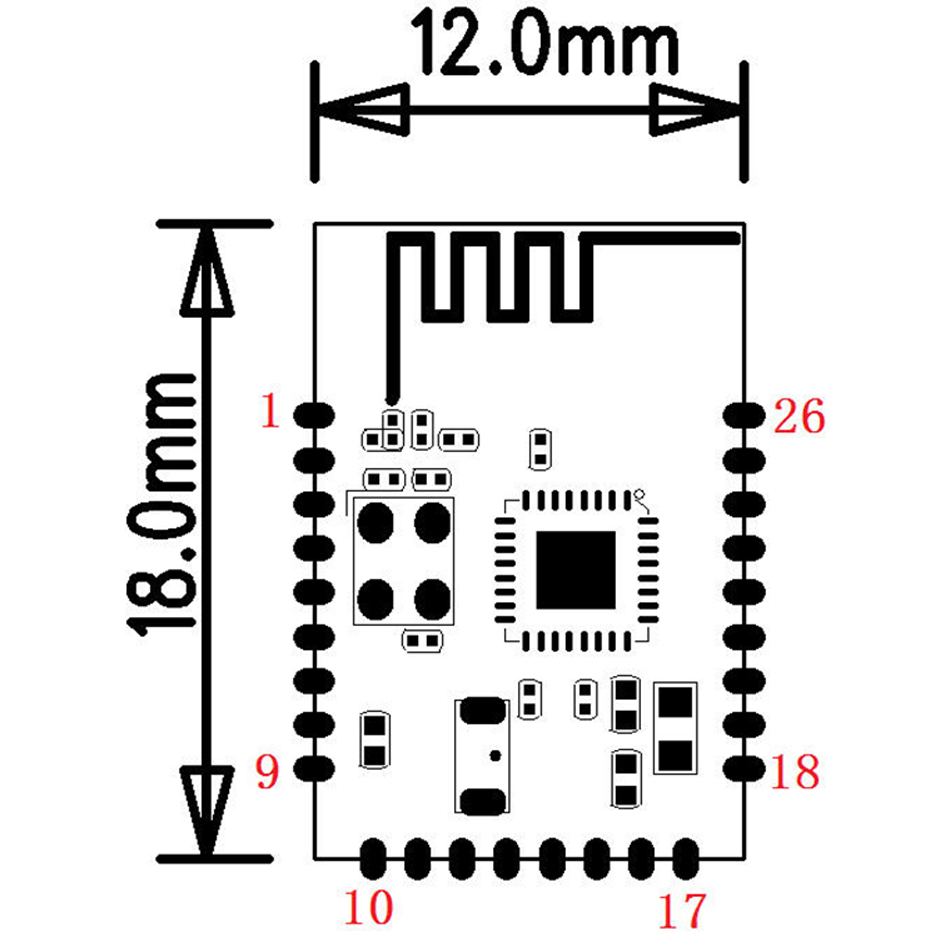

  • PCBA Size:24mm*16mm
  • Storage temperature:-20-85℃
  • Working frequency:2400MHz~2480MHz
  • Peripherals:17xGPIO, 2xUART, 3xADC, 5xPWM
  • BLE main features:Support BLE dual mode 4.2, Low Power 2.4GHz Transceiver
  • MOQ:1000
ble receiver module wifi and ble module wireless ble module
Absolute electrical parameters
Parameter
Describe
Min
Max
Unit
Ts
storage temperature
-20
85
℃
VCC
Operating Voltage
-
3.6
V
ESD (Human Body Model)
ESD withstand capability (Human Body Model)
-
2
KV
ESD (Machine Model)
ESD withstand capability (machine model)
-
0.2
KV
Basic RF Characteristics
Parameter
Describe
Working frequency
2400MHz~2480MHz
Ble Version
5.0
Data transfer rate
Typical value 1Mbps, maximum rate 2Mbps
Working conditions
Parameter
Describe
Min
Typical Value
Max
Units
Per
Operating temperature
-20
20
85
℃
VCC
Operating Voltage
1.8
3.3
3.6
V
VIL
input logic low
0
-
0.3
V
MH
input logic high level
VCC-0.3
-
VCC+0.3
V
VOL
output logic low level
-
-
0.3
V
VOH
output logic high level
vCC-0.3
-
Vcc
V

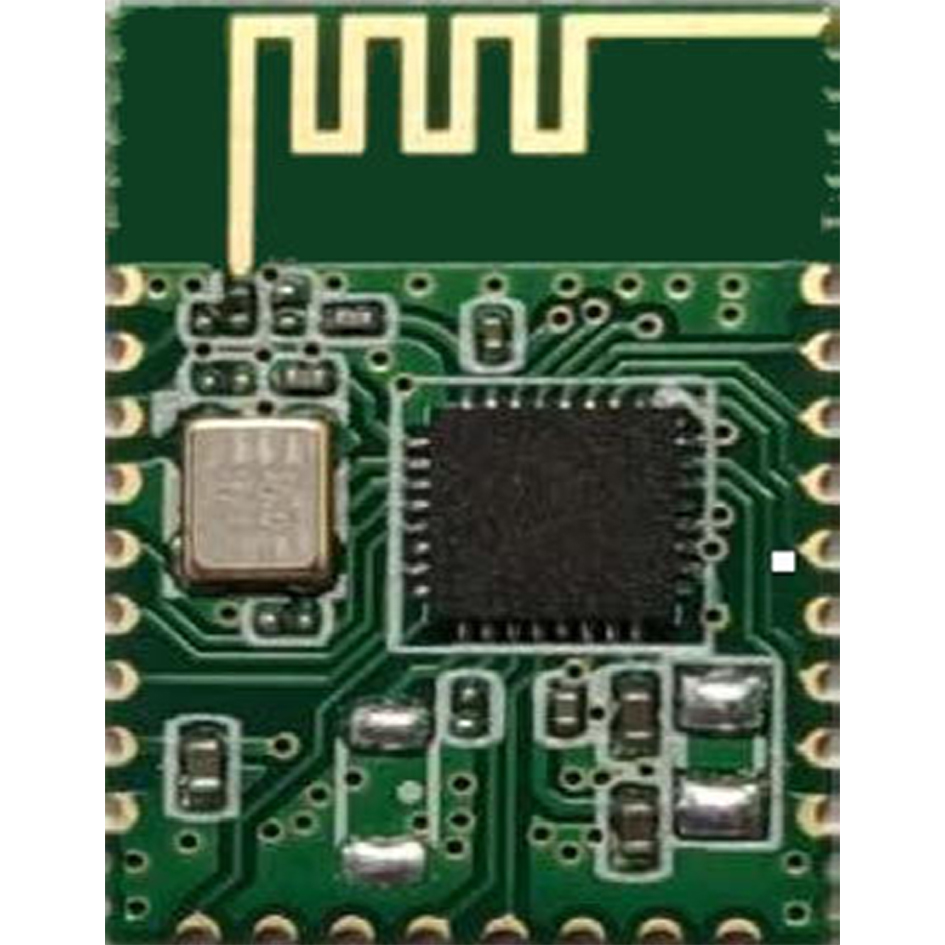

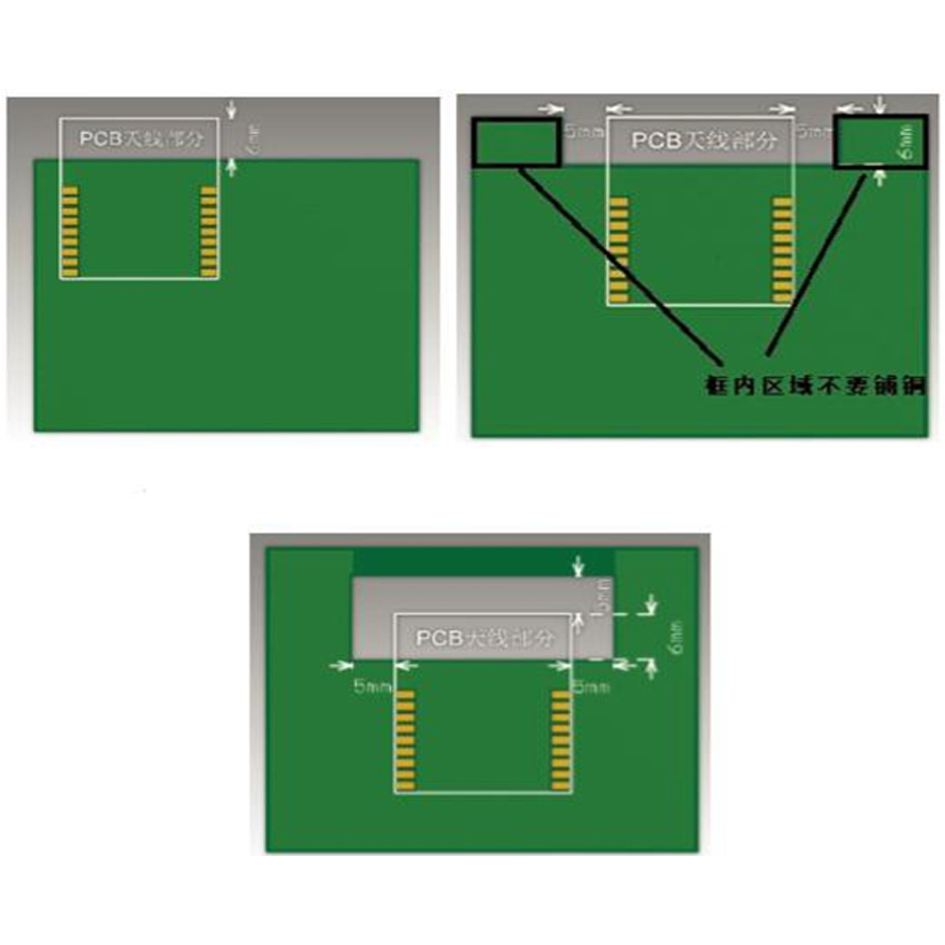

Product Overview

This module is a low energy BLE 4.2 module. The module integrates a high-performance 2.4GHz RF
transceiver MCU, feature-rich baseband processor, ARM968E-S MCU and various peripheral interfaces. Built-in 160KB Flash And 20KB RAM, support programmable protocol to meet customer-customized applications.
