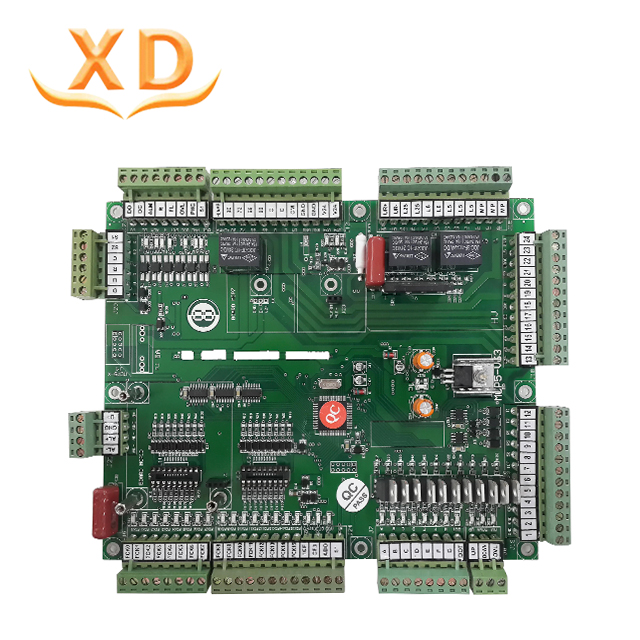

PCBA contract manufacturing factory with smt soldering service
Our professional SMT factory has advanced equipment, such as the world-class stencil printing, SMT chip pick & place, solder reflow, and in-line testing and steel mesh manufacturing.
AOI test machine and X-ray testing machines for quality check.

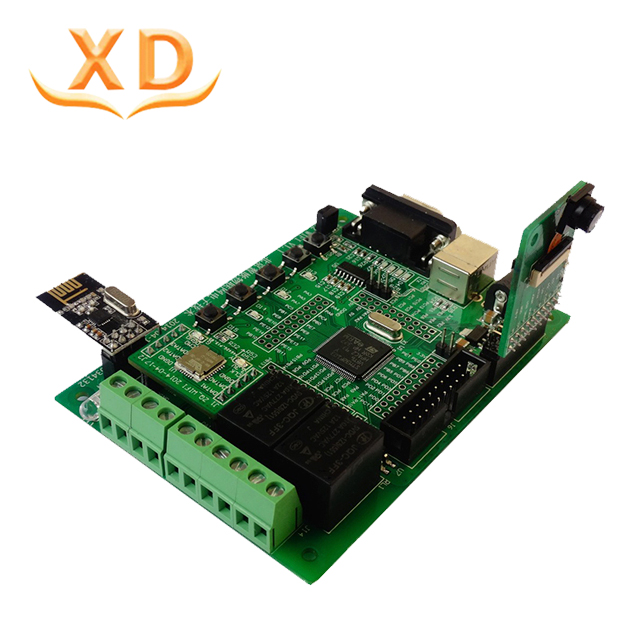

Xinda offers turn-key PCB assembly services OEM in prototype quantities or low-volume to mid-volume production runs. We handle the whole process including: ordering all the components, PCB manufacturing, PCB assembly, testing and final shipment. We are capable of assembling BGA, Micro-BGA, QFN and other leadless package parts.
| SMT and Through-Hole Assembly | Fine Pitch Component Insertion |
| Lead free Assembly | BGA and QFN Assembly |
| One-stop PCB Assembly | BGA X-Ray Inspection |
| Prototype PCB Assembly | Automated Optical Inspection |
| PCB Assembly in low volumes | PCB testing for functionality |
| AOI Testing Checks for solder paste Checks for components down to 0201" Checks for missing components, offset, incorrect parts, polarity X-Ray Inspection X-Ray provides high-resolution inspection | In-Circuit Testing In-Circuit Testing is commonly used in conjunction with AOI minimizing functional defects caused by component problems. Power-up Test Advanced Function Test Flash Device Programming Functional testing |
| Selective Wave Soldering | Conformal Coating |
| Complete box build | Kitting and 3D printing |
Surface Mount Technology
Xinda all products follow IPC2 standards.With 18 years experience of placing BGA, UBGA, CSP and small profile passives down to and including 0201, POE offers a cost effective high yield solution to any SMT requirement.
| Inspection Methods | |
|---|---|
| AOI Testing | Checks for solder paste |
| Checks for components down to 0201" | Checks for missing components, offset, incorrect parts, polarity |
| X-Ray Inspection | X-Ray provides high-resolution inspection of: |
| BGAs | Micro BGAs |
| Micro BGAs | Bare boards |
| In-Circuit Testing * In-Circuit Testing is commonly used in conjunction with AOI minimizing functional defects caused by component problems. | |
|---|---|
| Power-up Test | Advanced Function Test |
| Flash Device Programming | Functional testing |
Our Services
We can provide one-stop service:
1. PCB circuit boards.
2. E-test.
3.Electronic components purchasing.
4. PCB assembly: available on SMT, BGA, DIP.
5. PCBA function test.
6. Enclosure assembly.
Technical
1).Professional surface mounting and through hole soldering technology;
2).Various sizes,like 1206,0805,0603,0402,0201 components SMT technology;
3).X-ray ICT(In Circuit Test),FCT(Functional Circuit Test) technology;
4).Nitrogen gas reflow soldering technology for SMT;
5).High standard SMT&Solder Assembly line;
6).High density interconnected board placement technology capacity.
Company Information
XingDa Electric Technology Co.,Ltd.,is located in Shenzhen, was established in
2011 with more than 200 employees, is a professional manufacturer of PCB, FPC
and PCBA(PCB+components+assembly).
Exhibition Show:
FAQ
Q1:Are you a factory or trade company?
A: XingDa is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBs Board for 6 years.
Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.
Q3:Can you copy PCB samples without Gerber file?
A: Yes, we can clone the PCB according to your samples.
Q4:What payment do you accept ?
A: TT/ Western Union/ Paypal/
Q5: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.
Q6: How about the MOQ?
A: For PCB: 1 pcs
For PCBA: 1000pcs
Q7: What's your main market?
A:Europe, USA, Brazil, Russia, Turkey, , Austrialia, Singapore...
