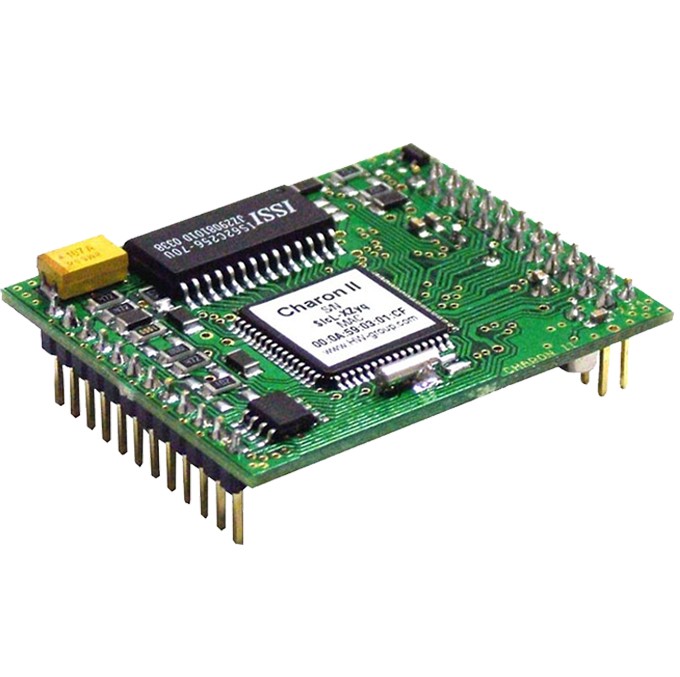

Camera Module circuit board assembly Security pcba Manufacturer

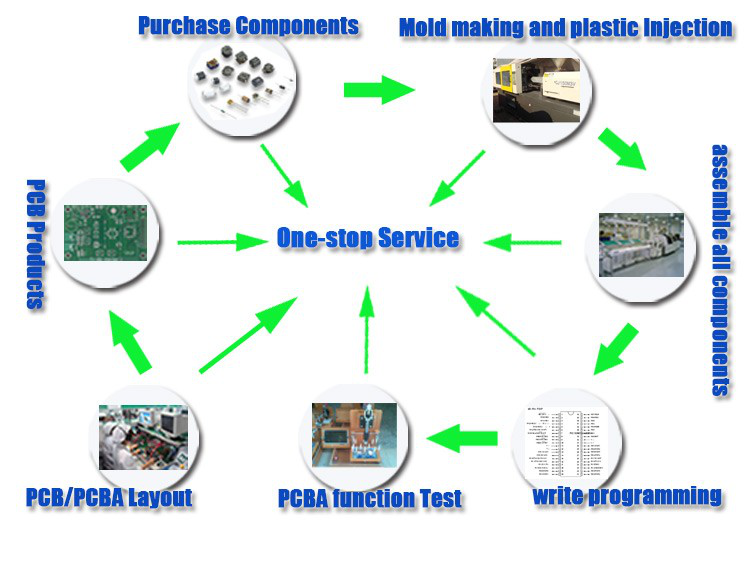

PCBgate provide one-stop Service :1. PCB layout , 2. PCB manufacturing ,3.all electronic components , 5. PCB assembling, 6. PCBA function testing, 7. make mould of housing , 8. make housing and housing assembly.
Our products are applied in multiple industries, including military, medical, instruments, industrial control, automotive electronics, communications, home appliances, and consumer electronics.
We have got certificates including ISO9001,ISO14001, ISO45001,IATF16949 and ISO13485 , UL,are fully qualified to serve large enterprises.
Camera Module circuit board assembly Security pcba Manufacturer
PCBgate introduction
PCB Product Capacity
Item
Specification
Material
FR-4,FR1, CEM-1, CEM-3,Aluminum, Ceramic, Metal-backed Laminate, etc.Also make Crockery, Taconic, Rogers PCBs etc.
Remarks
High Tg CCL is Available(Tg>=170℃)
Finish Board Thickness
0.2 mm-6.00mm(8mil-126mil)
Surface Finish
Gold finger(>=0.13um), Immersion Gold(0.025-0075um), Plating Gold(0.025-3.0um), HASL(5-20um), OSP(0.2-0.5um)
Shape
Routing、Punch、V-cut、Chamfer
Surface Treatment
Solder Mask(black, green, white, red, blue, thickness>=12um, Block, BGA)
Silkscreen(black, yellow, white)
Peel able-mask(red, blue, thickness>=300um)
Minimum Core
0.075mm(3mil)
Copper Thickness
1/2 oz min; 12oz max
Min Trace Width & Line Spacing
0.075mm/0.1mm(3mil/4mil)
Min Hole Diameter for CNC Drilling
0.1mm(4mil)
Min Hole Diameter for Punching
0.6mm(35mil)
Biggest panel size
2000mm * 700mm
Hole Position
+/-0.075mm(3mil) CNC Drilling
Conductor Width(W)
+/-0.05mm(2mil) or +/-20% of original
Hole Diameter(H)
PTHL:+/-0.075mm(3mil)
Non PTHL:+/-0.05mm(2mil)
Outline Tolerance
+/-0.1mm(5mil) CNC Routing
Warp & Twist
0.70%
Insulation Resistance
10Kohm-20Mohm
Conductivity
<50ohm
Test Voltage
10-300V
Panel Size
110 x 100mm(min)
2000 x 700mm(max)
Layer-layer misregistration
4 layers:0.15mm(6mil)max
6 layers:0.25mm(10mil)max
Min spacing between hole edge to circuitry pattern of an inner layer
0.25mm(10mil)
Min spacing between board outline to circuitry pattern of an inner layer
0.25mm(10mil)
Board thickness tolerance
4 layers:+/-0.13mm(5mil)
PCB Assembly(SMT) Product Capacity
SMT Capacity
SMT Item
Capacity
PCB Max. size
510mm*1200mm(SMT)
Chip component
01005,0201, 0402, 0603, 0805, 1206 package
Min.pin space of IC
0.1mm
Max.precision of IC assembly
±0.01mm
Assembly capacity
≥8 million pionts/day
DIP capacity
6 DIP production lines
Assembly testing
Bridge test,AOI test, X-Ray test, ICT(In Circuit Test)
FCT(Functional Circuit Test)
Current test, voltage test, high temperature and low temperature test,Drop Impact Test,aging test,water proof test,leakage-proof test and etc.Different test can be done according to your requirement.
Quality Control
Customers Visit our factory
Exhibition Show:
Munich Exhibition&Moscow：
Russia Exhibition：
Q1:Are you a factory or trade company?
A: Xing Da Electronic Technology Co., ltd is leading OEM PCB&PCBA manufacturer in China with over 14 years rich experience. Our aim is “One-Stop service, smart manufacturing, make your production easier.”
Q2: What is needed for quotation?
A:1. PCB&FPC
We need Ger ber files and specification for quotation
2. PCBA (= PCBA+ components + Assembly)
For PCBA, please send Ger ber files, specification and Bom list for factory price.
Q3:Is my PCB or PCBA files safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB or PCBA for someone else without your permission. We never share customer documents with third parties.NDA is acceptable.
Q4:What payment do you accept ?
A: T/T,Western Union,Paypal, L/C,Credit Card, Cheque,Others
Q5: What's your shipping method?
A: 1. We have our own forwarders to ship goods with competitive price by DHL, UPS, FEDEX, TNT,EMS etc. We can also arrange shipments via sea or air depending on your specific requirements."
2. If you have your own forwarder, we can cooperate with them.
Q6: How about the MOQ?
A: There is no MOQ. We can produce prototypes, small orders, or large volumes.
Model Number:PCBA- Type:Multilayer pcb
- Place of Origin:Guangdong, China
- Brand Name:Xing Da
- Number of Layers:1-38
- Base Material:FR-4,Rogers, CEM-1, CEM-3
- Copper Thickness:1/2 oz min;12 oz max
- Board Thickness:0.2mm-6.00 mm(8mil-126mil)
- Min. Hole Size:0.1mm(4mil)
- Min. Line Width:0.1mm(4mil)
- Min. Line Spacing:0.075mm/0.1mm(3mil/4mil)
- Surface Finishing:Immerssion Gold/AU/HASL/OSP,
- Board Size:other
- Item:PCBA
- Impedance Control:+/-10%
- Certificate:ISO9001
- Max Panel Size:1200*600mm
- Warp&Twist:0.75%
- Solder mask:Green. Red. Blue. White. Black.Yellow
- Service:One-stop Service
- Hole Tolerance:PTH:±0.075,NTPH:±0.05
- Outline tolerance:+/-0.1mm(5mil)CNC Rounting
- PCB Standard:IPC-A-610 E Class II-III

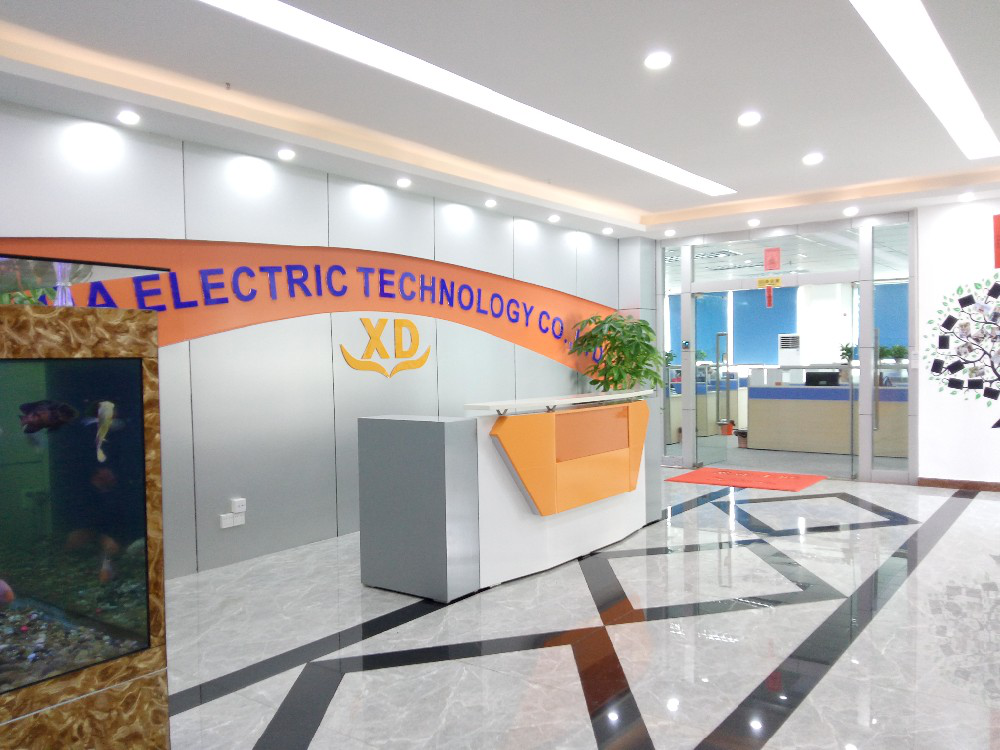

Welcome to XingDa Electric Technology Co.,Ltd
Xindaxing Electric Technology Co.,LTd
Our Services
We can provide one-stop service:
1. PCB circuit boards.
2. E-test.
3.Electronic components purchasing.
4. PCB assembly: available on SMT, BGA, DIP.
5. PCBA functiontest.
6. Enclosure assembly.
PCB product Capacity
PCB Manufacture Capacity | |
Item | Specification |
Material | FR-4,FR1,FR2; CEM-1, CEM-3,Rogers, Teflon,Arlon,Aluminum Base, Copper Base,Ceramic, Crockery, etc. |
Remarks | High Tg CCL is Available(Tg>=170℃) |
Finish Board Thickness | 0.2 mm-6.00mm(8mil-126mil) |
Surface Finish | Gold finger(>=0.13um), Immersion Gold(0.025-0075um), Plating Gold(0.025-3.0um), HASL(5-20um), OSP(0.2-0.5um) |
Shape | Routing,Punch,V-cut,Chamfer |
Surface Treatment | Solder Mask(black, green, white, red, blue, thickness>=12um, Block, BGA) |
Silkscreen(black, yellow, white) | |
Peel able-mask(red, blue, thickness>=300um) | |
Minimum Core | 0.075mm(3mil) |
Copper Thickness | 1/2 oz min; 12oz max |
Min Trace Width & Line Spacing | 0.075mm/0.075mm(3mil/3mil) |
Min Hole Diameter for CNC Drilling | 0.1mm(4mil) |
Min Hole Diameter for Punching | 0.6mm(35mil) |
Biggest panel size | 610mm * 508mm |
Hole Position | +/-0.075mm(3mil) CNC Drilling |
Conductor Width(W) | +/-0.05mm(2mil) or +/-20% of original |
Hole Diameter(H) | PTHL:+/-0.075mm(3mil) |
Non PTHL:+/-0.05mm(2mil) | |
Outline Tolerance | +/-0.1mm(4mil)CNC Routing |
Warp & Twist | 0.70% |
Insulation Resistance | 10Kohm-20Mohm |
Conductivity | <50ohm |
Test Voltage | 10-300V |
Panel Size | 110 x 100mm(min) |
660 x 600mm(max) | |
Layer-layer misregistration | 4 layers:0.15mm(6mil)max |
6 layers:0.25mm(10mil)max | |
Min spacing between hole edge to circuitry pattern of an inner layer | 0.25mm(10mil) |
Min spacing between board outline to circuitry pattern of an inner layer | 0.25mm(10mil) |
Board thickness tolerance | 4 layers:+/-0.13mm(5mil) |
Flexible PCB product Capacity
FPC Tech Specification | |
Items | Capabilities |
Layers | FPC:1 to 6 Layers, Rigid Flex: 2 to 10 Layers |
Regular Base Materials | Kapton,Polyimide(PI), Polyester(PET), FR4 |
Base Copper Thickness | 1/3 oz to 8oz |
Regular Base Material Thickness | 12.5um to 50um(FPC) |
0.1mm to 3.2mm(Rigid) | |
Regular Coverlay Thickness | 27um to 50um |
Regular Adhesive Thickness | 12um to 25um |
Blind or Buried Vias | Yes |
Impedance Control | Yes |
Min.Line Width/Spacing | 0.04mm/0.04mm |
Surface Finishing | Electroplate Ni/Au(Flash gold/Soft gold/Hard gold), ENIG, HASL, Immersion Tin,OSP |
Outline Fabrication | Die cut, laser cut, CNC routing, V-scoring |
Hole to edge(Hard tool/Die Cut) | ±0.1/±0.2mm |
Edge to edge(Hard tool/Die Cut) | ±0.05/±0.2mm |
Circuit to edge(Hard tool/Die Cut) | ±0.07/±0.2mm |
PCB Assembly(SMT) Product Capacity
SMT Capacity | |
SMT Item | Capacity |
PCB Max. size | 510mm*1200mm(SMT) |
Chip component | 0201,0402,0603,0805, 1206package |
Min.pin space of IC | 0.1mm |
Min. space of BGA | 0.1mm |
Max.precision of IC assembly | ±0.01mm |
Assembly capacity | ≥8 million piots/day |
DIP capacity | 6 DIP production lines |
Assembly testing | Bridge test,AOI test, X-Ray test, ICT(In Circuit Test),FCT(Functional Circuit Test) |
| Current test, voltage test, high temperature and low temperature test,Drop Impact Test,aging test,water proof test,leakage-proof test and etc.Different test can be done according to your requirement. |

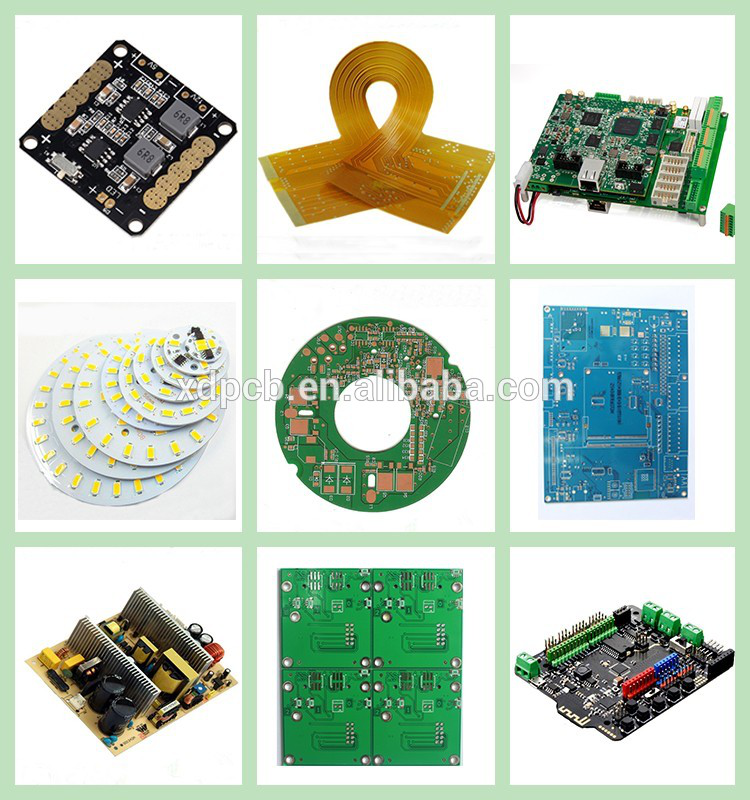

Related Products
HighQuality PCB, FPC and PCBA!
View of Factory
Customer visiting
Exhibition Show:
FAQ
Q1:Are you a factory or trade company?
A: XingDa is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBs Board for 9years.
Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.
Q3:What payment do you accept ?
A: TT/ Western Union/ Paypal/ Unistream.
Q4: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.
Q5: How about the MOQ?
A: For PCB: 1 pcs
For PCBA: 1pcs
Q6: What's your main market?
A:Europe, USA, Brazil, Russia, Turkey, Austrialia, Singapore...
Packaging & Shipping
