Factory wifi switch BLE module esp32 wifi esp32-wroom-32 module wifi wireless smart switch relay module
XDW026-A0-MWB
Delivery
EXW
minimum order
1000 pieces
Country of Origin
ShenZhen
Quantity:
US $0.99
/ pieces
Unable to ship to shipping address, please feedback to us
- Model Number:XDW026-A0-MWB
- Type:WiFi Module
- Country of Origin:China
- Brand:XD
- Product name:Wifi module
- Dominant frequency:120MHz
- Working voltage:3.3V
- Main application areas:Medical Devices/Smart bus
- Size:24mm*16mm*2.3mm
- Storage temperature:-20-85℃
- Working frequency:2412MHz~2484MHz
- Wi-Fi standard:IEEE 802.11b/g/n (channels 1-14)
- WIFI main features:Support WIFI
- MOQ:1000
Wifi Switch Bluetooth Module
Absolute electrical parameters
Parameter | Describe | Min | Max | Unit |
Ts | storage temperature | -20 | 85 | ℃ |
VCC | Operating Voltage | -0.3 | 3.9 | V |
ESD (Human Body Model) | ESD withstand capability (Human Body Model) | - | 2 | KV |
ESD (Machine Model) | ESD withstand capability (machine model) | - | 0.2 | KV |
Basic RF Characteristics
Parameter | Describe |
Working frequency | 2412MHz~2484MHz |
Wi-Fi standard | IEEE 802.11b/g/n (channels 1-14) |
Data transfer rate | 11b：1、2、5.5、11（Mbps） 11g：6、9、12、18、24、36、48、54（Mbps） 11n：HT20 MCS0-MCS7 |
Antenna type | Compatible with external antenna/board antenna, antenna gain 0dBi |
Wi-Fi conduction parameters
Parameter | Min | Typical value | Max | Units |
RF average transmit power 11b 11M | - | 17 | - | dBm |
RF average transmit power 11g 54M | - | 14 | - | dBm |
RF average transmit power 11n HT20 MCS7 | - | 14 | - | dBm |

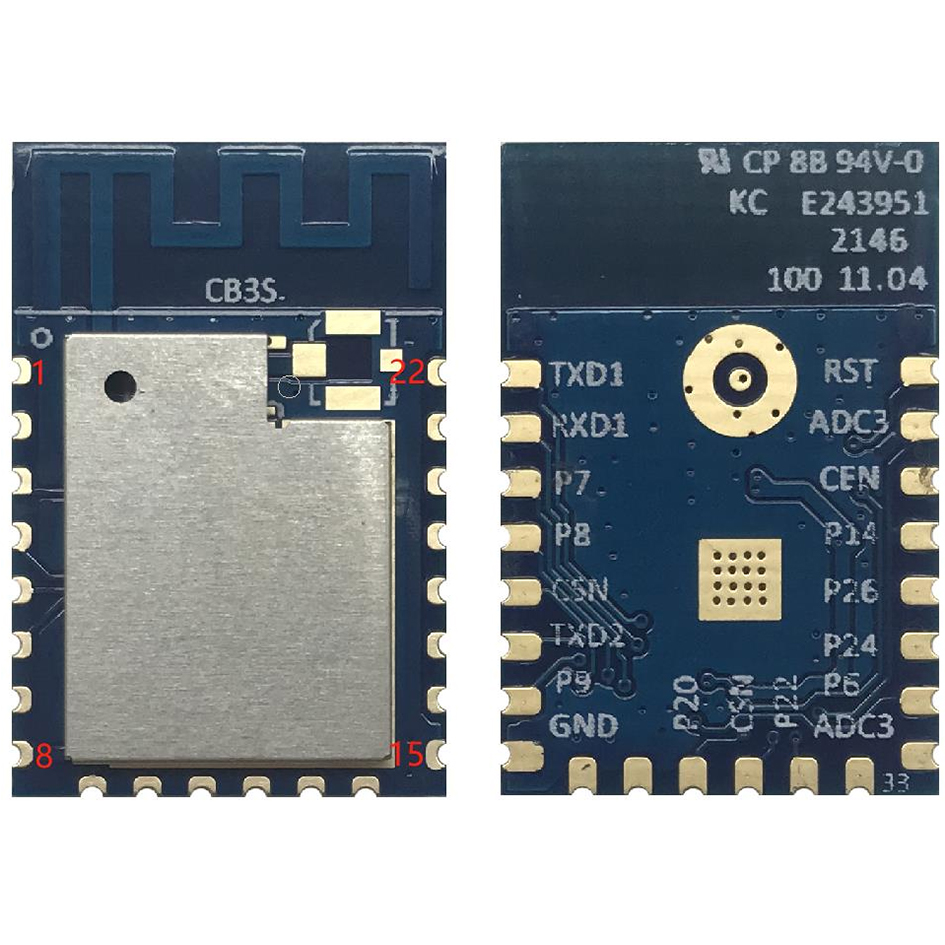

Product Overview
This module is a cost-effective WIFI+BLE module, supports Bluetooth dual-mode 5.1 and IEEE 802.11 b/g/n protocol standards, supports lightweight TCP/IP protocol stack, and supports STA, AP and Direct modes. Users can use this module to add networking capabilities to existing equipment or to build stand-alone network controllers.
