piano cottura a induzione a led con scheda pcba smd per casa intelligente

PCBA25120674
Scheda PCB SMD a LED, scheda PCB per piano cottura a induzione, scheda PCB, scheda PCB per smart home, scheda PCB SMD a LED per piano cottura a induzione

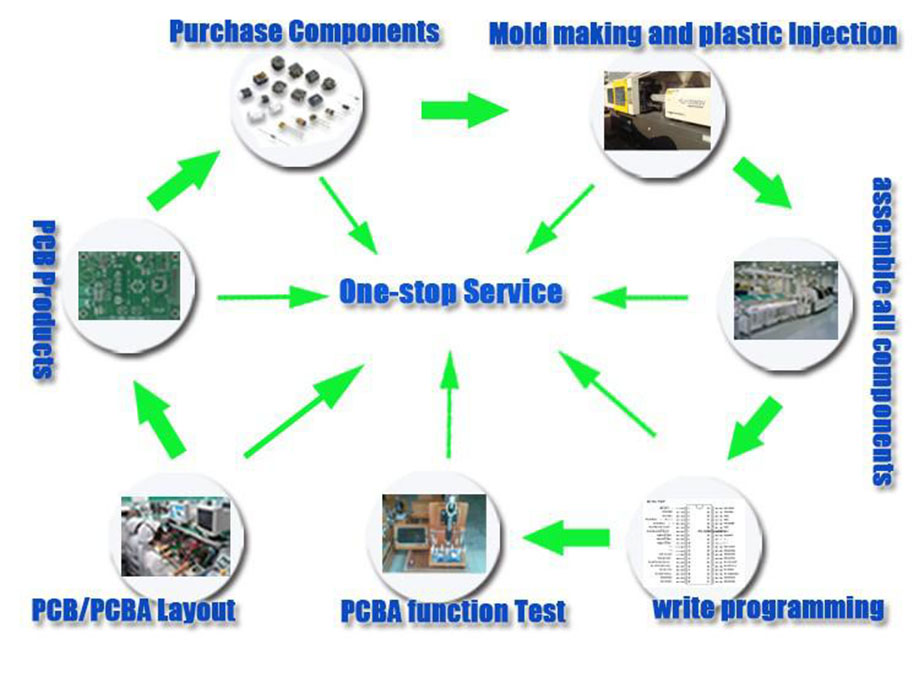

PCBgate offre un servizio completo: 1. Layout PCB, 2. Produzione PCB, 3. Tutti i componenti elettronici, 5. Assemblaggio PCB, 6. Test di funzionalità PCBA, 7. Realizzazione dello stampo per l'alloggiamento, 8. Realizzazione e assemblaggio dell'alloggiamento.

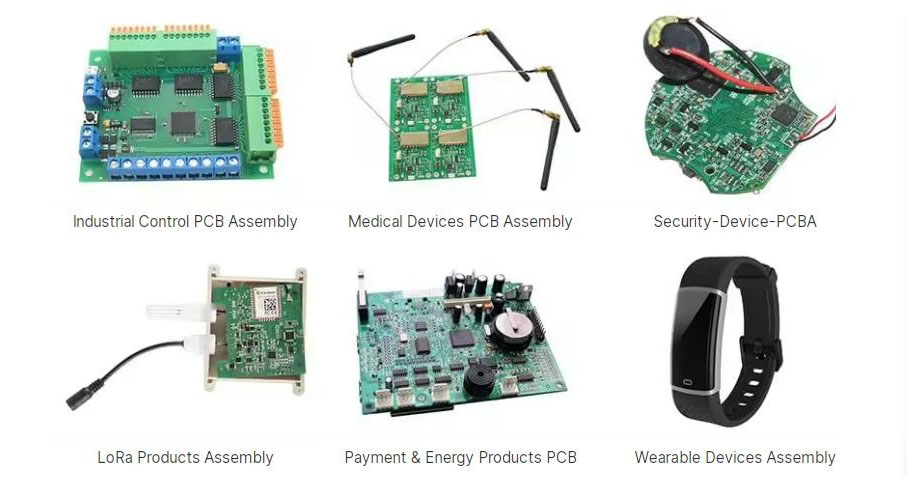

I nostri prodotti trovano applicazione in diversi settori, tra cui militare, medicale, strumentazione, controllo industriale, elettronica automobilistica, comunicazioni, elettrodomestici ed elettronica di consumo.
Abbiamo ottenuto le certificazioni ISO9001, ISO14001, ISO45001, IATF16949 e ISO13485, UL, e siamo pienamente qualificati per servire grandi aziende.
ordine minimo
1 Pezzo
quantità:
US $3.00 / Pezzo
Impossibile spedire all'indirizzo di spedizione, ti preghiamo di inviarci un feedback
invia contatto
Aggiungi al carrello
Acquista ora
Tutti i prodotti
captcha
  • Puoi caricare solo 1 allegati al massimo
  • Formati supportati: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • La dimensione del file caricato non deve superare i 10 MB

piano cottura a induzione a led con scheda pcba smd per casa intelligente

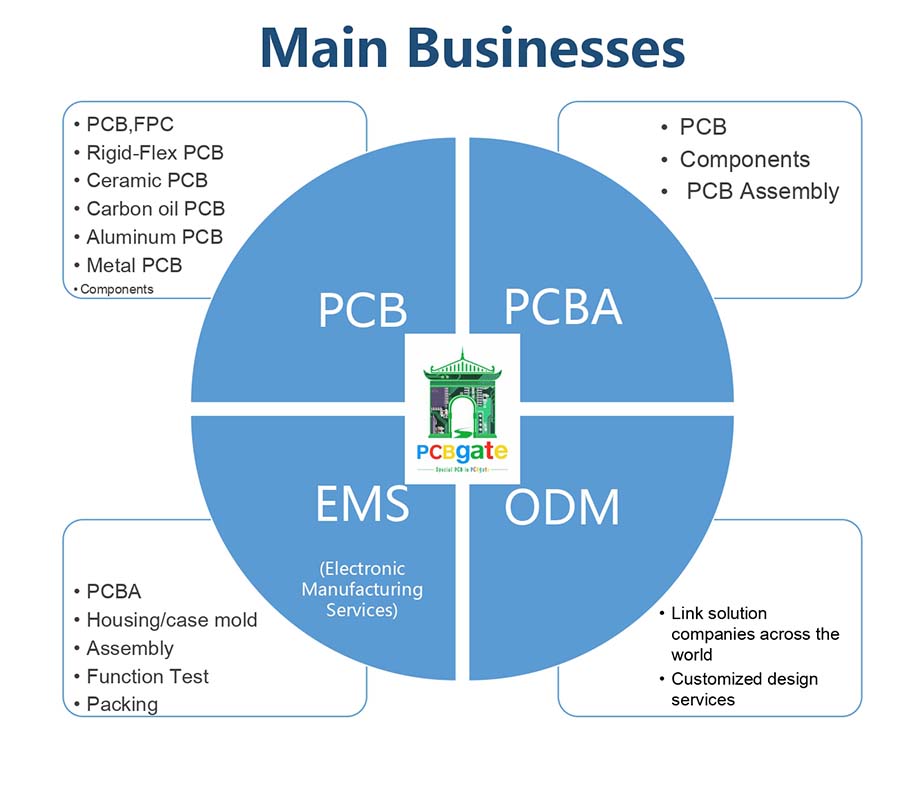

PCBgate introduction

PCB Product Capacity

Item

Specification

Material

FR-4,FR1, CEM-1, CEM-3,Aluminum, Ceramic, Metal-backed Laminate, etc.Also make Crockery, Taconic, Rogers PCBs etc.

Remarks

High Tg CCL is Available(Tg>=170℃)

Finish Board Thickness

0.2 mm-6.00mm(8mil-126mil)

Surface Finish

Gold finger(>=0.13um), Immersion Gold(0.025-0075um), Plating Gold(0.025-3.0um), HASL(5-20um), OSP(0.2-0.5um)

Shape

Routing、Punch、V-cut、Chamfer

Surface Treatment

Solder Mask(black, green, white, red, blue, thickness>=12um, Block, BGA)

Silkscreen(black, yellow, white)

Peel able-mask(red, blue, thickness>=300um)

Minimum Core

0.075mm(3mil)

Copper Thickness

1/2 oz min; 12oz max

Min Trace Width & Line Spacing

0.075mm/0.1mm(3mil/4mil)

Min Hole Diameter for CNC Drilling

0.1mm(4mil)

Min Hole Diameter for Punching

0.6mm(35mil)

Biggest panel size

2000mm * 700mm

Hole Position

+/-0.075mm(3mil) CNC Drilling

Conductor Width(W)

+/-0.05mm(2mil) or +/-20% of original

Hole Diameter(H)

PTHL:+/-0.075mm(3mil)

Non PTHL:+/-0.05mm(2mil)

Outline Tolerance

+/-0.1mm(5mil) CNC Routing

Warp & Twist

0.70%

Insulation Resistance

10Kohm-20Mohm

Conductivity

<50ohm

Test Voltage

10-300V

Panel Size

110 x 100mm(min)

2000 x 700mm(max)

Layer-layer misregistration

4 layers:0.15mm(6mil)max

6 layers:0.25mm(10mil)max

Min spacing between hole edge to circuitry pattern of an inner layer

0.25mm(10mil)

Min spacing between board outline to circuitry pattern of an inner layer

0.25mm(10mil)

Board thickness tolerance

4 layers:+/-0.13mm(5mil)

PCB Assembly(SMT) Product Capacity

SMT Capacity

SMT Item

Capacity

PCB Max. size

510mm*1200mm(SMT)

Chip component

01005,0201, 0402, 0603, 0805, 1206 package

Min.pin space of IC

0.1mm

Max.precision of IC assembly

±0.01mm

Assembly capacity

≥8 million pionts/day

DIP capacity

6 DIP production lines

Assembly testing

Bridge test,AOI test, X-Ray test, ICT(In Circuit Test)

FCT(Functional Circuit Test)

Current test, voltage test, high temperature and low temperature test,Drop Impact Test,aging test,water proof test,leakage-proof test and etc.Different test can be done according to your requirement.

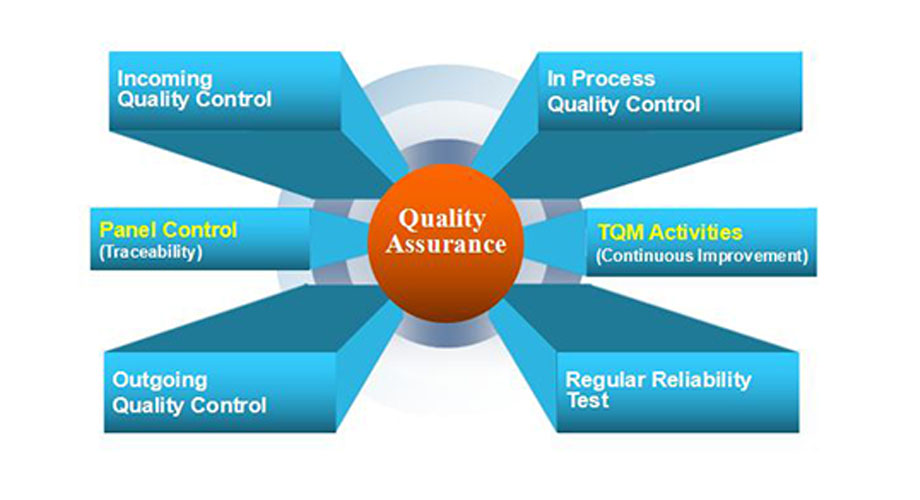

Quality Control

Customers Visit our factory

Exhibition Show:

Munich Exhibition&Moscow:

Russia Exhibition:

Q1:Are you a factory or trade company?

A: Xing Da Electronic Technology Co., ltd is leading OEM PCB&PCBA manufacturer in China with over 14 years rich experience. Our aim is “One-Stop service, smart manufacturing, make your production easier.”

Q2: What is needed for quotation?

A:1. PCB&FPC

We need Ger ber files and specification for quotation

2. PCBA (= PCBA+ components + Assembly)

For PCBA, please send Ger ber files, specification and Bom list for factory price.

Q3:Is my PCB or PCBA files safe if I send it to you for manufacturing?

A: We respect customer's design authority and will never manufacture PCB or PCBA for someone else without your permission. We never share customer documents with third parties.NDA is acceptable.

Q4:What payment do you accept ?

A: T/T,Western Union,Paypal, L/C,Credit Card, Cheque,Others

Q5: What's your shipping method?

A: 1. We have our own forwarders to ship goods with competitive price by DHL, UPS, FEDEX, TNT,EMS etc. We can also arrange shipments via sea or air depending on your specific requirements."

2. If you have your own forwarder, we can cooperate with them.

Q6: How about the MOQ?

A: There is no MOQ. We can produce prototypes, small orders, or large volumes.
