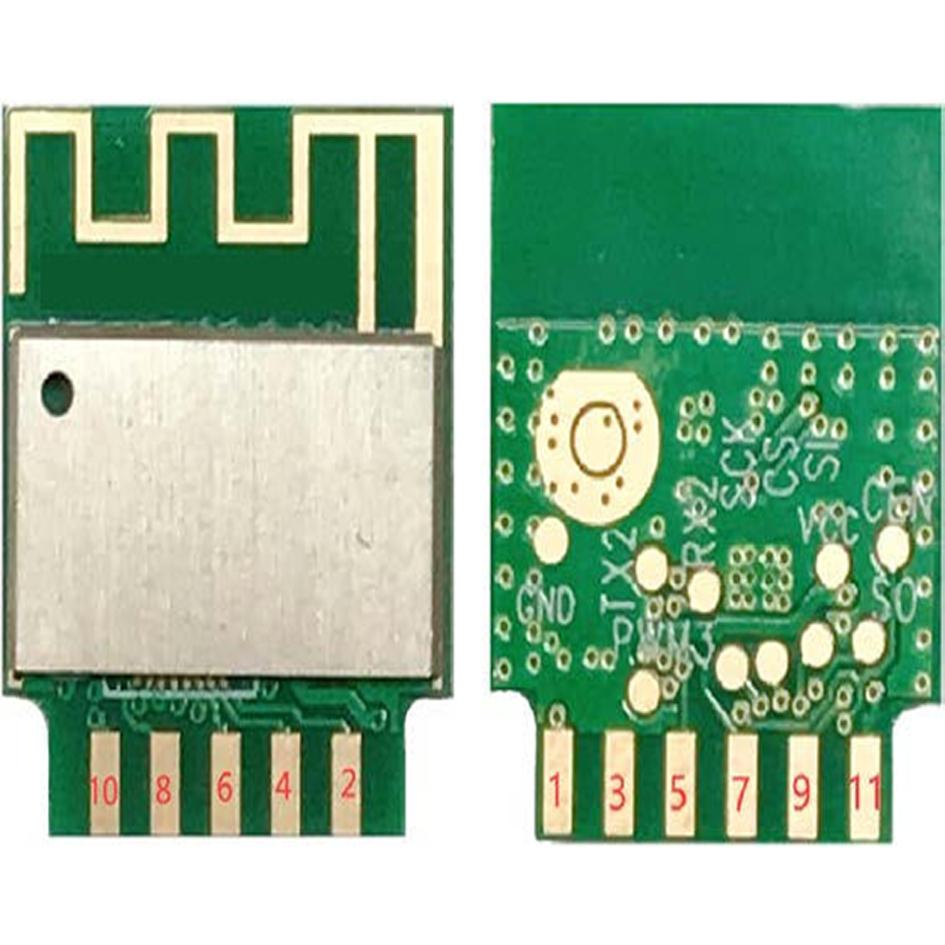

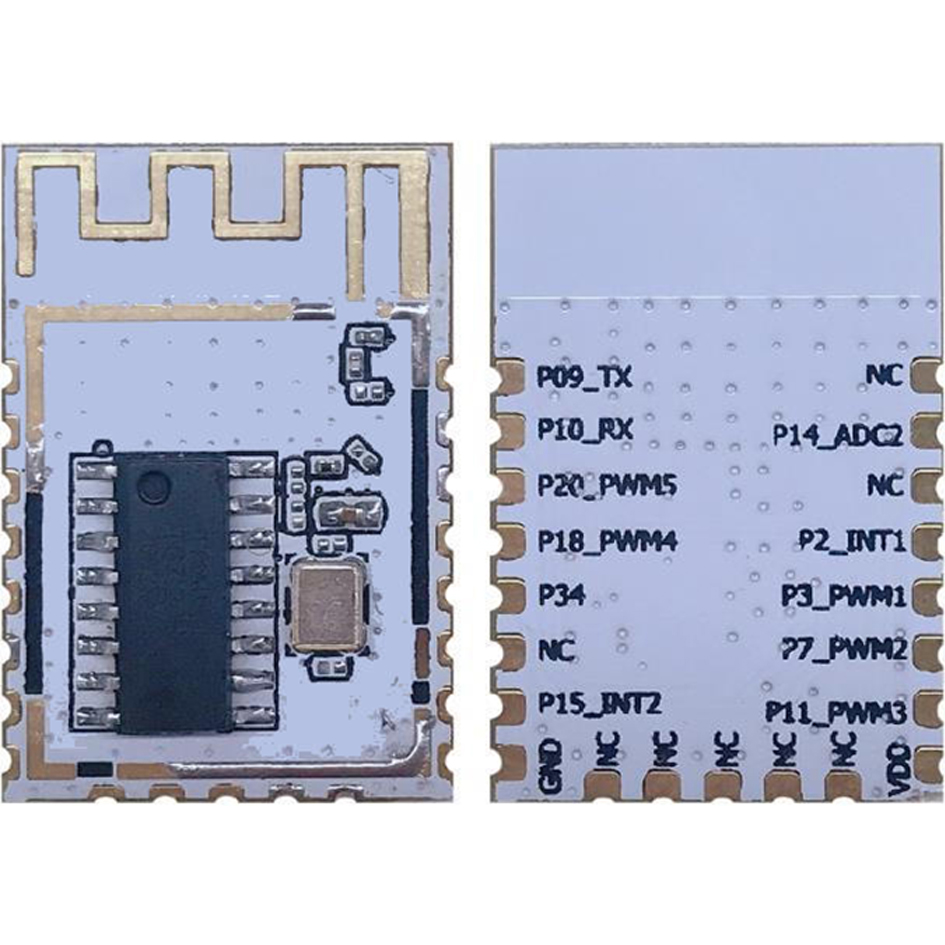

BLE transmitter module

BLE transmitter module BLE nrf51822 module ibeacon base station BLE decoder module

XDE033-SP-A0-MB
Delivery
EXW
minimum order
1000 pieces
Country of Origin
ShenZhen
Quantity:
US $1.25 / pieces
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
captcha
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB
  • Model Number:XDE033-SP-A0-MB
  • Type:BLE1.2
  • Country of Origin:China
  • Brand:XD
  • Application:Smart home
  • Product name:BLE module
  • Working frequency:2400MHz~2480MHz
  • Working voltage:1.8V-3.6V
  • Main application areas:Smart Home/ Appliances
  • Size:13mm*9.5mm*2
  • Storage temperature:-20-85.3℃
  • Supply voltage:6
  • Low Power:2.4GHz Transceiver
  • Peripherals:12 GPIO (max)
  • MOQ:1000
BLE transmitter module BLE nrf51822 module ibeacon base station BLE decoder module
Absolute electrical parameters
Parameter
Describe
Min
Max
Unit
Ts
Supply voltagestorage temperature
-20
85.3
℃
VCC
Operating Voltage
-
6
V
ESD (Human Body Model)
ESD withstand capability (manikin)
-
2
KV
ESD (Electrified Device Mode type)
ESD withstand capability (Charged Device Model)
-
0.5
KV
Basic RF Characteristics
Parameter
Describe
Working frequency
2400MHz~2480MHz
BLE version
5.0
Data transfer rate
Typical value 1Mbps, maximum rate 2Mbps
Wi-Fi conduction parameters
Parameter
Min
Typical value
Max
Units
RF transmit power
-
-
7
dBm
Receive sensitivity@1Mbps
-
94
-
dBm

Product Overview

XDE033-SP-A0-MBis a cost-effective WIFI+BLE module developed by Xing Da Technology, which supports Ble dual-mode 5.1and IEEE 802.11 b/g/n protocol standard, supports lightweight TCP/IP protocol stack, and supports STA, AP and Direct mode. Users can use this mod to add networking capabilities to existing devices, or build standalone network controller.
